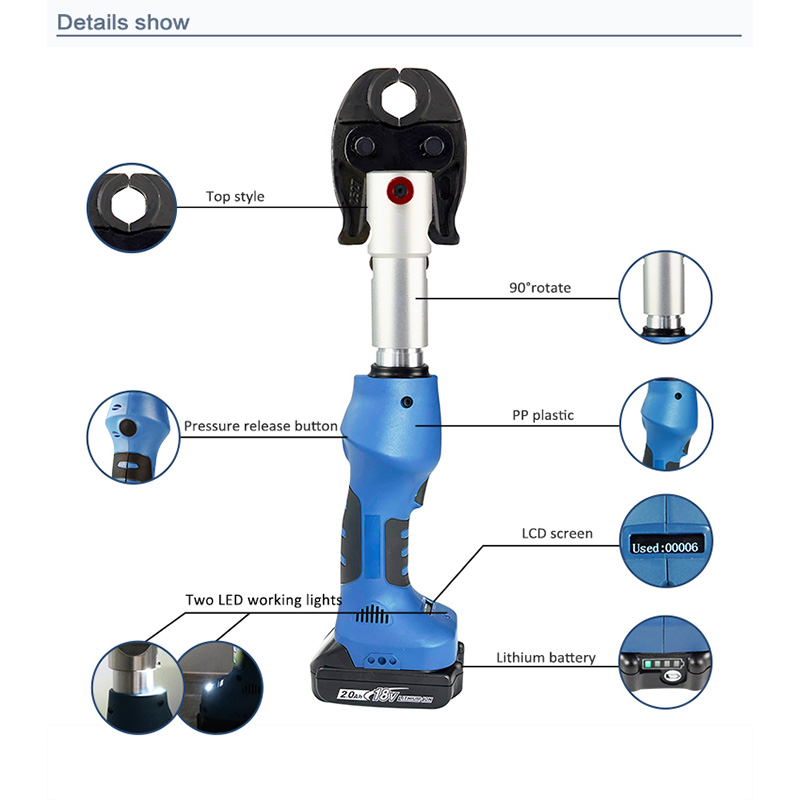

◢ Single stage system, when the pressure reaches set value, can automatically reset the piston
◢ The latch with a buckle to avoid device damage caused by misoperation
◢ Built-in MCU chip and storage unit, can record job data and prompt failure and maintenance

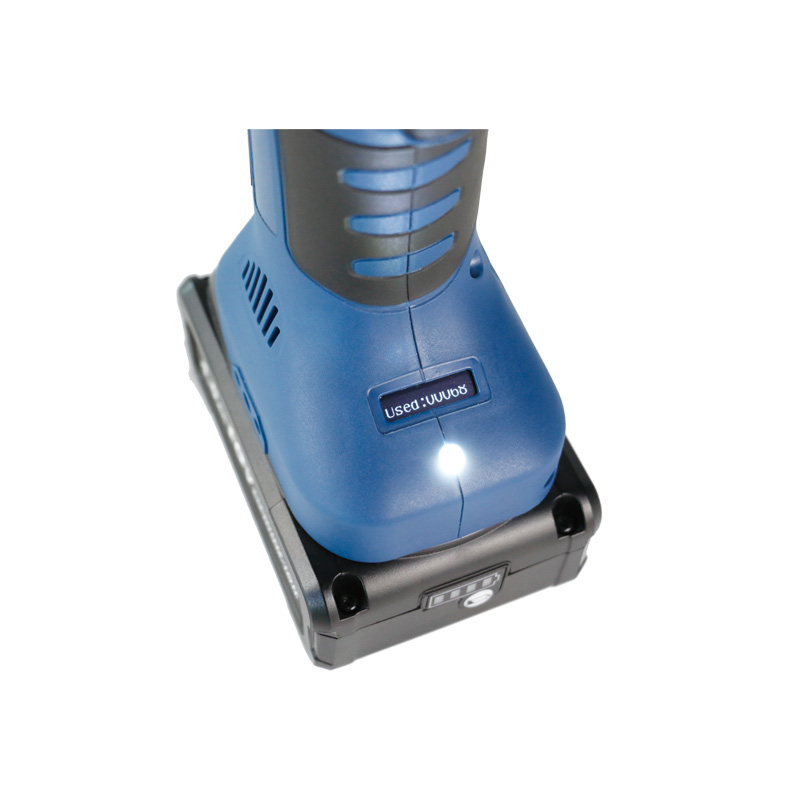

◢ LED light can meet the operation needs when light source is insufficient

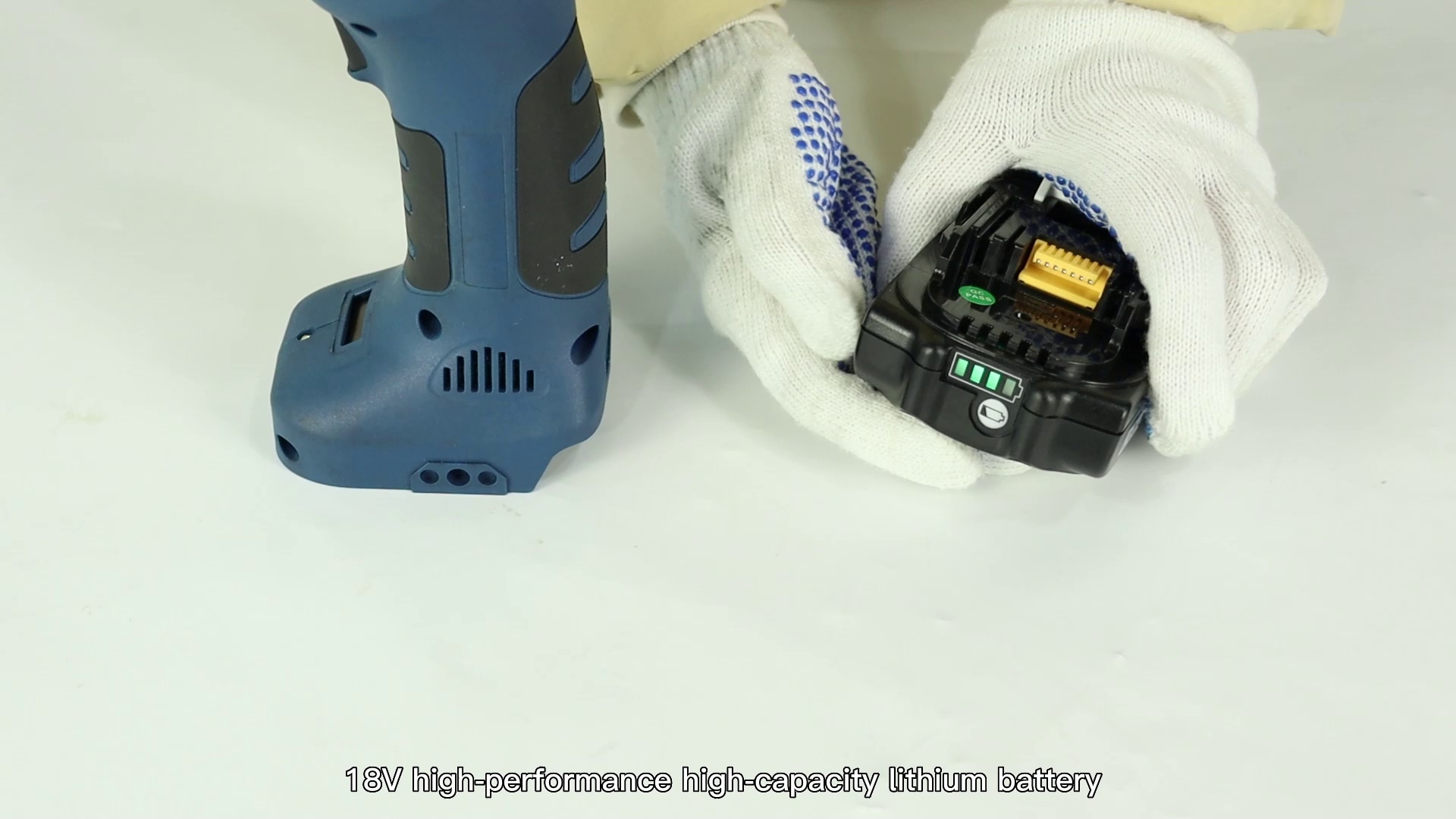

◢ 18V high-performance lithium battery withlong time high energy output
◢ High strength aluminum alloy body, light weight
◢ Ergonomic design, holding area is covered with rubber to avoid fatigue
| Model | EMP-2232 |
| Crimping Force | Max: Thin-walled stainless steel DN28 (thickness 1.5); Thin-walled copper tube D35 (thickness 1.5); Aluminum plastic composite pipe DN40 |
| Output | 22kN (standard force) |
| Stroke | 30mm |
| Oil Reservoir | 50ml |
| Net Weight | 1.8kg (without dies) |
| Gross Weight | 11.1kg |
| Dimensions | 43x10x9mm (without dies) |
| Packing Size | 59x52x14mm |
| Model | EMP-2232 |
| Crimping Force | Max: Thin-walled stainless steel DN28 (thickness 1.5); Thin-walled copper tube D35 (thickness 1.5); Aluminum plastic composite pipe DN40 |
| Output | 22kN (standard force) |
| Stroke | 30mm |
| Oil Reservoir | 50ml |
| Net Weight | 1.8kg (without dies) |
| Gross Weight | 11.1kg |
| Dimensions | 43x10x9mm (without dies) |
| Packing Size | 59x52x14mm |
◢ Single stage system, when the pressure reaches set value, can automatically reset the piston
◢ The latch with a buckle to avoid device damage caused by misoperation
◢ Built-in MCU chip and storage unit, can record job data and prompt failure and maintenance
◢ LED light can meet the operation needs when light source is insufficient
◢ 18V high-performance lithium battery withlong time high energy output
◢ High strength aluminum alloy body, light weight
◢ Ergonomic design, holding area is covered with rubber to avoid fatigue
