Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview

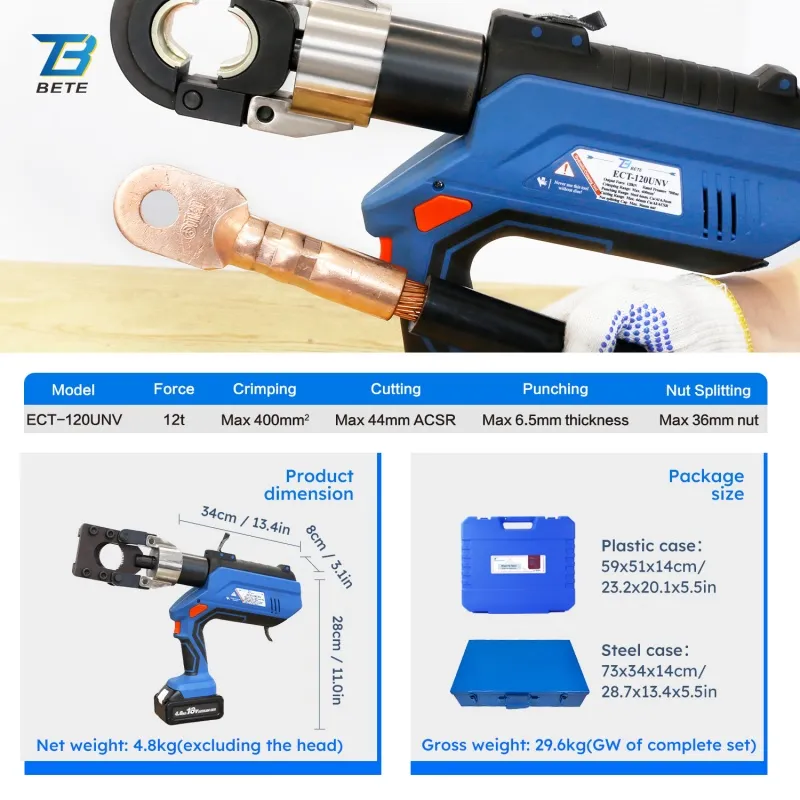

| Model | ECT-120UNV |
| Crimping Force | 12T |
| Rated Pressure | 700bar |
| Crimping Capacity | Cu400mm² / Al300mm² |
| Punching Capacity |
Angle Steel: 6mm thickness |
| Busbar Cu/Al: Max. 6. 5mm thickness | |
|
Cutting Capacity
|
Max. 44mm Cu/Al/ACSR |
| Nut Splitting Capacity | Max. 36mm Nut |
| Packing | Plastic Case |

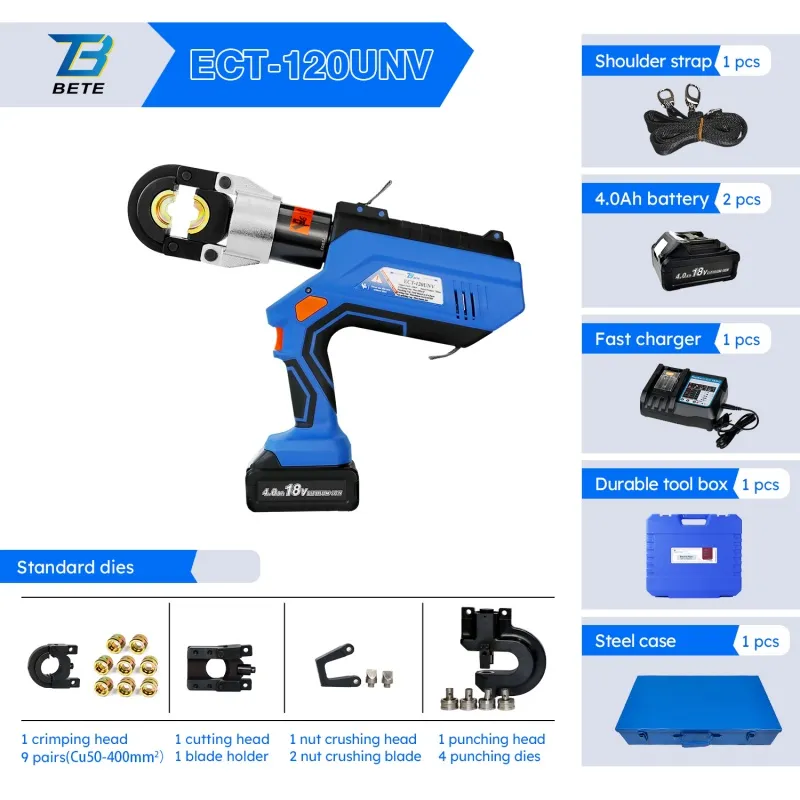

| Standard Dies | Crimping dies Cu50-400 mm², punching dies 10. 5, 13. 5, 17. 5, nut splitting blade, |
| blade holder, cutting head |
Features:

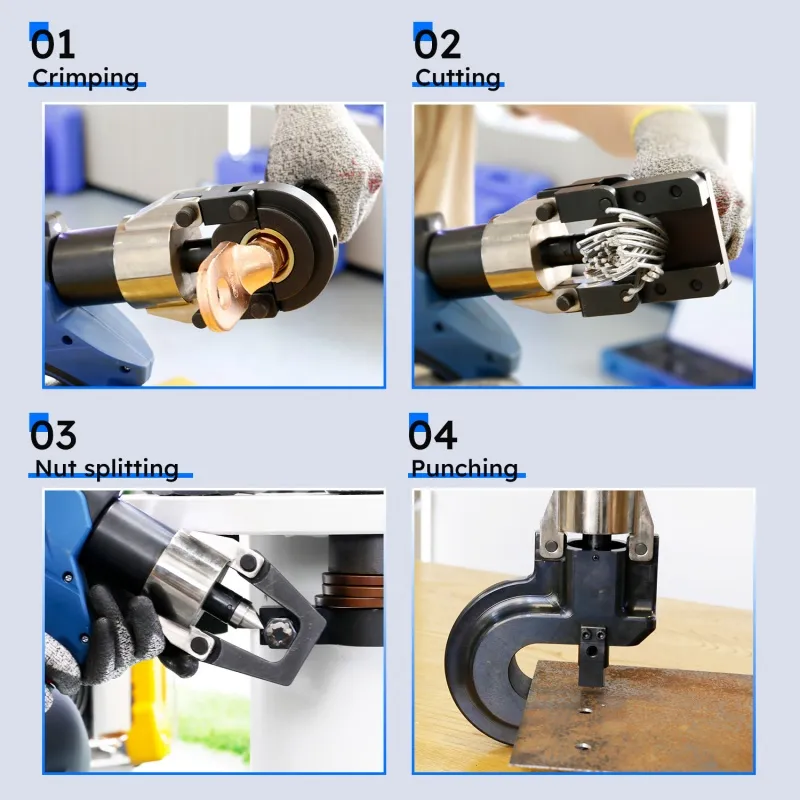

1. One tool for multifunction, crimping, cutting, punching and nut splitting
2. Flip top style for easy access to the fitting
3. Crimping head rotates 360°

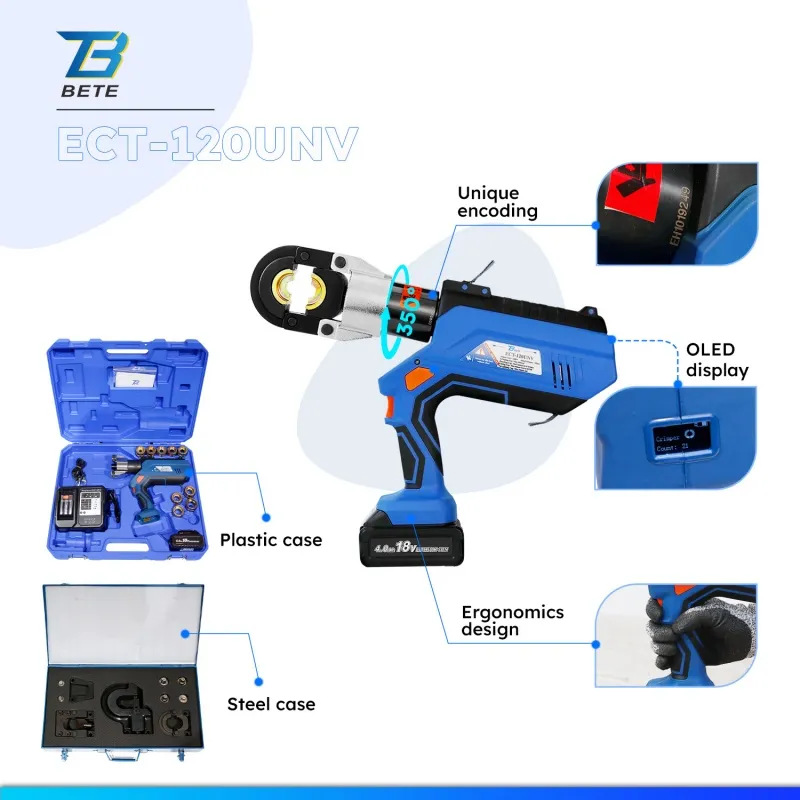

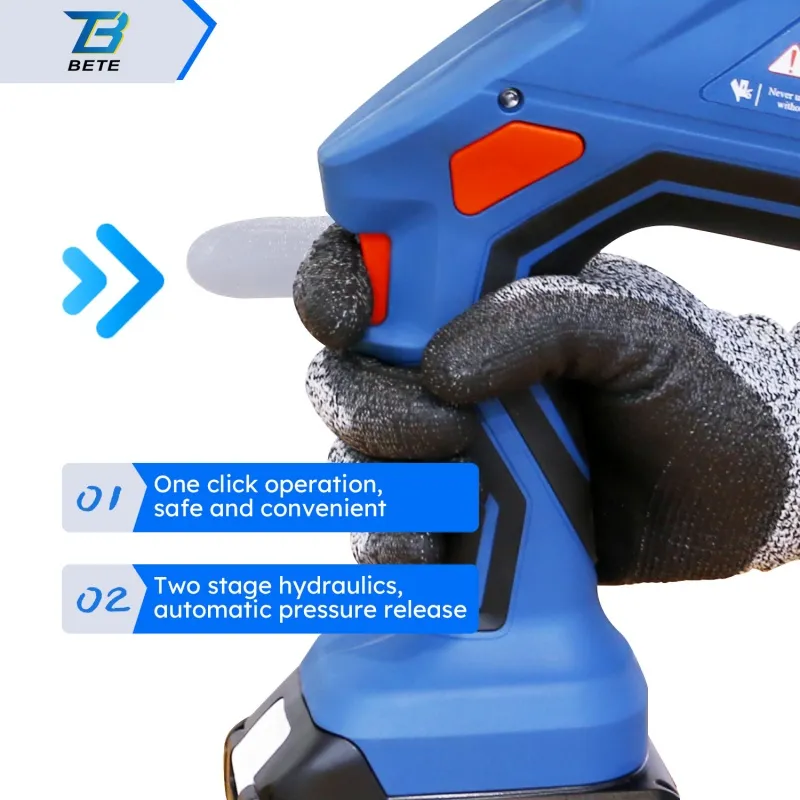

4. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information
5. High-capacity 18V power display lithium battery with fast charger
6. Equipped with LED light for dark place
7. External LCD screen, easy to read the number of crimping
8. Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance
2. Flip top style for easy access to the fitting
3. Crimping head rotates 360°
4. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information
5. High-capacity 18V power display lithium battery with fast charger
6. Equipped with LED light for dark place
7. External LCD screen, easy to read the number of crimping
8. Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance
Parameters
| Model | ECT-120UNV |
| Crimping Force | 12T |
| Rated Pressure | 700bar |
| Crimping Capacity | Cu400mm² / Al300mm² |
| Punching Capacity |
Angle Steel: 6mm thickness |
| Busbar Cu/Al: Max. 6. 5mm thickness | |
|
Cutting Capacity
|
Max. 44mm Cu/Al/ACSR |
| Nut Splitting Capacity | Max. 36mm Nut |
| Packing | Plastic Case |
| Standard Dies | Crimping dies Cu50-400 mm², punching dies 10. 5, 13. 5, 17. 5, nut splitting blade, |
| blade holder, cutting head |
Features
1. One tool for multifunction, crimping, cutting, punching and nut splitting
2. Flip top style for easy access to the fitting
3. Crimping head rotates 360°
4. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information
5. High-capacity 18V power display lithium battery with fast charger
6. Equipped with LED light for dark place
7. External LCD screen, easy to read the number of crimping
8. Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance
2. Flip top style for easy access to the fitting
3. Crimping head rotates 360°
4. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information
5. High-capacity 18V power display lithium battery with fast charger
6. Equipped with LED light for dark place
7. External LCD screen, easy to read the number of crimping
8. Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance
Application
