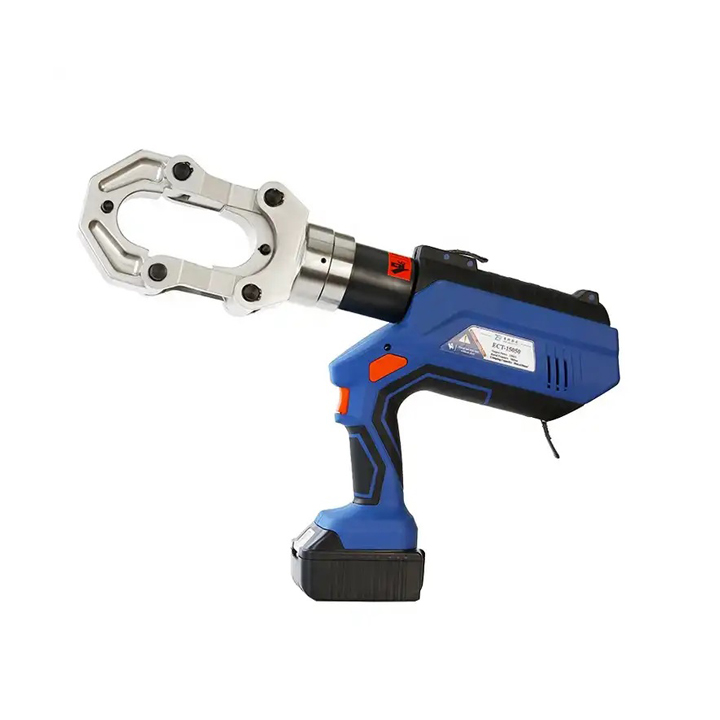

ECT-15050 Electric Crimper 15t

1.Crimping Force：15t

2.Crimping head rotates 360°

3.Crimping capacity：Max 630mm²

4.Standard Dies：Die adapter, (12T) Cu50-400mm² , (15T) Cu500-630mm²

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Overview

Model	ECT-15050
Output Force	15T
Stroke	50mm
Rated Pressure	700bar
Crimping Capacity	Cu630mm² / Al500mm²
Weight	9.5kg
Packing	Plastic Case
Standard Dies	Die adapter, Cu50-400mm²

Features:
1. Big jaw for larger crimping capacity
2. Use die adapter for 12T crimping dies
3. Crimping head rotates 360°
4. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information
5. High-capacity 18V power display lithium battery with fast charger
6. Equipped with LED work lights to make work easier
7.External LCD screen, easy to read the number of crimping
8.Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance

Parameters

Model	ECT-15050
Output Force	15T
Stroke	50mm
Rated Pressure	700bar
Crimping Capacity	Cu630mm² / Al500mm²
Weight	9.5kg
Packing	Plastic Case
Standard Dies	Die adapter, Cu50-400mm²

Features

1. Big jaw for larger crimping capacity
2. Use die adapter for 12T crimping dies
3. Crimping head rotates 360°
4. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information
5. High-capacity 18V power display lithium battery with fast charger
6. Equipped with LED work lights to make work easier

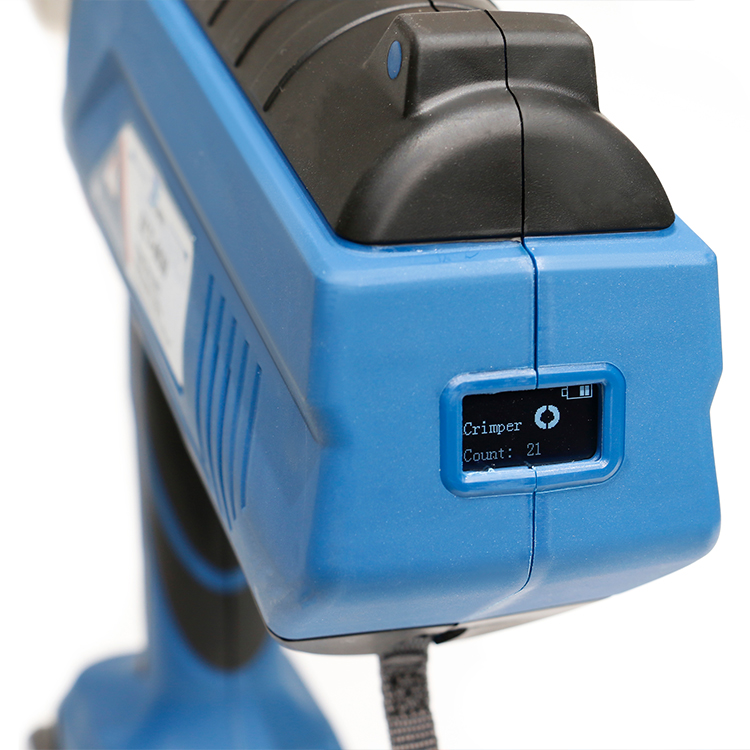

7.External LCD screen, easy to read the number of crimping
8.Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance
