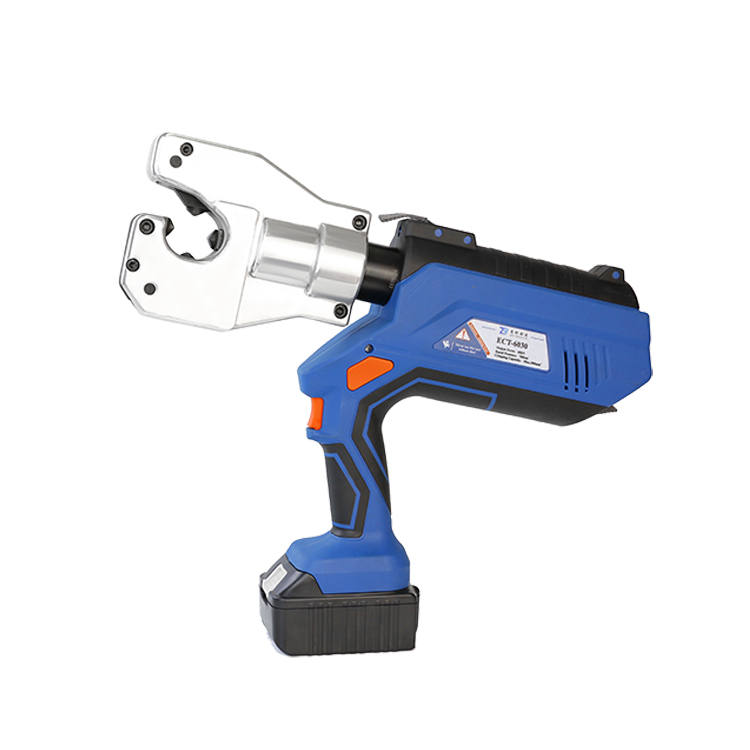

ECT-6030 Dieless Battery Terminal Crimper 6t

1.Crimping head rotates 360°

2.Automatic pressure release

3.Crimping capacity:max 300mm²

4.No need to change dies

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Overview

Model	ECT-6030
Crimping Force	6t
Rated Pressure	700bar
Stroke	32mm
Crimping Capacity	Cu300mm² / Al240mm²
Weight	5.2kg

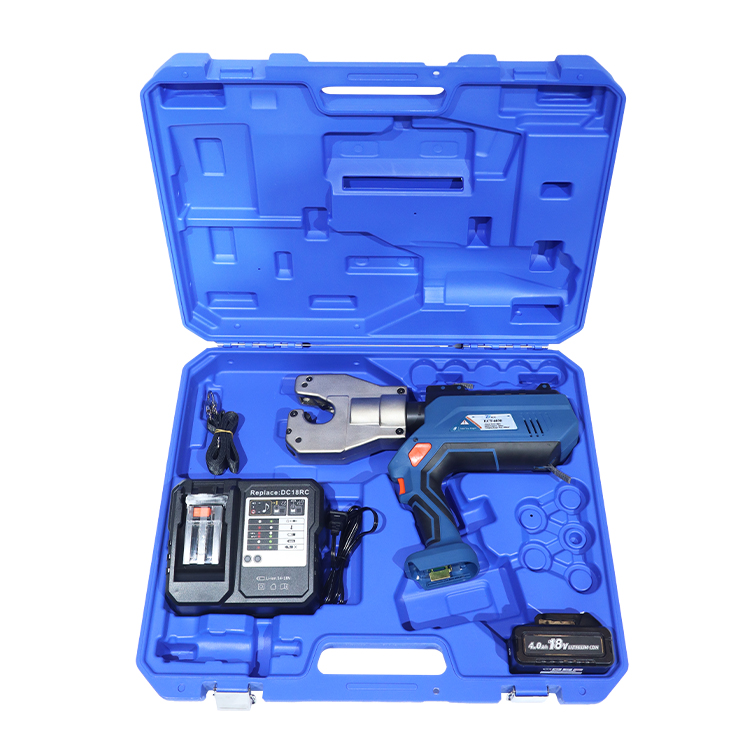

Packing	Plastic Case

Product Features
1. Direct point pressure, without changing die

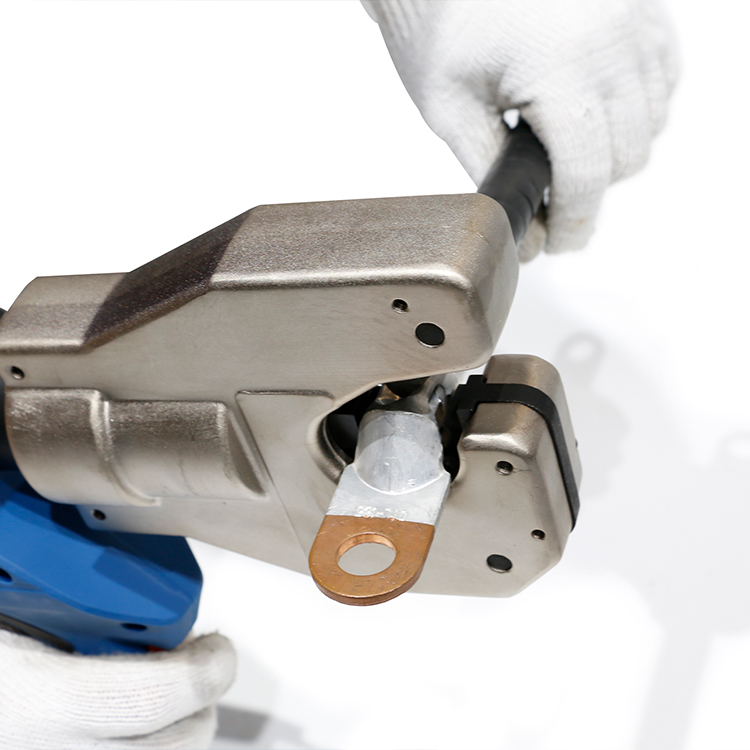

2. Suitable for crimping pipe cable terminals and splice pipe terminals, pipe cable terminals and splice pipe terminals for fine
stranded wires, and some non-standard fittings

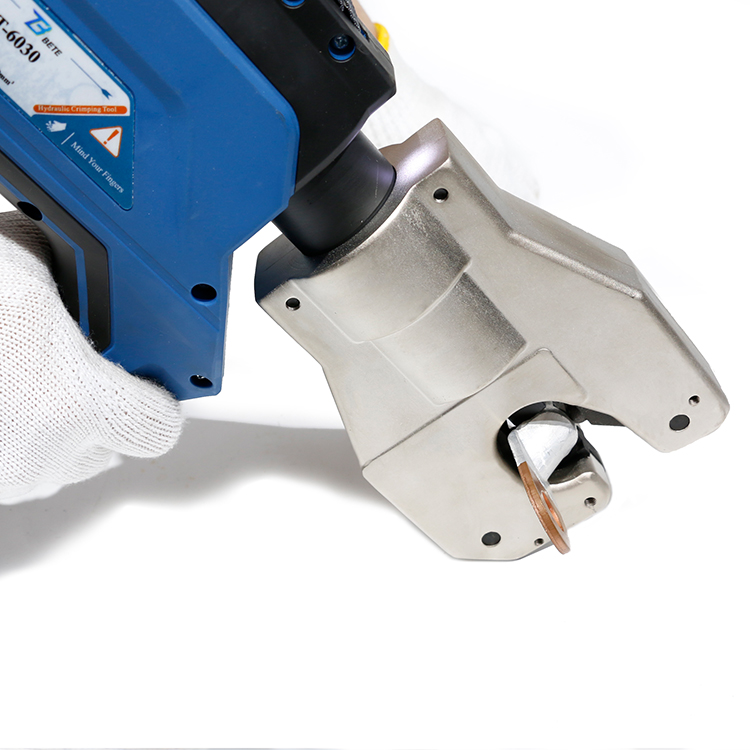

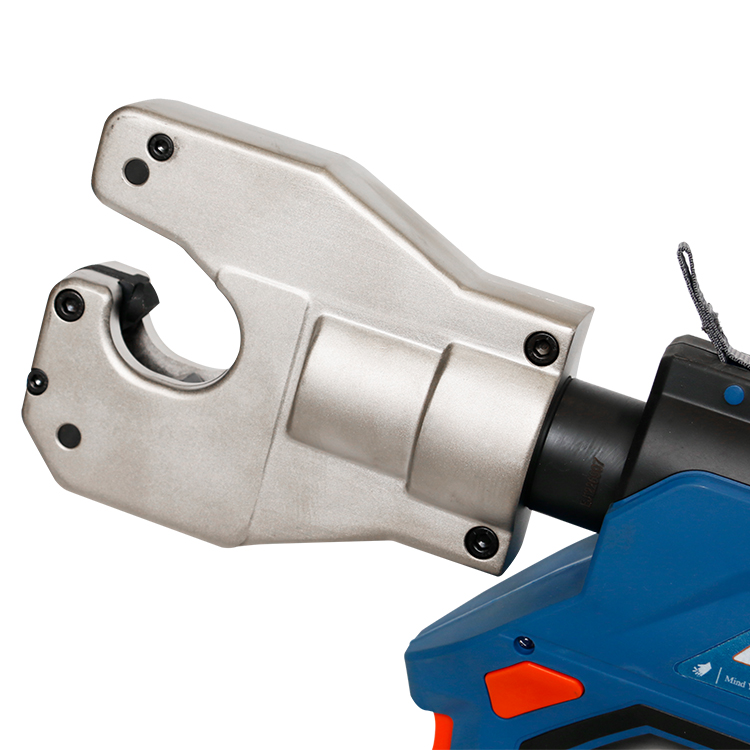

3. Crimping head rotates 360°
4. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information
5. High-capacity 18V power-on display lithium battery with fast charger
6. Equipped with LED work lights to make work easier
7. External LCD screen, easy to read the number of crimping
8. Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance

Parameters

Model	ECT-6030
Crimping Force	6t
Rated Pressure	700bar
Stroke	32mm
Crimping Capacity	Cu300mm² / Al240mm²
Weight	5.2kg
Packing	Plastic Case

Features

1. Direct point pressure, without changing die
2. Suitable for crimping pipe cable terminals and splice pipe terminals, pipe cable terminals and splice pipe terminals for fine
stranded wires, and some non-standard fittings
3. Crimping head rotates 360°
4. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information
5. High-capacity 18V power-on display lithium battery with fast charger
6. Equipped with LED work lights to make work easier
7. External LCD screen, easy to read the number of crimping
8. Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance

Application
