Mini CAM Acoustic Imager
1.Intelligent analytics
2.Ultrasonic monitoring
3.128 digital microphones
4.Support PRPD function
5.Remote upgrade, type-C port
6.Easily display acoustic and thermal imaging together
7.Batteries can be replaced manually, PD fast charging
8.Optional thermal camera, support hot swapping
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Overview
Overview
This rugged, versatile tool can help you quickly and easily identify a variety of undesirable industrial conditions, like electric faults, gas leaks. With pinpoint accuracy the Mini CAM allows you to instantly see audible and ultrasonic noises that are hard to detect, With 128 Digital Microphones, it will help you clearly see what you've been missing.
By adding an optional thermal camera part, the Mini CAM can change functions between acoustic imaging and thermal imaging, making diagnosis more comprehensive and efficient.
Parameters
| Technical data of acoustic imager | |||
| Sensor(microphone) | 128 | Video format | MP4 |
| Effective frequency range | 2-55kHz
(support extensions)
|
Storage capacity | 64GB, Max 128GB |
| Microphone sensitivity | -25 dBFS | Digital export | USB 3.0 Type-C |
| Signal-To-Noise ratio |
64.3 dB(A)
|
Display | 7 inch, 1280x800 resolution |
| Camera frame speed |
30 FPS
|
Battery operation time | 5 hours |
| Detection distance | 0.3m-100m
(due to real test situation)
|
Operating temperature | -20℃ ~ 50℃ |
| Due to real test situation | Size | 246mm*150mm*45mm | |
| Image format | JPG | Weight | 1.25kg |
| Technical data of optional thermal camera | |
| Optical zoom | Adjustable |
| Resolution | 640*480 |
| Thermal sensitivity NETD | 25mK@30℃ |
| Temperature measurement range | -20℃ to 650℃ |
| Temperature measurement accuracy | ±2℃ or ±2% |
| Emissivity | 0.1-1.00 adjustable, 0.01 step |
Features
Visualize what you can hear and what you can't
When an electric arc occurs, it results in ultrasonic wave element, higher than the audible frequency. Therefore, in noisy environment, ultrasonic wave element can be measured to determine whether or not electric arc have occurred and where they have occurred.

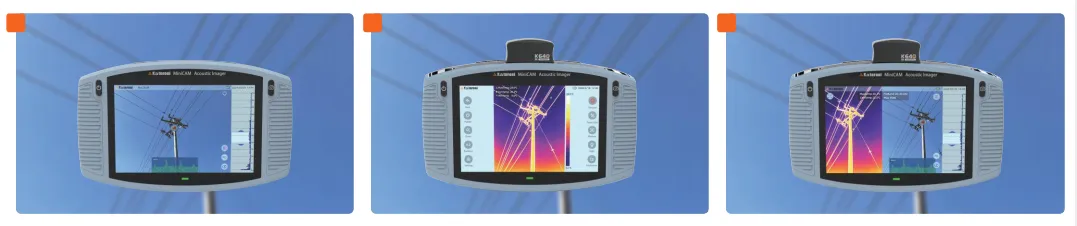

Make your online diagnosis more efficient
 |
||
|
PD Detection Mode: Easily to locate PD point and help you diagnose with PRPD function.
|
Thermal Detection Mode: Quickly to locate where is unusual temperature part.
Note: Need to use optional thermal camera
part.
|
Dual Display Mode: Power your test in once test.
Note: Need to use optional thermal camera
part.
|
 |
||
|

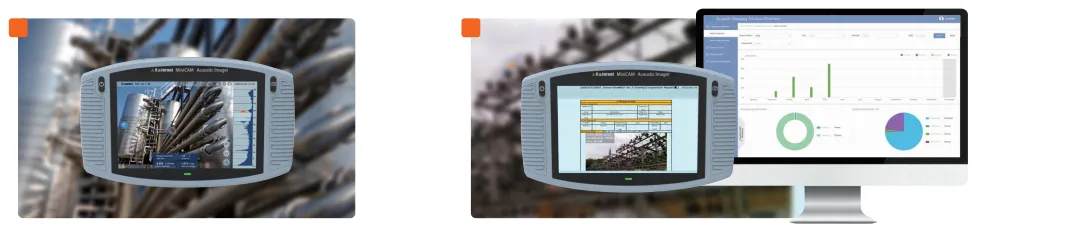

Gas Leakage Detection Mode: Making it incredibly simple to detect compressed gas leaks.
|
Data Analysis: Manage your inspection tasks, automatically output test reports based on tasks.
|
|
