MiniCAM2 Acoustic Imager
New-generation acoustic imager adopts microphone array beamforming technology to pinpoint electrical discharge, mechanical abnormal noise and gas leakage.
It enables long-distance non-contact live-line inspection for rapid defect detection. Equipped with HD camera and external infrared module, it supports simultaneous acoustic-thermal dual-mode multi-dimensional equipment diagnosis.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Overview

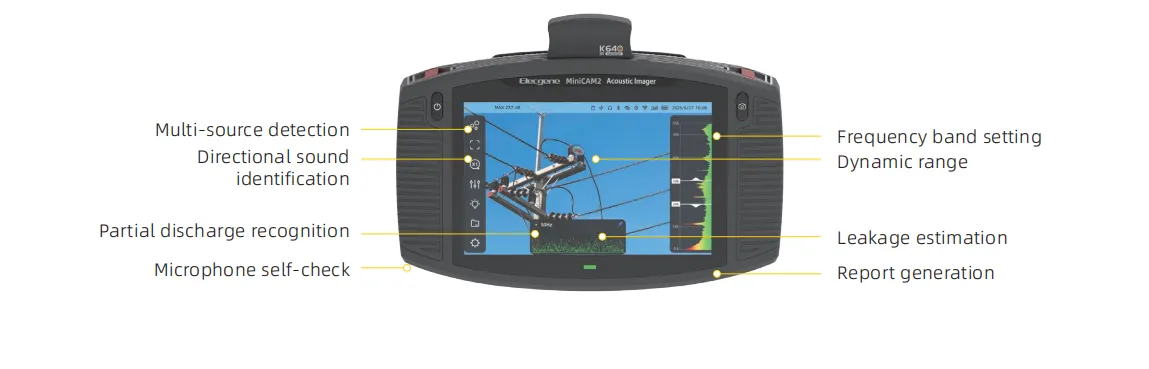

Features
 |
 |
|
|

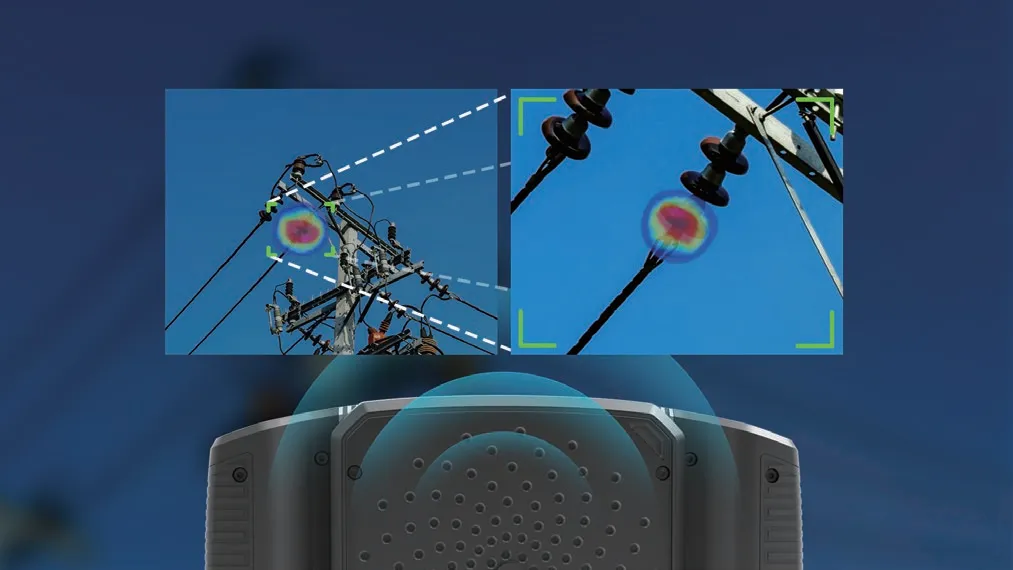

Dynamic Field of View
|

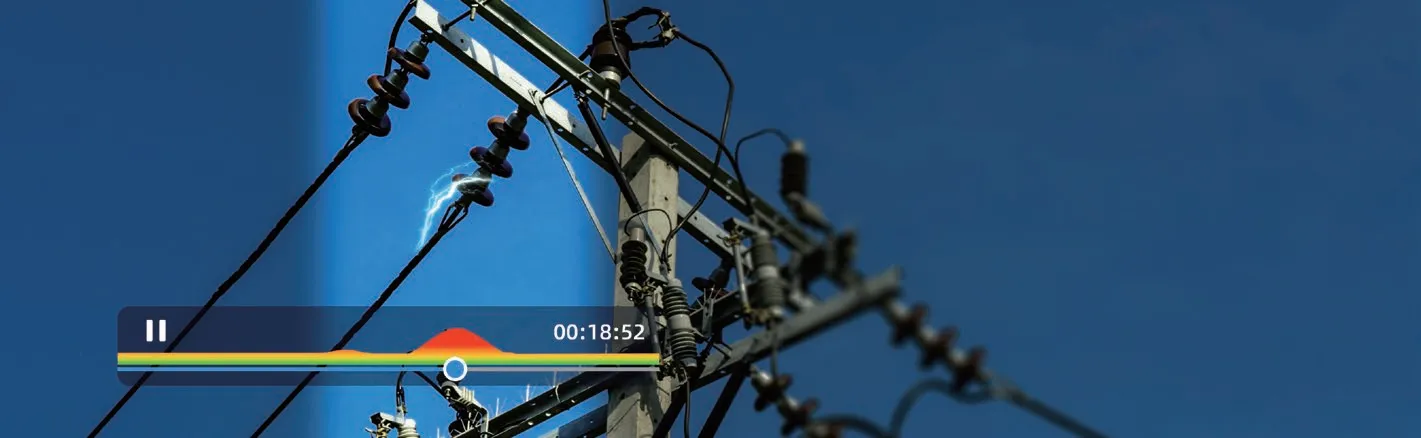

Video Key Frames for Rapid Fault Diagnosis
|
|
 |
 |
|
|

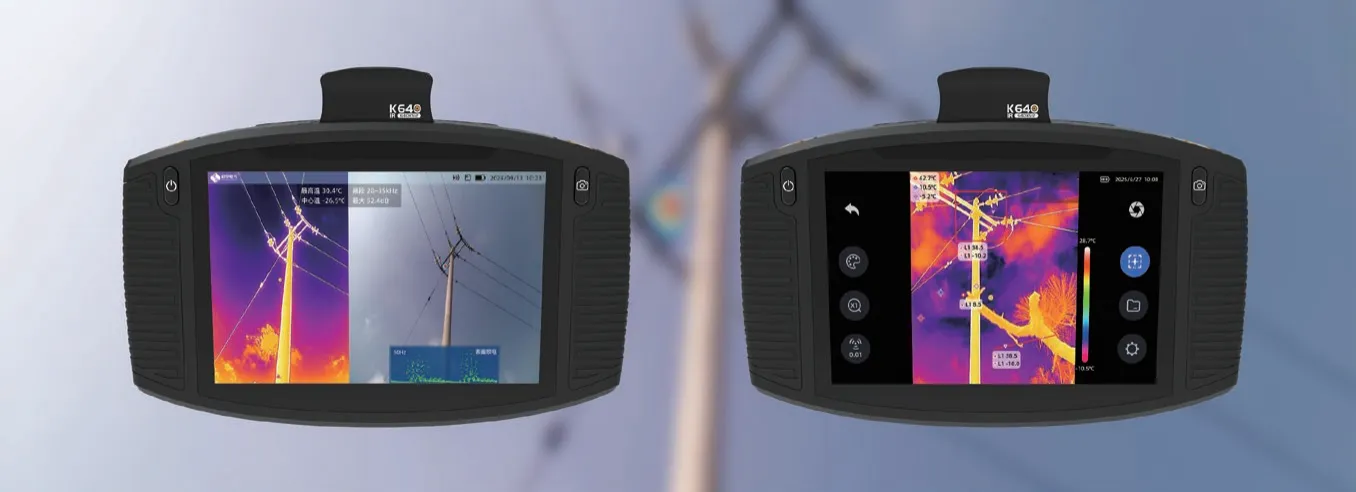

Acoustic-Thermal Simultaneous Display & Recording
|

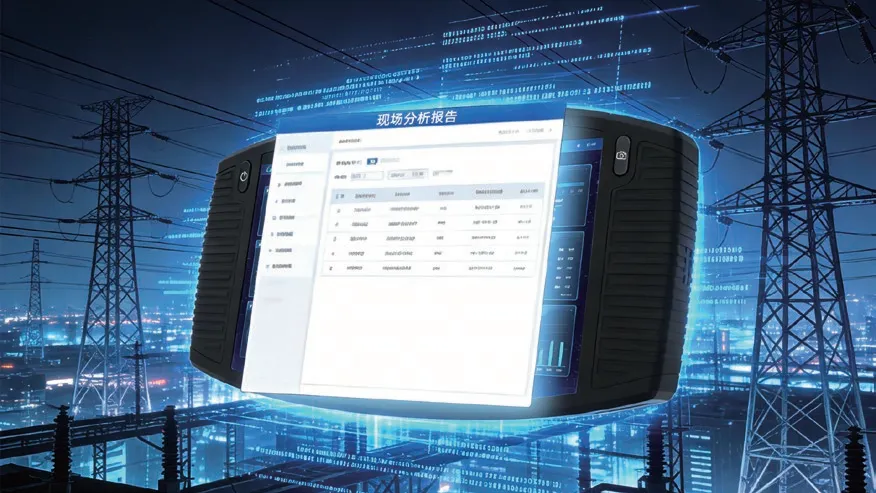

On-site Report
|
|
 |
 |
|
|

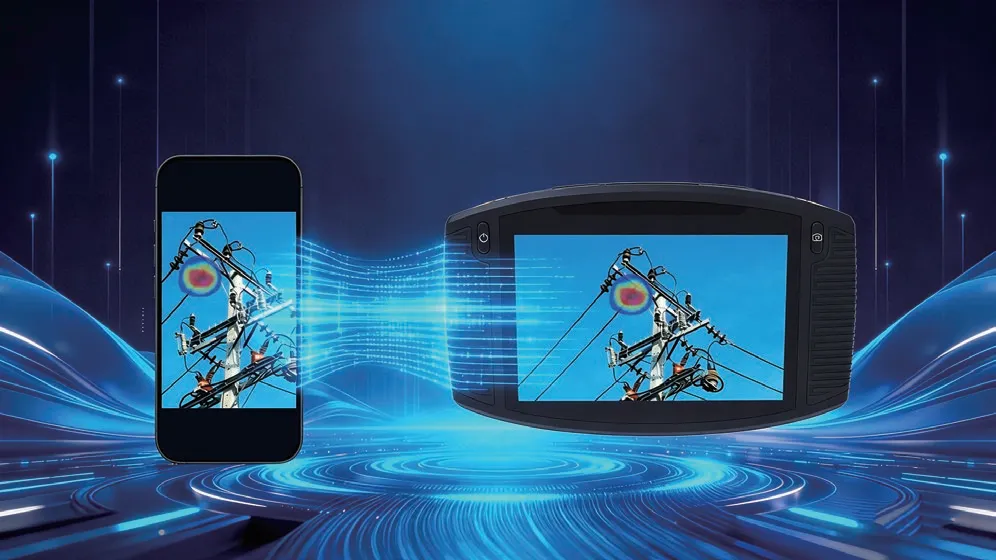

Mobile Data Sharing & Platform Device Interconnection
|

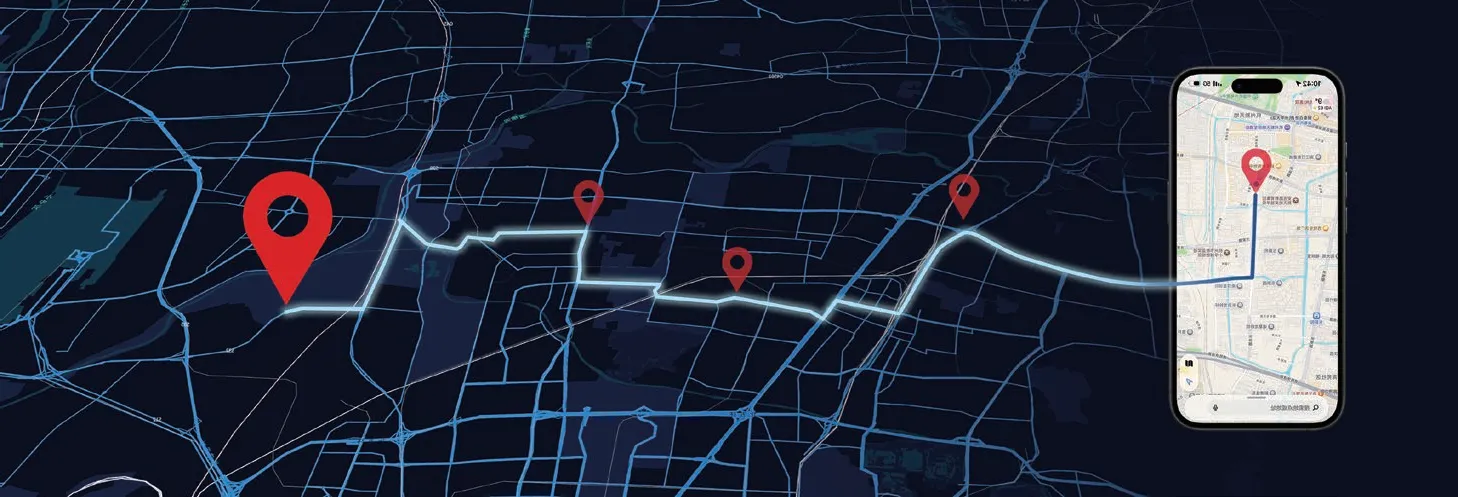

Patrol Route Planning & Positioning Navigation
|
|

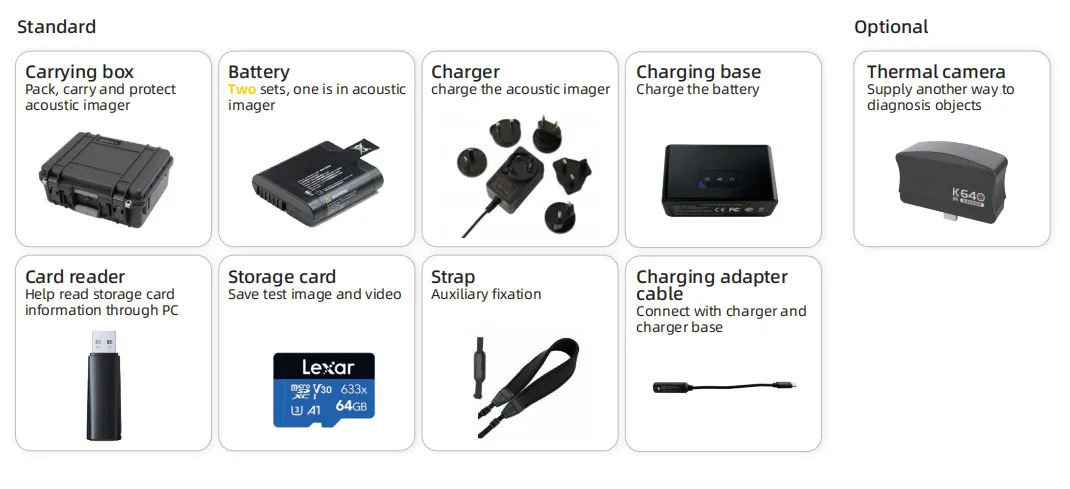

Accessories
Technical data of acoustic imager
|
MiniCAM
|
MiniCAM2
|
|
|
Microphone quantity
|
128
|
168 |
|
Microphone frequency band
|
2-55 kHz
|
2-100 kHz
|
|
Camera resolution
|
8 megapixels
|
13 megapixels
|
|
Frame rate
|
25 Hz
|
30 Hz
|
|
Wi-Fi
|
Wi-Fi 5
|
Wi-Fi 6
|
|
Positioning
|
Not supported
|
Supported
|
|
Network
|
Not supported
|
Supported (optional 5G)
|
|
Data export
|
USB-C
|
USB-C
|
|
Video output
|
Optional
|
USB-C
|
|
Display type
|
Capacitive touch screen
|
|
|
Display resolution
|
1280 × 800
|
|
|
Brightness
|
Adjustable
|
|
|
Storage capacity
|
64 GB
|
|
|
Bluetooth
|
5.2
|
|
|
Cloud service
|
Support
|
|
|
Hotspot
|
Support
|
|
|
Battery life
|
4 h
|
|
|
Dimension
|
246×150×46 mm
|
|
|
Weight (with battery)
|
1250 g
|
|
|
IP rating
|
IP 54
|
|
|
Tripod mount
|
1/4" interface
|
|
|
Language
|
Chinese, English, Spanish, French, Russian, Portuguese, Japanese, Korean
|
|
|
Explosion-proof
|
Support, optional
|
|
Supports infrared
|
Infrared
|
Optional
|
|
Resolution
|
640 × 512
|
|
Frame rate
|
25 Hz
|
|
Wave band
|
8–14 μm
|
|
Thermal sensitivity netd
|
25 mK
|
|
Temperature measurement range
|
-20°C to 650°C
|
