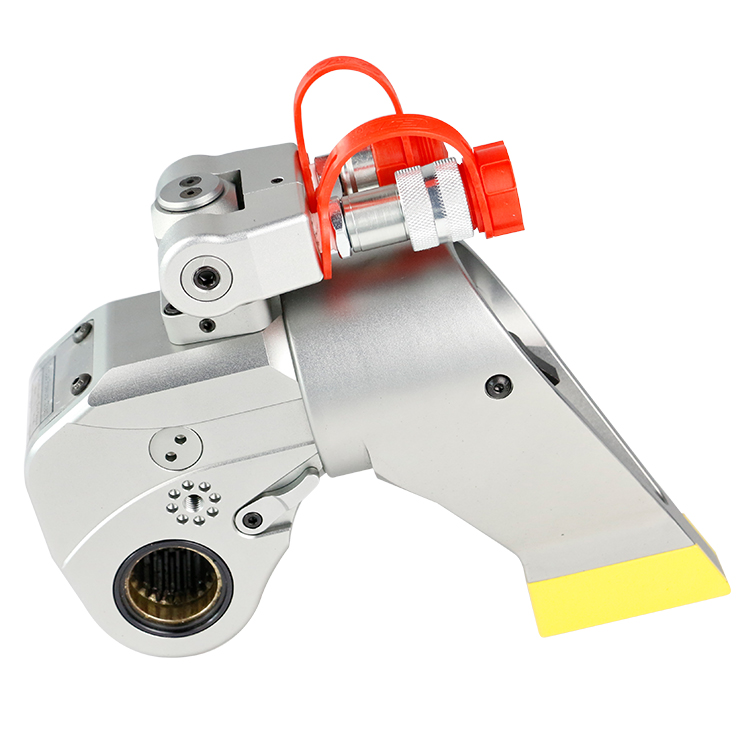

MXTA Series of Driving Type Hydraulic Torque Wrench
MXTA Series of Driving Type Hydraulic Torque Wrench
MXTA Series of Driving Type Hydraulic Torque Wrench
MXTA Series of Driving Type Hydraulic Torque Wrench
MXTA Series of Driving Type Hydraulic Torque Wrench
MXTA Series of Driving Type Hydraulic Torque Wrench

MXTA Series of Driving Type Hydraulic Torque Wrench

1.Max working pressure up to 70Mpa

2.Hose connector rotates 360°*180°

3.High strength，high toughness

4.New type anti - loose joints

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview

Features:

1. Max. working pressure up to 70Mpa, accuracy up to±3%

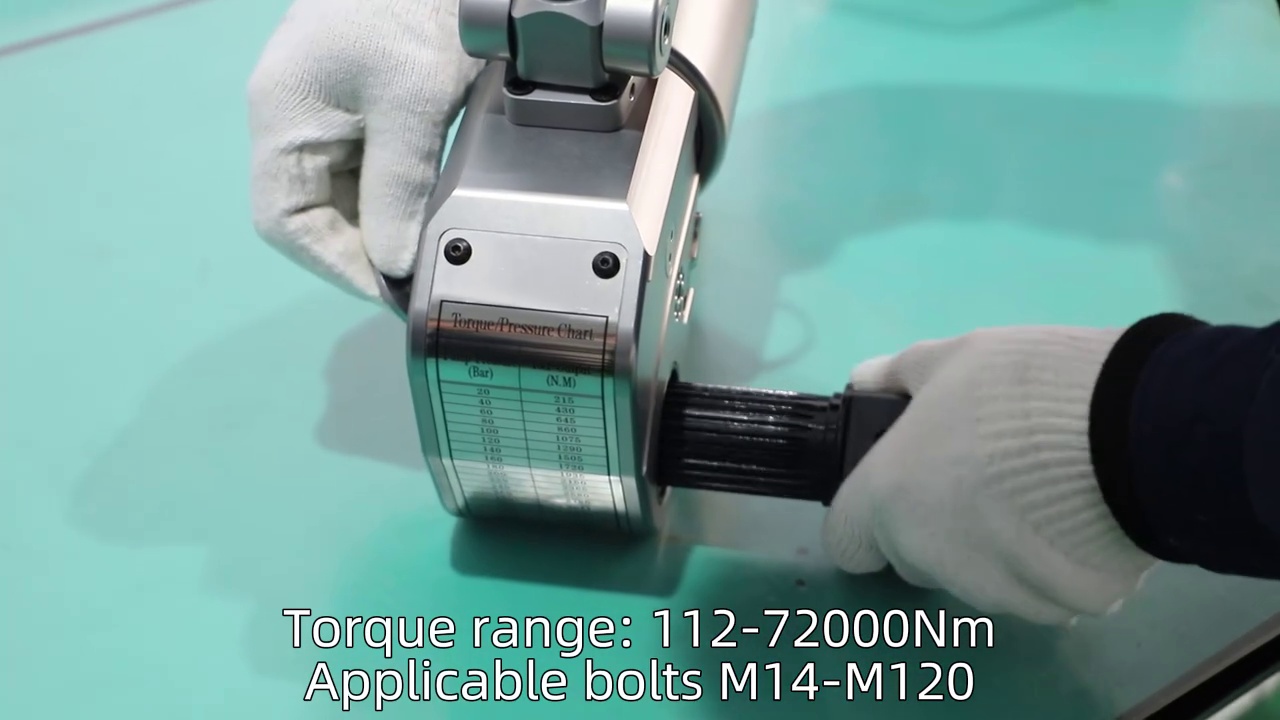

2. A total of ten models from 112-72000Nm, the most complete models and widest coverage of bolts in the market

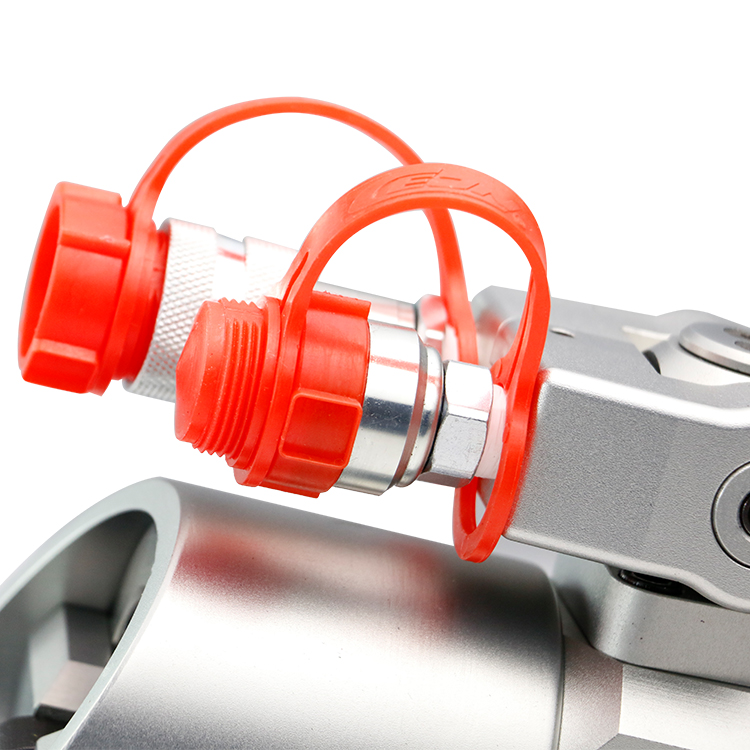

3. Hose connector rotates 360°*180°, used without limited space
4. Square driver connects with high strength sockets, bolts used for a wide range of applications
5. The trigger type lock can place the 360°fine-tuning type reaction arm on any fixed fulcrum
6. Aluminum and titanium alloy forming body, high strength, high toughness
7. New type anti - loose joints to ensure the oil flows smoothly

Model

 Torque Range(N.m) Bolt Spec.(M) Weight(kg) L1 L2 H1 H2 H3 H4 R1 R2 Drive Shaft
07 MXTA 112-1120 14-30 1.8 110.8 139.3 42 65.8 76.2 108.1 20.5 68.3 ¾″
1 MXTA 183-1837 16-36 2 130 182 50 77 99 134 26 99 ¾″
3 MXTA 451-4512 22-48 4 166 241 68 95 136 170 34 134 1″
5 MXTA 752-7528 27-56 7 198 281 80 123 155 198 39 135 1–⅛″
8 MXTA 1078-10780 30-64 9.1 213 308 90 130 171 216 47 171 1–¼″
10 MXTA 1551-15516 36-72 13.1 231 336 100 141 187 230 51 174 1–½″
15 MXTA 2062-20627 39-80 18 270 400 110 179 201 244 55 195 2″
20 MXTA 2666-26664 42-90 25 285 423 125 188 222 262 60 228 2″
25 MXTA 3472-34725 48-100 31 314 464 137 205 255 295 67 251 2–½″
35 MXTA 4866-48666 64-120 45 355 489 153 217 290 330 79 271 2–½″
50 MXTA 7200-72000 72-125 85 386 516 161 223 307 352 81 259

2–½″

Parameters
Model Torque Range(N.m) Bolt Spec.(M) Weight(kg) L1 L2 H1 H2 H3 H4 R1 R2 Drive Shaft
07 MXTA 112-1120 14-30 1.8 110.8 139.3 42 65.8 76.2 108.1 20.5 68.3 ¾″
1 MXTA 183-1837 16-36 2 130 182 50 77 99 134 26 99 ¾″
3 MXTA 451-4512 22-48 4 166 241 68 95 136 170 34 134 1″
5 MXTA 752-7528 27-56 7 198 281 80 123 155 198 39 135 1–⅛″
8 MXTA 1078-10780 30-64 9.1 213 308 90 130 171 216 47 171 1–¼″
10 MXTA 1551-15516 36-72 13.1 231 336 100 141 187 230 51 174 1–½″
15 MXTA 2062-20627 39-80 18 270 400 110 179 201 244 55 195 2″
20 MXTA 2666-26664 42-90 25 285 423 125 188 222 262 60 228 2″
25 MXTA 3472-34725 48-100 31 314 464 137 205 255 295 67 251 2–½″
35 MXTA 4866-48666 64-120 45 355 489 153 217 290 330 79 271 2–½″
50 MXTA 7200-72000 72-125 85 386 516 161 223 307 352 81 259 2–½″

Features

Features:

1. Max. working pressure up to 70Mpa, accuracy up to±3%
2. A total of ten models from 112-72000Nm, the most complete models and widest coverage of bolts in the market
3. Hose connector rotates 360°*180°, used without limited space
4. Square driver connects with high strength sockets, bolts used for a wide range of applications
5. The trigger type lock can place the 360°fine-tuning type reaction arm on any fixed fulcrum
6. Aluminum and titanium alloy forming body, high strength, high toughness
7. New type anti - loose joints to ensure the oil flows smoothly
Application
