Square Drive Hydraulic Torque Wrench Systems
Complete hydraulic bolting solutions including square drive torque wrenches, electric pumps and heavy-duty sockets for industrial tightening applications.
1.High Torque Output
2.Compact & Durable Design
3.Compatible Hydraulic Power System
4.Suitable for Heavy-duty Industrial Bolting
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Overview
Product Details
Section 1 : Hydraulic Torque Wrenches

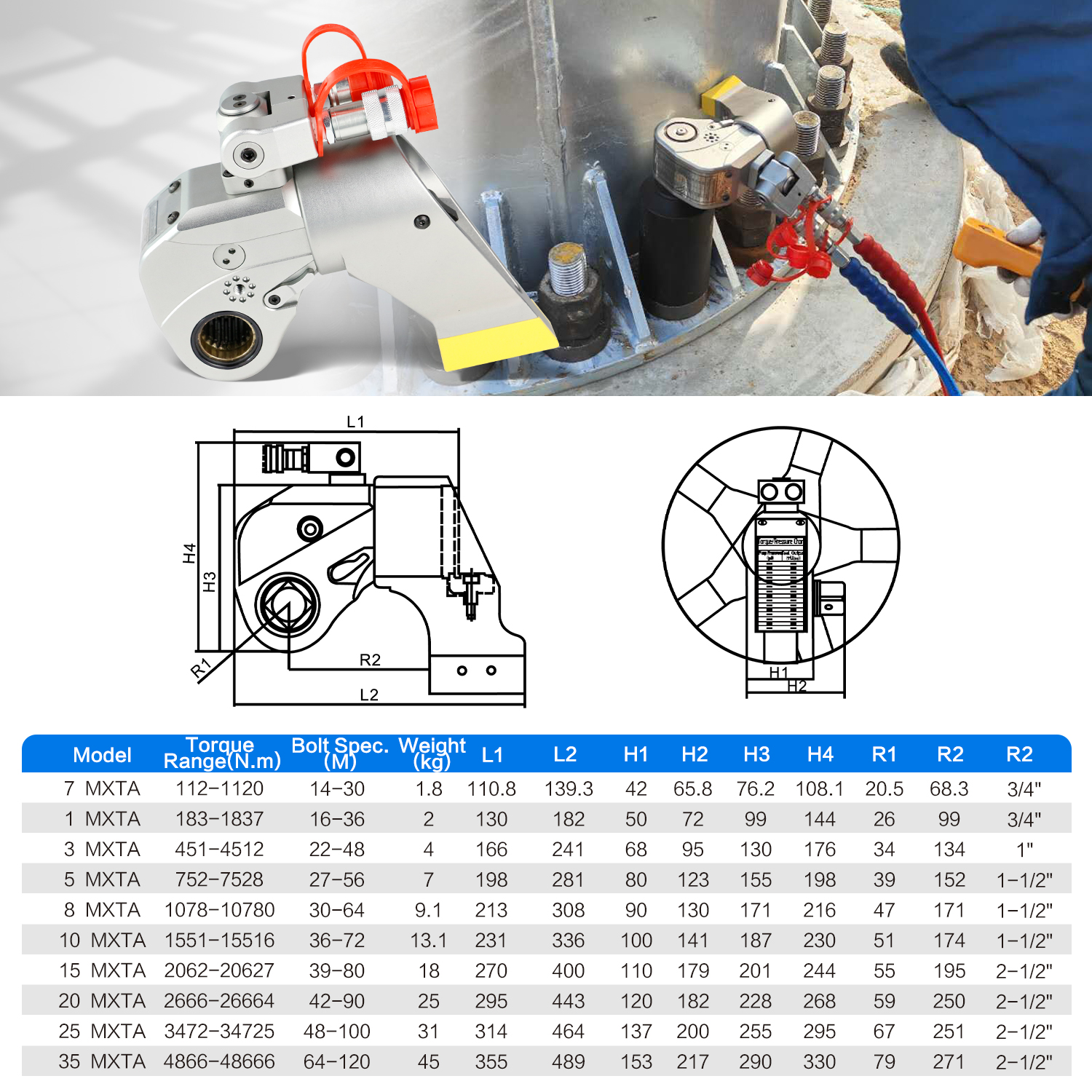

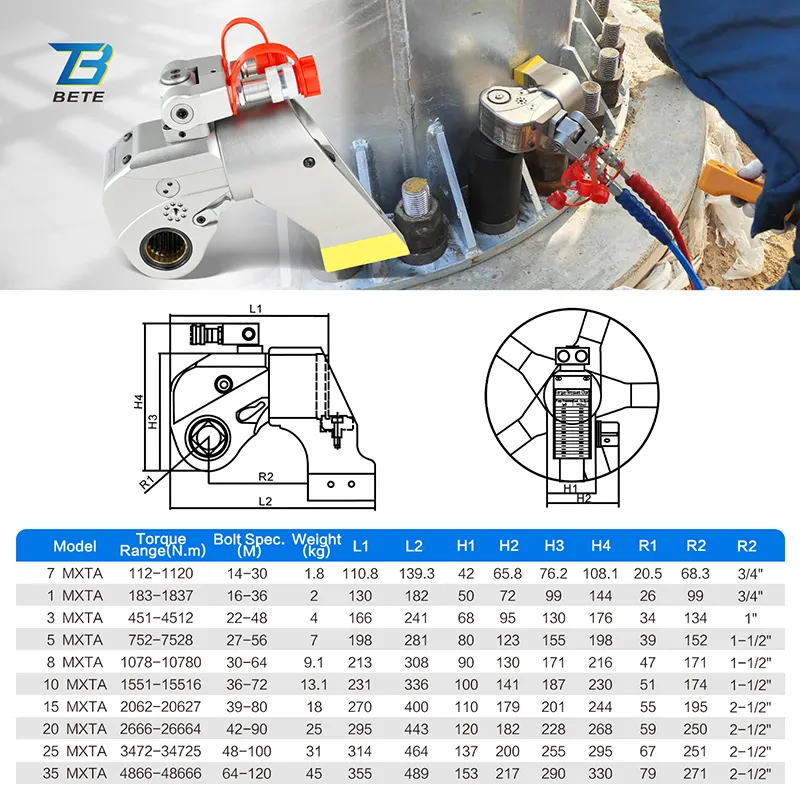

MXTA Series Of Driving Type Hydraulic Torque Wrench
1.Max working pressure up to 70Mpa, accuracy up to ±3%
2.Full range models from 112Nm to 72000Nm which can cover all size bolts in the market

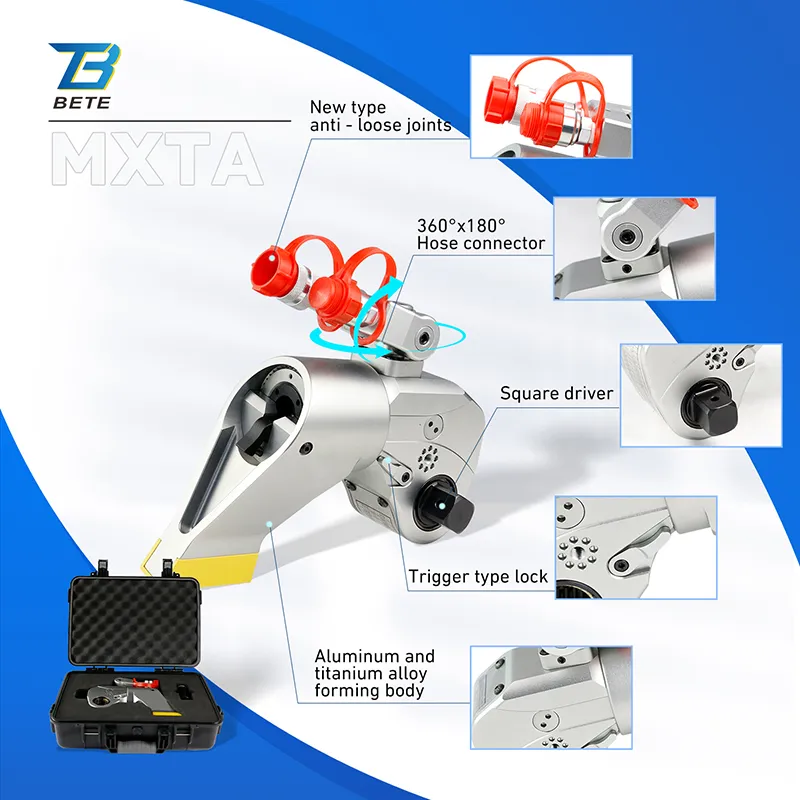

3.Hose connector rotates 360° x180°, used without limited space
4.Square driver connects with high strength sockets, bolts used for a wide range of applications
5.The trigger type lock can place the 360° fine-tuning type reaction arm on any fixed fulcrum
6.Aluminum and titanium alloy forming body, high strength, high toughness
7.New type anti-loose joints to ensure the oil flows smoothly
|
Model
|
Torque Range(N.m)
|
Bolt Spec.(M)
|
Weight(kg)
|
L1
|
L2
|
H1
|
H2
|
H3
|
H4
|
R1
|
R2
|
Drive Shaft
|
|
07 MXTA
|
112-1120
|
14-30
|
1.8
|
110.8
|
139.3
|
42
|
65.8
|
76.2
|
108.1
|
20.5
|
68.3
|
¾"
|
|
1 MXTA
|
183-1837
|
16-36
|
2 |
130
|
182
|
50
|
72
|
99
|
144
|
26
|
99 |
¾"
|
|
3 MXTA
|
451-4512
|
22-48
|
5
|
181 |
244
|
68 | 96 |
127
|
176 |
34
|
129 |
1"
|
|
5 MXTA
|
752-7528
|
27-56
|
9 |
218
|
286 |
80
|
125 |
149
|
199 |
39
|
158 |
1-½"
|
|
8 MXTA
|
1078-10780
|
30-64
|
12 |
230
|
312 |
90
|
138 |
167
|
216
|
47 |
171
|
1-½"
|
|
10 MXTA
|
1551-15516
|
36-72 |
16
|
253 |
343
|
100 |
146
|
182 |
231
|
51 |
174
|
1-½"
|
|
15 MXTA
|
2062-20627
|
39-80
|
22
|
286 |
396
|
110 |
182
|
200 |
250
|
55 |
222
|
2-½"
|
|
20 MXTA
|
2666-26664
|
42-90
|
28
|
320 |
451
|
120 |
197
|
220 |
269
|
59 |
250
|
2-½"
|
|
25 MXTA
|
3472-34725
|
48-100
|
31 |
314
|
464
|
137 |
200
|
255 |
295
|
67 |
251
|
2-½"
|
|
35 MXTA
|
4866-48666
|
64-120 | 45 | 355 | 489 |
153
|
217 |
290
|
330 |
79
|
271 |
2-½"
|
|
50 MXTA
|
7200-72000
|
72-125
|
85 |
386
|
516
|
161 |
200
|
307 |
352
|
81 |
259
|
2-½"
|
Drive-Type Hydraulic Torque Wrench - MINI Series
1.Accuracy: ±3%
2.One-piece fuselage made of aluminum-iron alloy, featuring light weight, high strength and high toughness
3.Front-mounted reaction arm design: with a small longitudinal dimension, it is more suitable for narrow spaces
4.The reaction arm is positioned at the square drive of the drive shaft, eliminating eccentric load
5.360°×180° rotating oil pipe joint, allowing unrestricted use regardless of space conditions
6.Customizable force arm according to customers' actual needs
|
Model
|
Torque Value (N·m)
|
Nut Size (M)
|
H (mm)
|
W (mm)
|
L (mm)
|
R (mm)
|
Weight (kg)
|
Drive Shaft
|
|
MINI-07
|
104-1040
|
14-27
|
106.9
|
45.3
|
105.2
|
25
|
1.4
|
3/4＂
|
|
MINI-1
|
174-1741
|
18-36
|
124.9
|
55.2
|
127.9
|
28.6
|
2.0
|
3/4＂
|
|
MINI-3
|
402-4025
|
24-48
|
160.2
|
73.7
|
165.9
|
38.1
|
4.3
|
1＂
|
|
MINI-5
|
726-7267
|
30-56
|
188.2
|
85.9
|
119.5
|
47.2
|
7.1
|
1-1/2＂
|
|
MINI-8
|
1052-10521
|
36-64
|
212.7
|
98
|
224.2
|
52.5
|
9.4
|
1-1/2＂
|
|
MINI-10
|
1592-15921
|
42-72
|
236
|
110.5
|
252
|
60.3
|
13.3
|
1-1/2＂
|

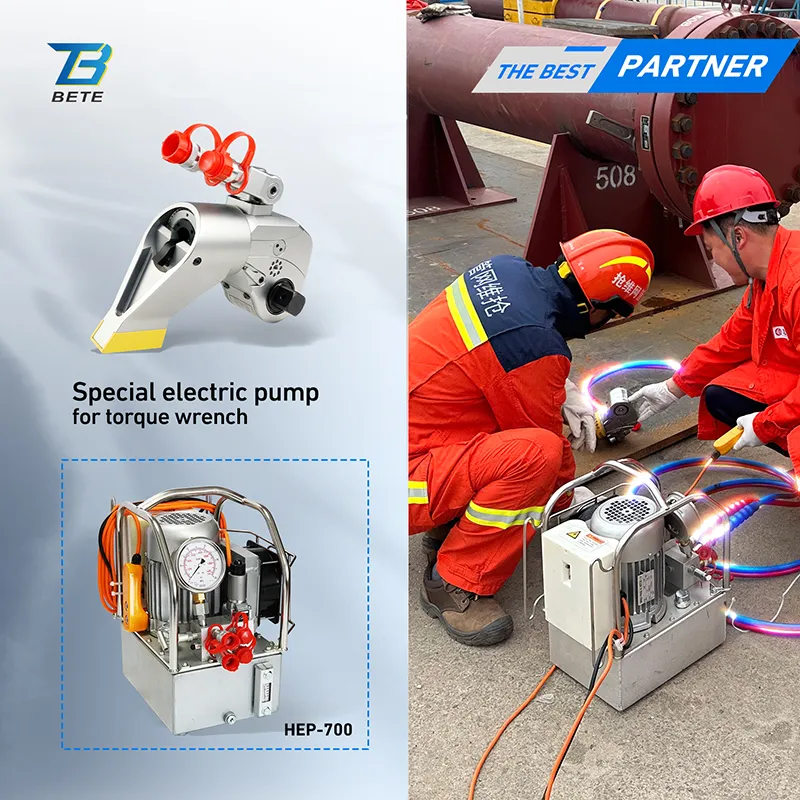

Section 2 : HEP-700 Special Electric Pump For Torque Wrench
1.Three kinds of pressure, three kinds of flow output automatic switch, maximize efficiency
2.Standard configuration drives two hydraulic wrenches (Also can be configured to drive four wrenches at the same time)
3.Aluminum and titanium alloy manufacturing tank and pump, light weight, easy to carry
4.Φ100 high density pressure gauge, ensuring higher torque accuracy
5.Adjust the output pressure freely in the range of 40-700 bar
6.With a radiator, can work continuously for 24 hours
7.A variety of voltage / frequency motors available upon request
① Al metal frame, easy to carry, protect machine body
② External pressure regulator, built-in relief valve protection
③ System pressure release button, release pressure when pump stopped and power failure.
④ Lightweight design body, reducing weight, easy to carry
|
Model
|
HEP-700
|
|
|
Power Source
|
AC power
|
|
|
Tank Capacity
|
8L
|
|
|
Oil Flow
|
Low Pressure
|
7L/min
|
|
Medium Pressure
|
1.6L/min
|
|
|
High Pressure
|
0.8L/min
|
|
|
Output Pressure
|
40-700bar
|
|
|
Input Power Supply
|
220V/50Hz
|
|
|
Power
|
1.1kW
|
|
|
Weight
|
26.7kg
|
|
Section 3 : Special Sockets for MXTA Series of Driving Type Hydraulic Torque Wrench (Cr-mo Sockets)
