Hollow Hydraulic Torque Wrench Systems
Designed for high-strength bolting applications in confined spaces, offering precise torque output, compact structure, and complete hydraulic drive solutions.
1.Compact Hollow Design
2.High Torque Accuracy
3.Ultra Slim Head Options
4.Durable Industrial Construction
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Overview
Product Details

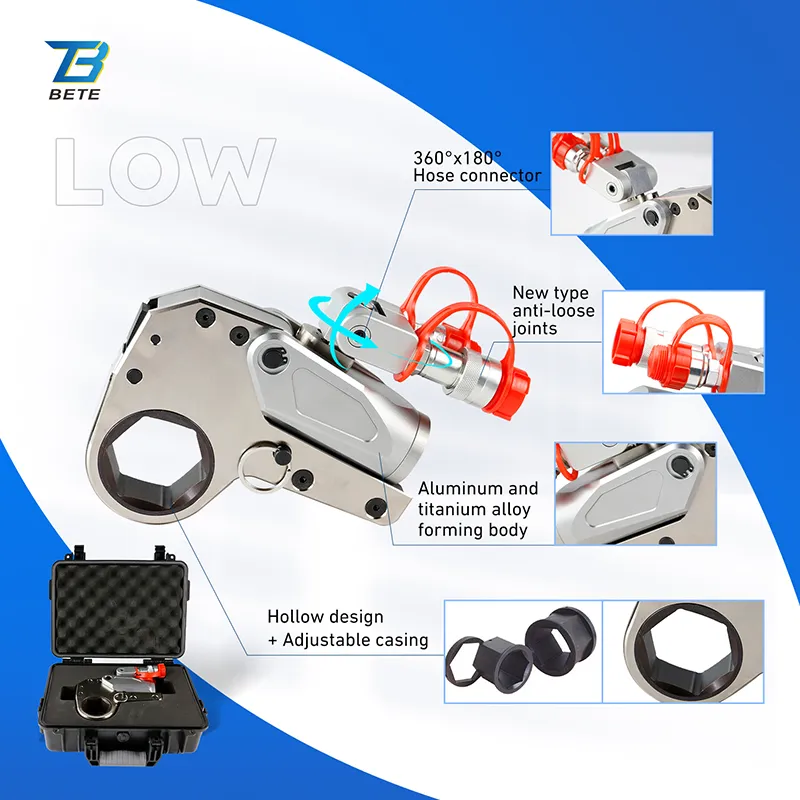

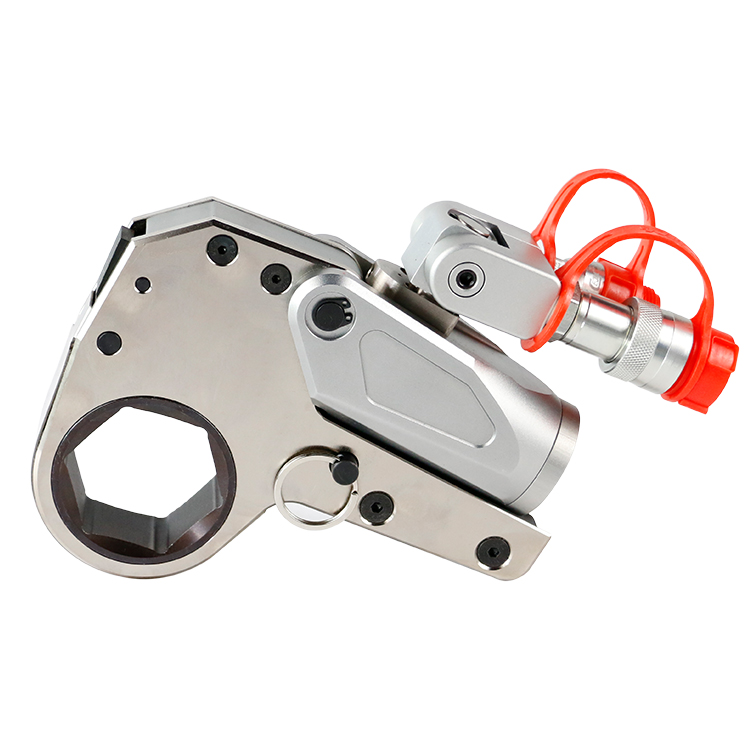

Section 1:LOW Series Of Hollow Hydraulic Torque Wrench
1.Max working pressure up to 70MPa, accuracy up to ±3%
2.A total of six models from 232- 44593Nm

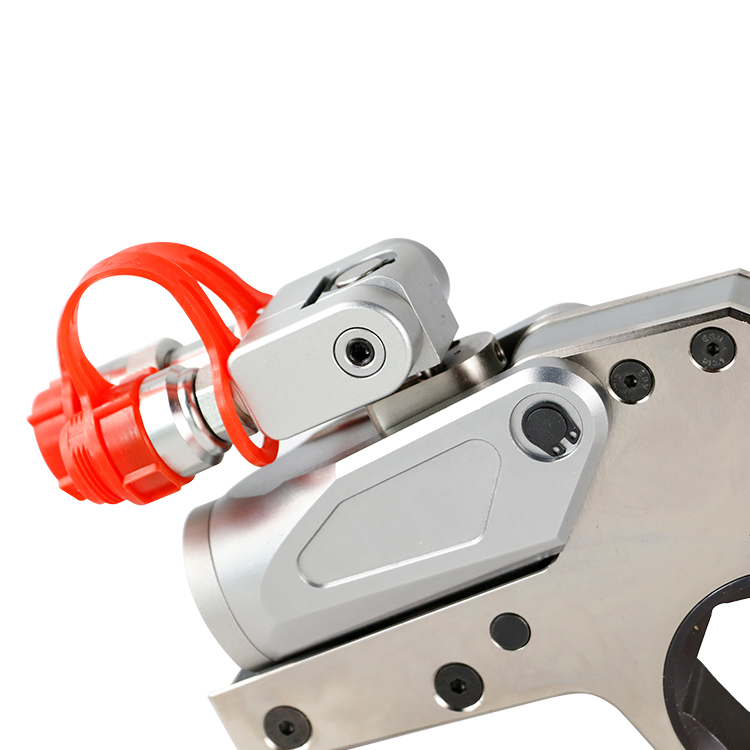

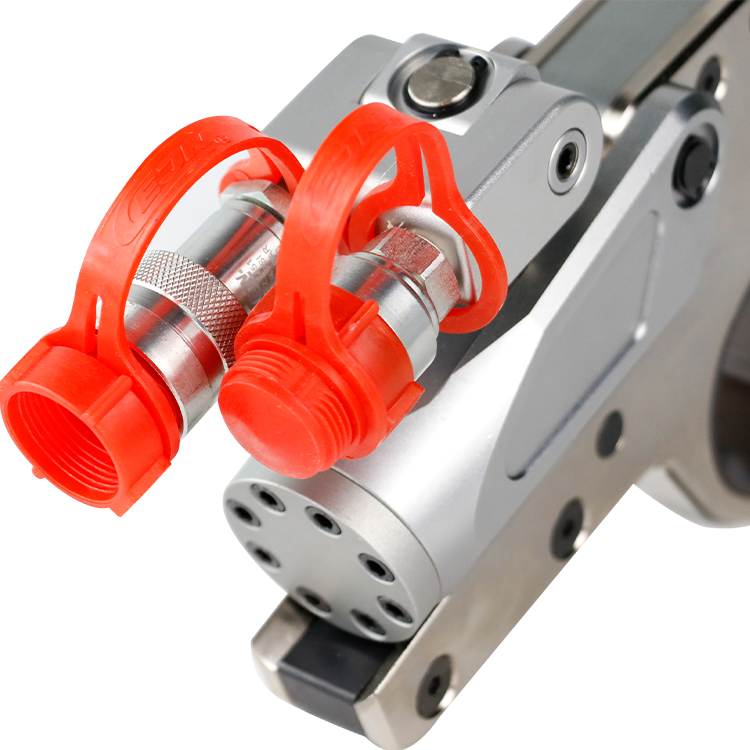

3.360°x180°and 360°x360°rotation hose connectors optional, used without limited space
4.Integrated lengthen design, longer arm, reliability enhanced
5.Aluminum and titanium alloy forming body, high strength, high toughness
6.New type anti - loose joints to ensure the oil flows smoothly
7.Anti-stop pawl design can prevent the wrench ratchet from reversing, higher work efficiency and torque accuracy

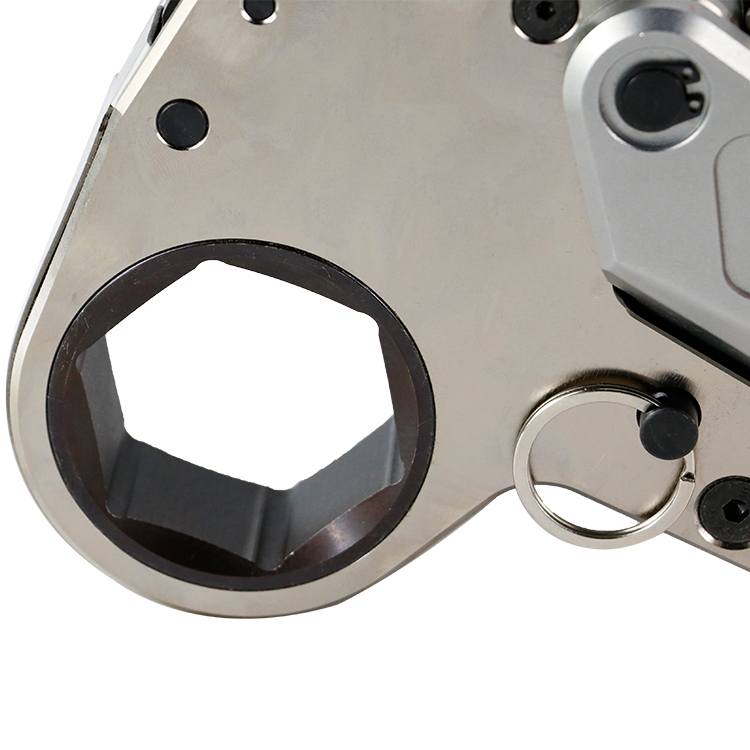

8.Hollow design, wrench directly acts on the nut, more accurate torque and lighter
|

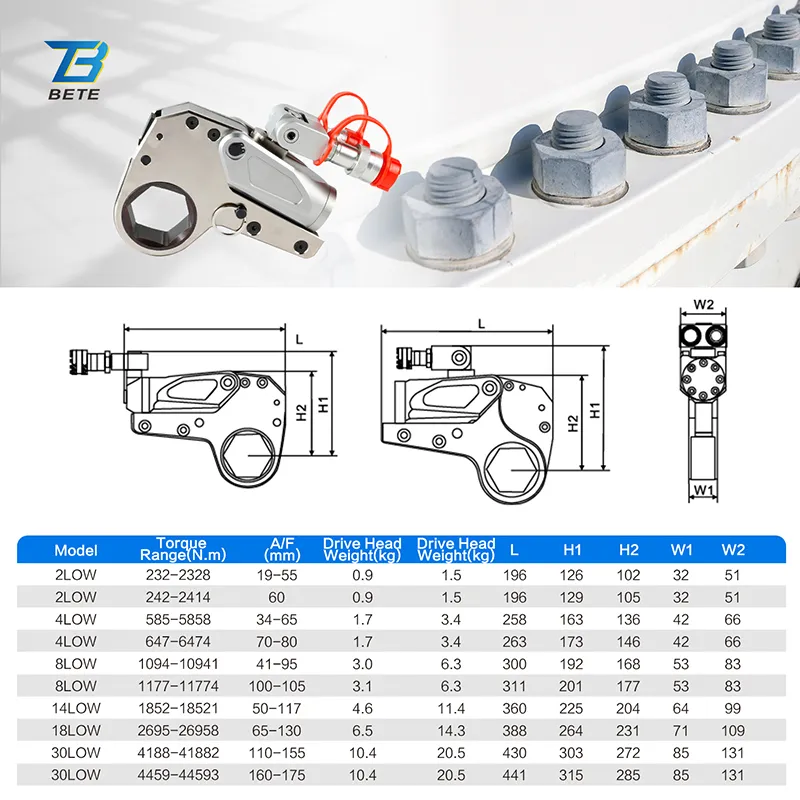

Model
|
Torque Range(N.m)
|
A/F(mm)
|
Drive Head
Weight(kg)
|
Working Head
Weight(kg)
|
L
|
H1
|
H2
|
W1
|
W2
|
|
2LOW
|
232-2328
|
19-55 | 0.9 | 1.5 | 196 | 126 |
102
|
32
|
51
|
|
242-2414
|
60 | 0.9 | 1.5 | 196 |
129
|
105 |
32
|
51 | |
|
4LOW
|
585-5858
|
34-65
|
1.7 | 3.4 | 258 |
163
|
136 |
42
|
66 |
|
647-6474
|
70-80
|
1.7 | 3.4 | 263 |
173
|
146 |
42
|
66 | |
|
8LOW
|
1094-10941
|
41-95
|
3.0
|
6.3
|
300
|
192
|
168
|
53
|
83 |
|
1177-11774
|
100-105
|
3.1
|
6.3
|
311
|
201
|
177 |
53
|
83 | |
|
14LOW
|
1852-18521
|
50-117
|
4.6
|
11.4
|
360
|
225
|
204 |
64
|
99 |
|
18LOW
|
2695-26958
|
65-130
|
6.5
|
14.3
|
388
|
264
|
231 |
71
|
109 |
|
30LOW
|
4188-41882
|
110-155
|
10.4
|
20.5
|
430
|
303
|
272 |
85
|
131
|
|
4459-44593
|
160-175
|
10.4
|
20.5
|
441 |
315
|
285 |
85
|
131
|
Section 2:Ultra-Thin Hollow-Type Hydraulic Torque Wrench - LOW-CP Series
1.High torque, lighter weight, and low-profile design
2.Double-acting, high-speed, and large rotation angle
3.Compatible with multiple replaceable working heads (optional)
4.360° rotating hose connector, suitable for compact spaces and easy positioning
5.Torque range: 232–44,593 N·m; torque accuracy up to ±3%
6.The wrench components are fully designed for high strength, with an integral reaction arm. It features no space restrictions during use, and is durable and reliable
7.Expandable metric and imperial hex inserts and sockets
8.Maximizes the use of high-strength lightweight metals
9.Customized design available for special requirements
|
Model
|
Torque Value (N·m)
|
Nut Opposite Side (mm)
|
L (mm)
|
H1 (mm)
|
H2 (mm)
|
W1 (mm)
|
W2 (mm)
|
Power Head Weight (kg)
|
Working Head
|
|
2LOW-CP
|
232-2328
|
19-55
|
196
|
102 | 126 |
32
|
66 |
1.2
|
1.6 |
|
241-2414
|
60 |
196
|
105
|
129 |
32
|
66 |
1.2
|
1.7 | |
|
3LOW-CP
|
475-3327
|
46-60
|
196
|
113
|
201
|
38 |
77
|
1.5
|
2.2 |
|
4LOW-CP
|
585-2510
|
34-36 |
245
|
136
|
177
|
42
|
77
|
2.3
|
4.4
|
|
585-5021
|
41
|
245
|
136
|
177
|
42
|
77
|
2.3
|
4.4
|
|
|
585-5858
|
41-65 |
246
|
146 |
187
|
42
|
77
|
2.3
|
4.6 | |
|
647-6474
|
70-80
|
246
|
146 |
187
|
42
|
77
|
2.3
|
4.6 | |
|
8LOW-CP
|
1094-10941
|
41-95
|
300
|
169
|
207
|
53
|
77
|
3.3
|
8
|
|
1177-11774
|
100-105
|
301
|
179
|
216
|
53
|
77
|
3.3
|
8.4 | |
|
14LOW-CP
|
1852-18521
|
50-115
|
361
|
204
|
239
|
64
|
99
|
5.5
|
11.5 |
|
18LOW-CP
|
2695-26958
|
65-130
|
388
|
231
|
264
|
71
|
109
|
6.5
|
14.3
|
|
32LOW-CP
|
4188-41882
|
110-155
|
430
|
272
|
303
|
85
|
131
|
11.5
|
29
|
|
4459-44593
|
160-175
|
441
|
285
|
315
|
85
|
131
|
11.5
|
30
|
Section 3:Accessories & Hydraulic Drive System
LOW Working Head Series Hollow Hydraulic Torque Wrench Working Head
Each type of LOW hollow torque wrench power has a set of working head corresponding to it, they cover this type of power head that can provide all sizes of bolts within the torque range. When selecting the appropriate working head for the bolt, note that the distance between the bolt and the
wall is greater than the distance between the hexagonal edge of the working head and the outer edge of the working head. Pay special attention to whether there is enough space between bolt and bolt. The R and A in the following table can help you choose the right head.
Interchangeable reducer
Interchangeable reducer cooperates with LOW series working head, so that a single working head can match multiple bolt size, which can greatly improve the adaptability of different conditions.

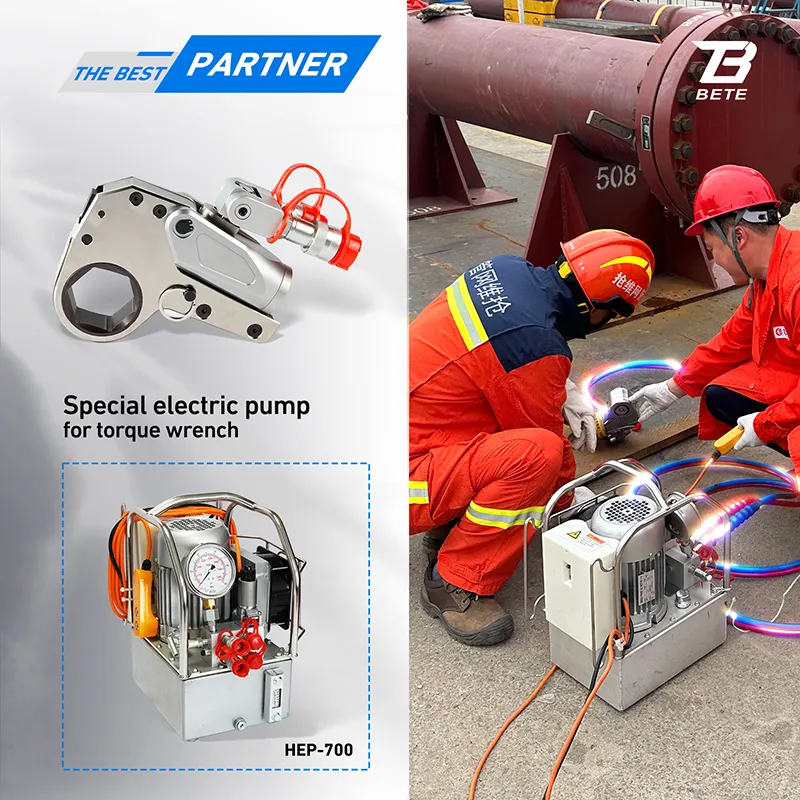

HEP-700 Special Electric Pump For Torque Wrench
1.Three kinds of pressure, three kinds of flow output automatic switch, maximize efficiency
2.Standard configuration drives two hydraulic wrenches (Also can be configured to drive four wrenches at the same time)
3.Aluminum and titanium alloy manufacturing tank and pump, light weight, easy to carry
4.Φ100 high density pressure gauge, ensuring higher torque accuracy
5.Adjust the output pressure freely in the range of 40-700 bar
6.With a radiator, can work continuously for 24 hours
7.A variety of voltage / frequency motors available upon request
① Al metal frame, easy to carry, protect machine body
② External pressure regulator, built-in relief valve protection
③ System pressure release button, release pressure when pump stopped and power failure.
④ Lightweight design body, reducing weight, easy to carry
|
Model
|
HEP-700
|
|
|
Power Source
|
AC power
|
|
|
Tank Capacity
|
8L
|
|
|
Oil Flow
|
Low Pressure
|
7L/min
|
|
Medium Pressure
|
1.6L/min
|
|
|
High Pressure
|
0.8L/min
|
|
|
Output Pressure
|
40-700bar
|
|
|
Input Power Supply
|
220V/50Hz
|
|
|
Power
|
1.1kW
|
|
|
Weight
|
26.7kg
|
|
