Products

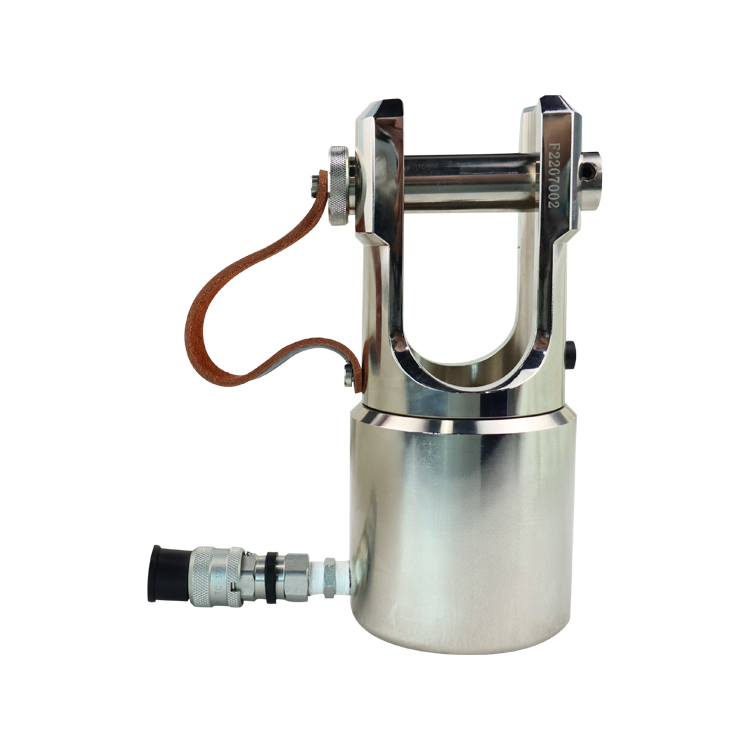

PCS-45 Hydraulic Crimping Head 45t

1.Crimping Force:45T

2.Crimping capacity:Max 800mm²

3.Flat base, keep horizontal level

4.U-type crimping head, sturdy and durable

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview



Output force 45T
Stroke 20mm
Rated Pressure 700bar
Crimping Capacity Max 800mm
Weight 11 kg

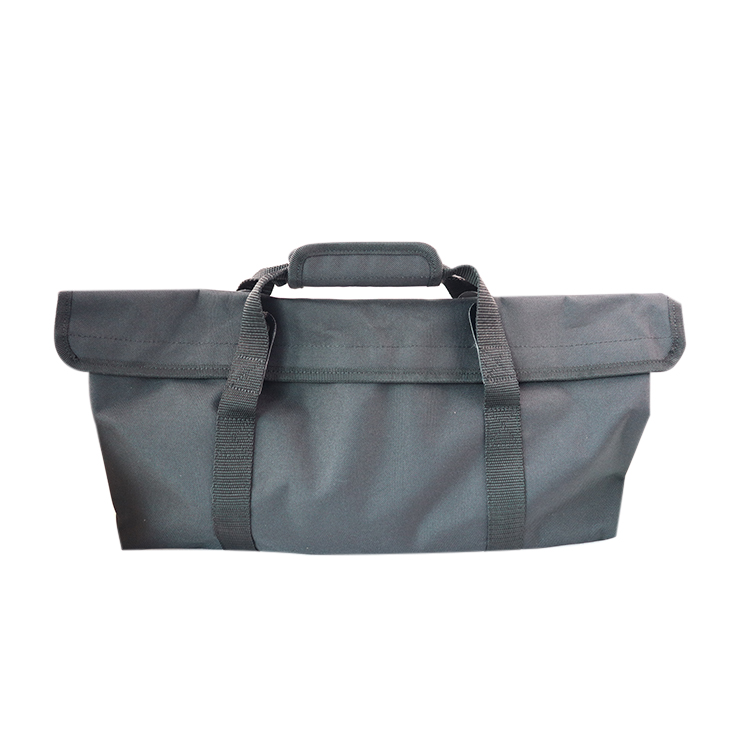

Packing Canvas Bag
Dimensions 22*13*27cm



Features:
1. To crimp the indoor and outdoor splicing fittings, clamp terminals for power
transmission and distribution
2. Open U-crimping head, sturdy and durable
3. Pin-type crimping head; easy to take out dies and finished part

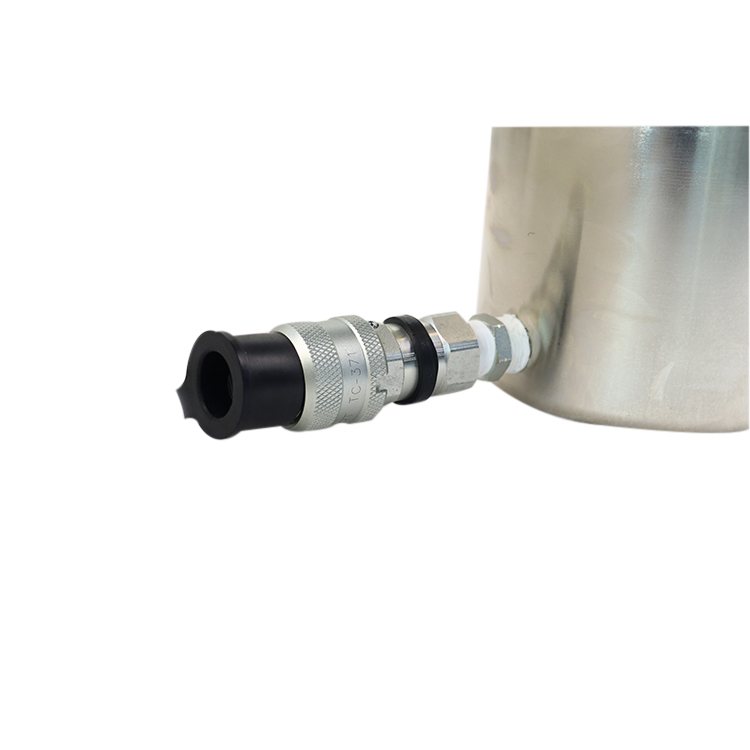

4. Quick coupler for easy disassembly
5. With neat base, keep horizontal status
6. Powered by a single acting hydraulic pump



Parameters
Output force 45T
Stroke 20mm
Rated Pressure 700bar
Crimping Capacity Max 800mm
Weight 11 kg
Packing Canvas Bag
Dimensions 22*13*27cm
Features

1. To crimp the indoor and outdoor splicing fittings, clamp terminals for power
transmission and distribution
2. Open U-crimping head, sturdy and durable
3. Pin-type crimping head; easy to take out dies and finished part
4. Quick coupler for easy disassembly
5. With neat base, keep horizontal status
6. Powered by a single acting hydraulic pump

Application
