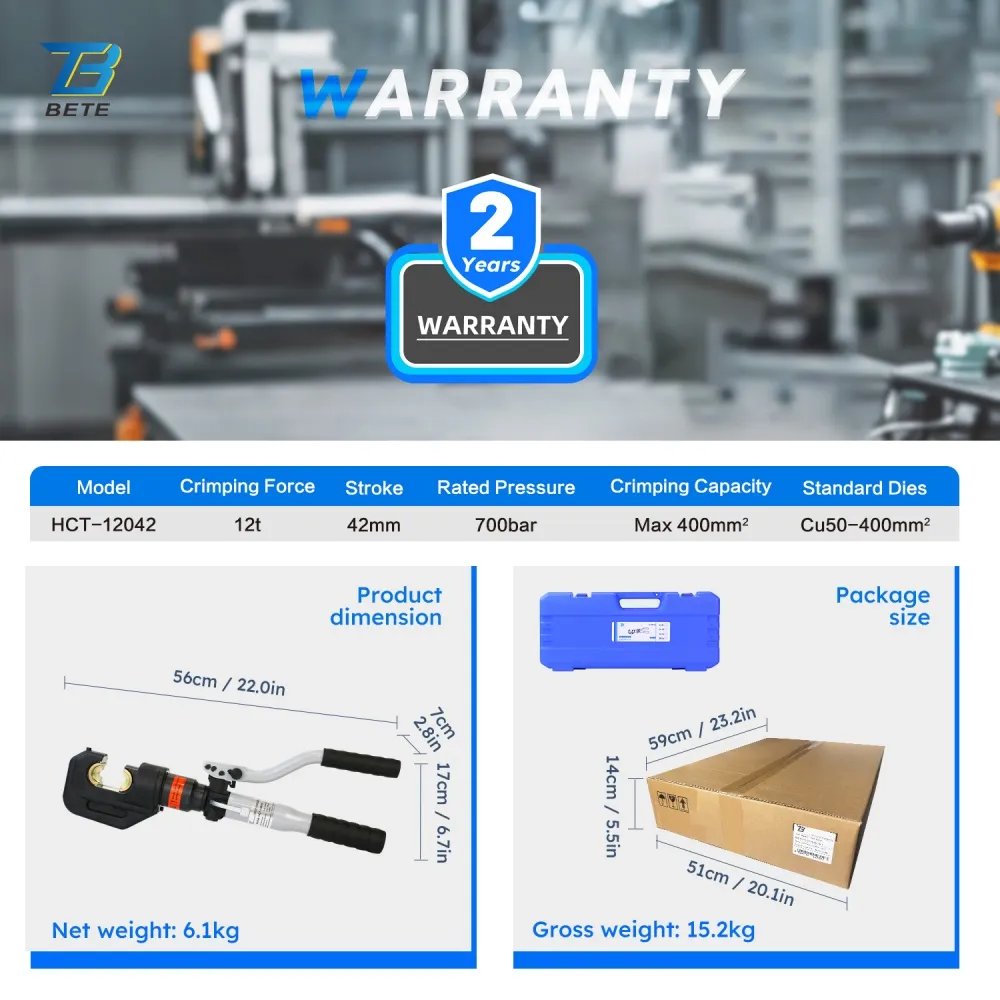

Output force | 12T |
Rated Pressure | 700bar |
Crimping capacity | Max 400mm² |

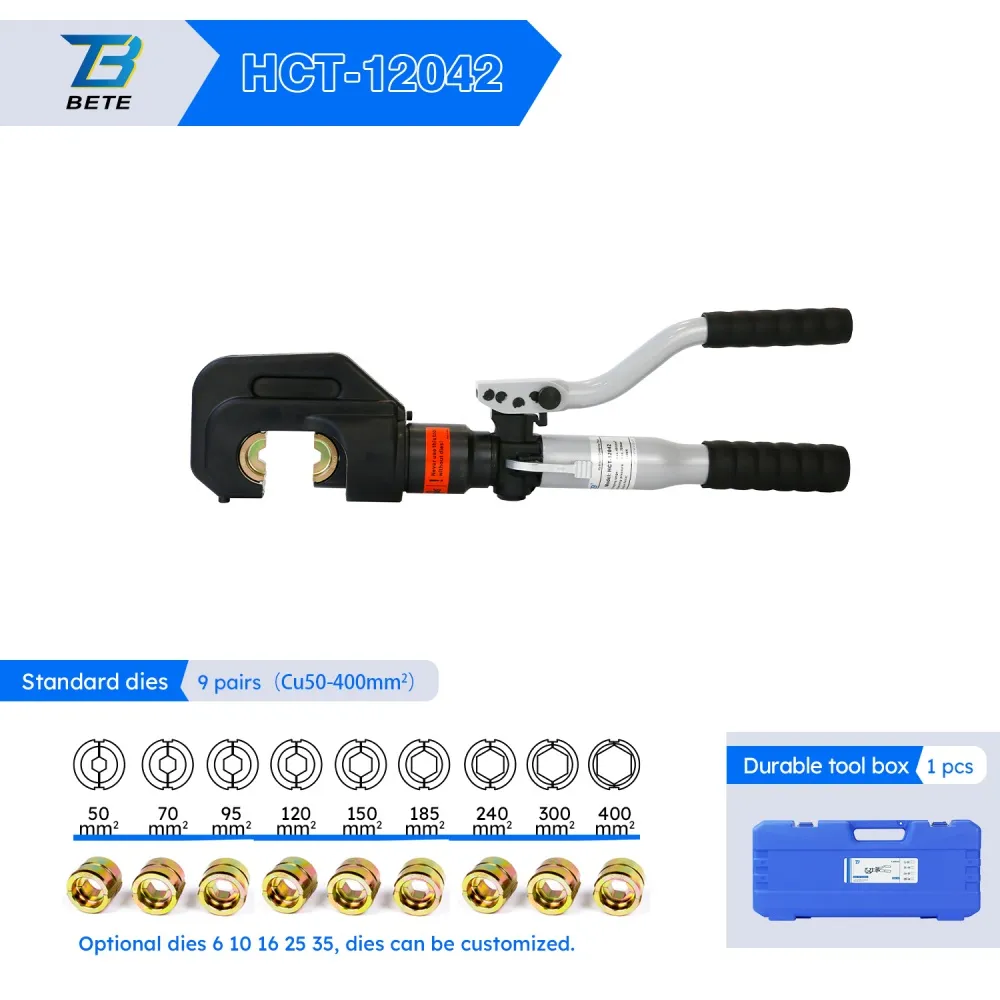

Standard dies | Cu50-400mm² |
Weight | 6. 1kg |
Packing | Plastic Case |

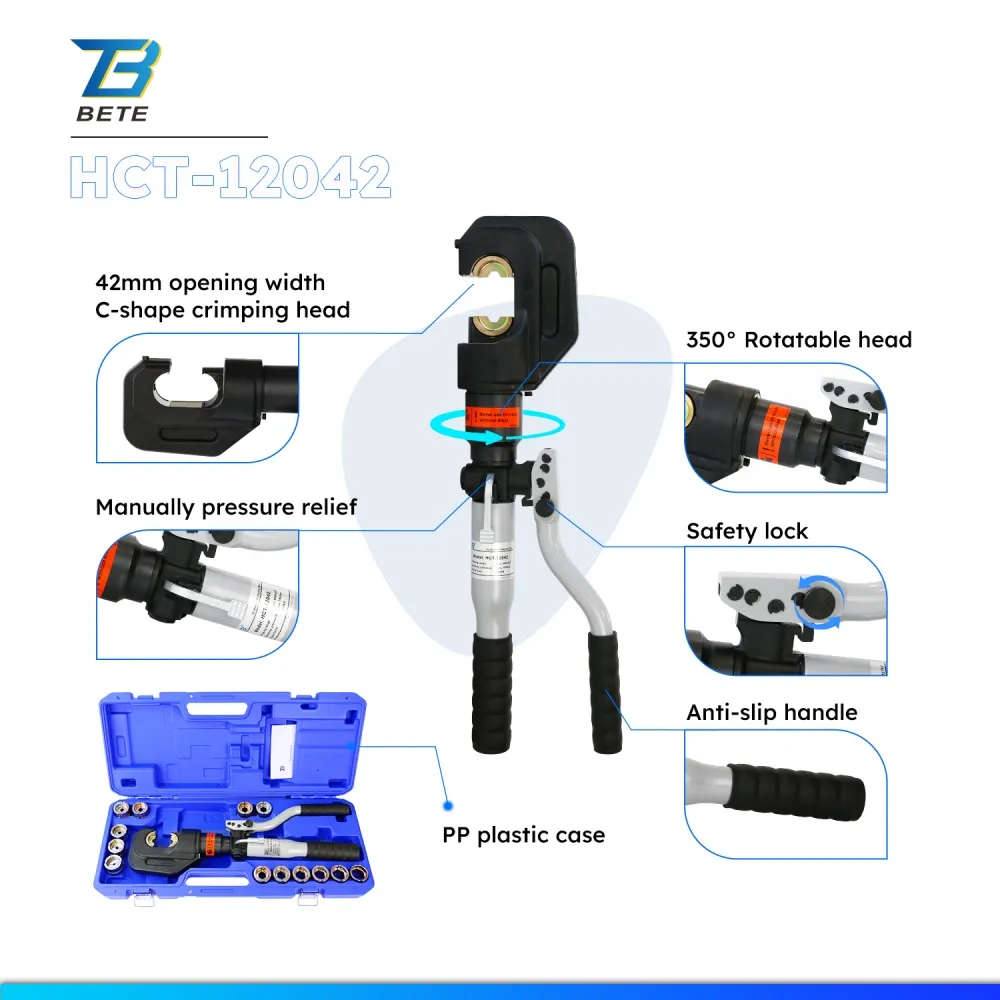

Features:
1. Stroke up to 42mm; max. crimping up to 400mm²
2. C-shape crimping head. rotates 360°
3. Two stage hydraulics
4. Automatic retraction when crimp is finished
Output force | 12T |
Rated Pressure | 700bar |
Crimping capacity | Max 400mm² |
Standard dies | Cu50-400mm² |
Weight | 6. 1kg |
Packing | Plastic Case |
1. Stroke up to 42mm; max. crimping up to 400mm²
2. C-shape crimping head. rotates 360°
3. Two stage hydraulics
4. Automatic retraction when crimp is finished
