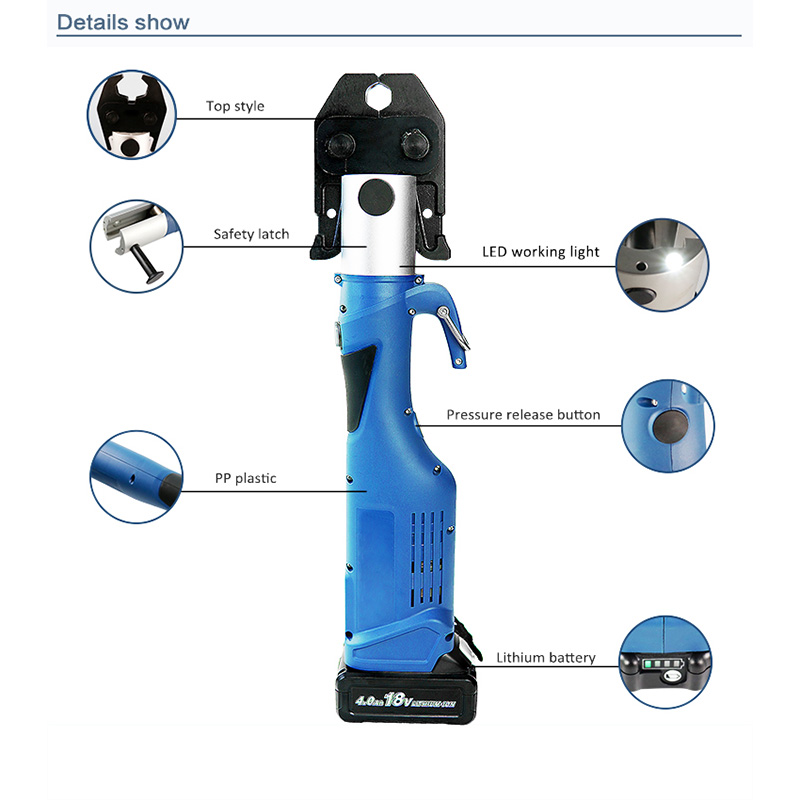

Working light
◢ Single stage system, when the pressure reaches set value, can automatically reset the piston

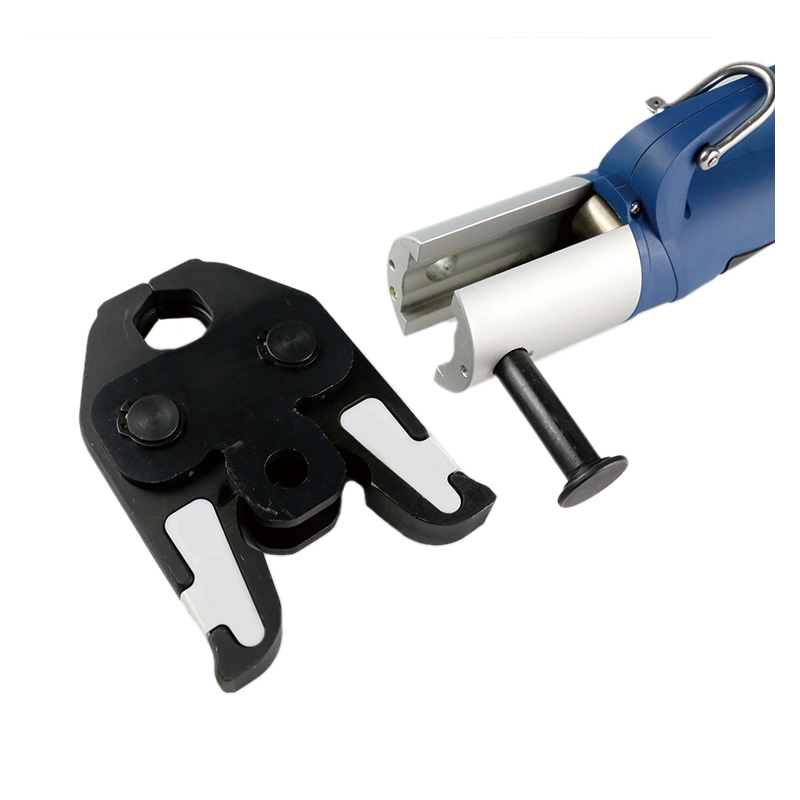

◢ The latch with a buckle to avoid device damage caused by misoperation
◢ Built-in MCU chip and storage unit, can record job data and prompt failure and maintenance
◢ LED light can meet the operation needs when light source is insufficient
◢ 18V high-performance lithium battery withlong time high energy output
◢ High strength aluminum alloy body, light weight
◢ Ergonomic design, holding area is covered with rubber to avoid fatigue
◢ Two-stage system, when the pressure reaches set value, can automatically reset the piston
◢ Latch position with a sensor to avoid injury to the tool and personnel caused by not locking the latch
◢ Built-in MCU chip and storage unit, can record job data and prompt failure and maintenance
◢ LED light can meet the operation needs when light source is insufficient
◢ 18V high-performance lithium battery withlong time high energy output
◢ High strength aluminum alloy body, light weight
◢ Ergonomic design, holding area is covered with rubber to avoid fatigue

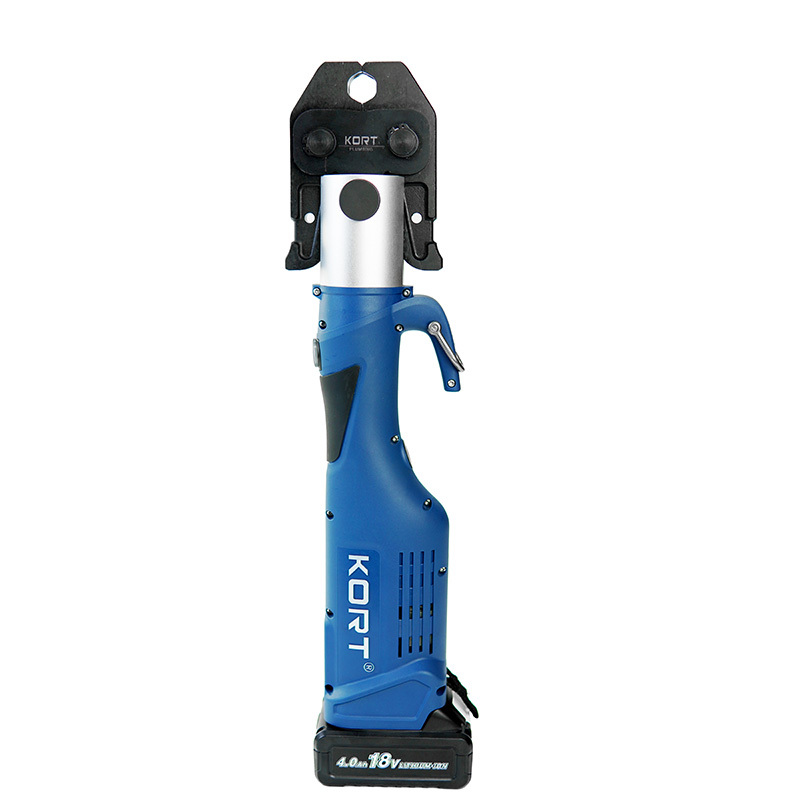

| Model | EMP-3250 |
| Crimping Force | 12-54mm thin wall stainless steel pipe, copper pipe (Note: for different types and materials of pipe fittings, pressure capacity is different, which should be determined according to the matching pipe fittings) |
| Output | 32kN (standard force) |
| Stroke | 40mm |
| Oil Reservoir | 150ml |
| Net Weight | 3.6kg (without dies) |
| Gross Weight | 11.6kg |
| Dimensions | 46x11x8mm (without dies) |
| Packing Size | 59x52x14mm |
| Model | EMP-3250 |
| Crimping Force | 12-54mm thin wall stainless steel pipe, copper pipe (Note: for different types and materials of pipe fittings, pressure capacity is different, which should be determined according to the matching pipe fittings) |
| Output | 32kN (standard force) |
| Stroke | 40mm |
| Oil Reservoir | 150ml |
| Net Weight | 3.6kg (without dies) |
| Gross Weight | 11.6kg |
| Dimensions | 46x11x8mm (without dies) |
| Packing Size | 59x52x14mm |
Working light
◢ Single stage system, when the pressure reaches set value, can automatically reset the piston
◢ The latch with a buckle to avoid device damage caused by misoperation
◢ Built-in MCU chip and storage unit, can record job data and prompt failure and maintenance
◢ LED light can meet the operation needs when light source is insufficient
◢ 18V high-performance lithium battery withlong time high energy output
◢ High strength aluminum alloy body, light weight
◢ Ergonomic design, holding area is covered with rubber to avoid fatigue
◢ Two-stage system, when the pressure reaches set value, can automatically reset the piston
◢ Latch position with a sensor to avoid injury to the tool and personnel caused by not locking the latch
◢ Built-in MCU chip and storage unit, can record job data and prompt failure and maintenance
◢ LED light can meet the operation needs when light source is insufficient
◢ 18V high-performance lithium battery withlong time high energy output
◢ High strength aluminum alloy body, light weight
◢ Ergonomic design, holding area is covered with rubber to avoid fatigue
