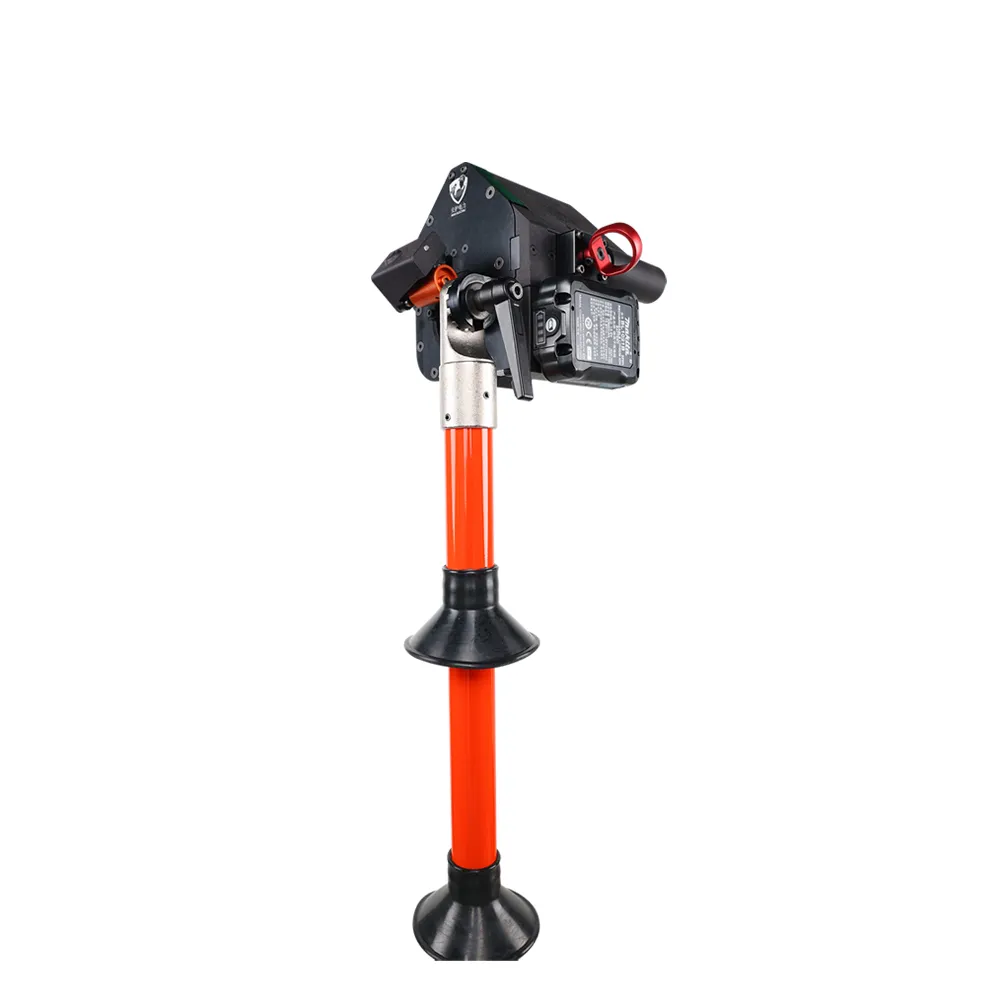

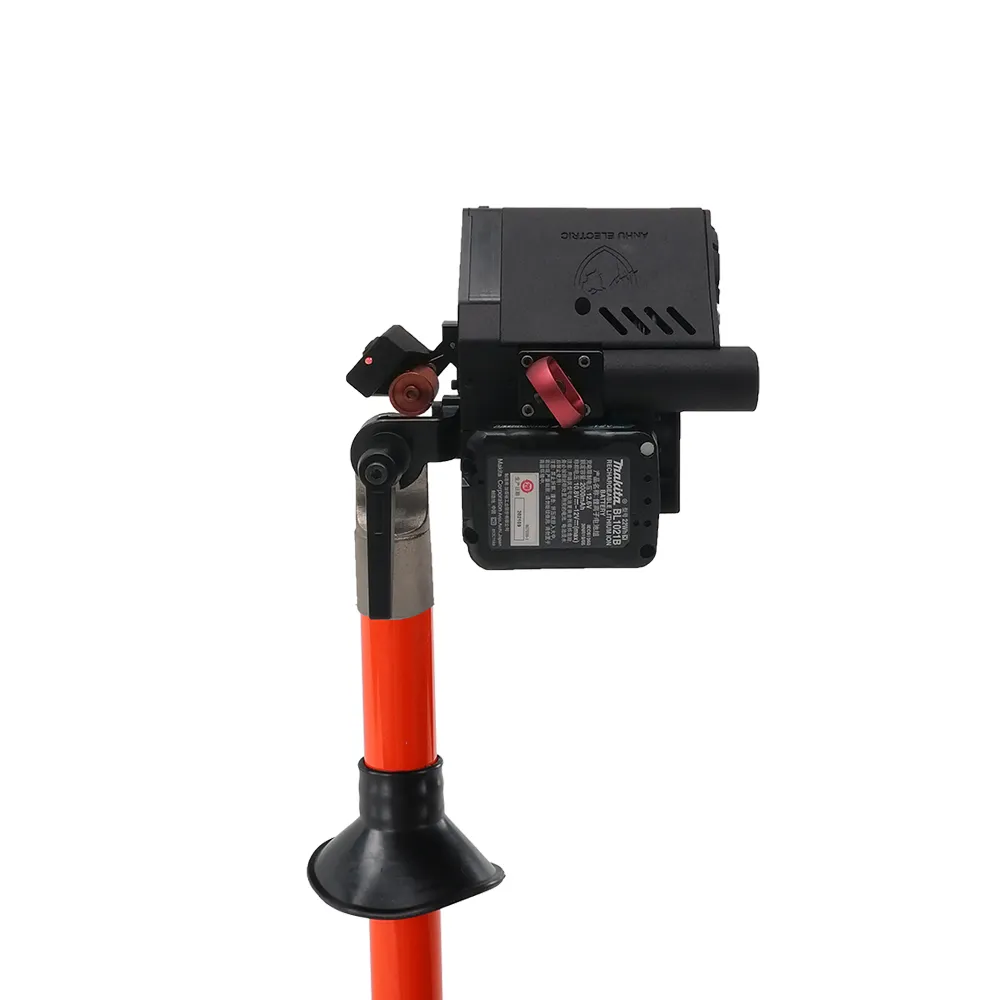

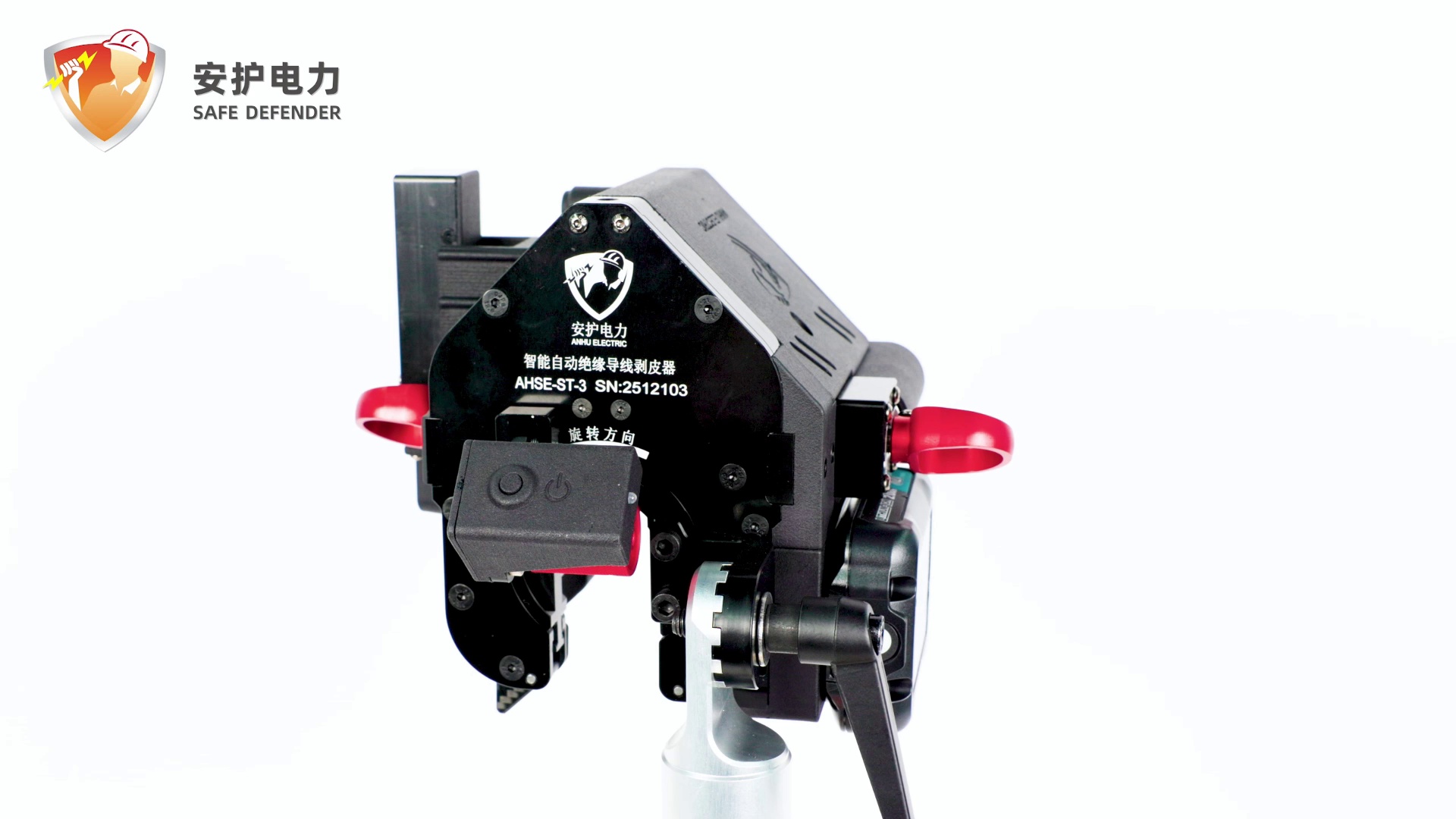

AHSE-ST-3 Intelligent Insulated Cable Stripper
Applicable to various operation methods in live distribution network maintenance, including ground potential operations in
mountainous areas, short stick operations using bucket trucks, and glove operations. It enables the removal of insulation layers
from insulated overhead cables of various specifications.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Features :
1. Lightweight and compact: 2.1kg (with battery pack).

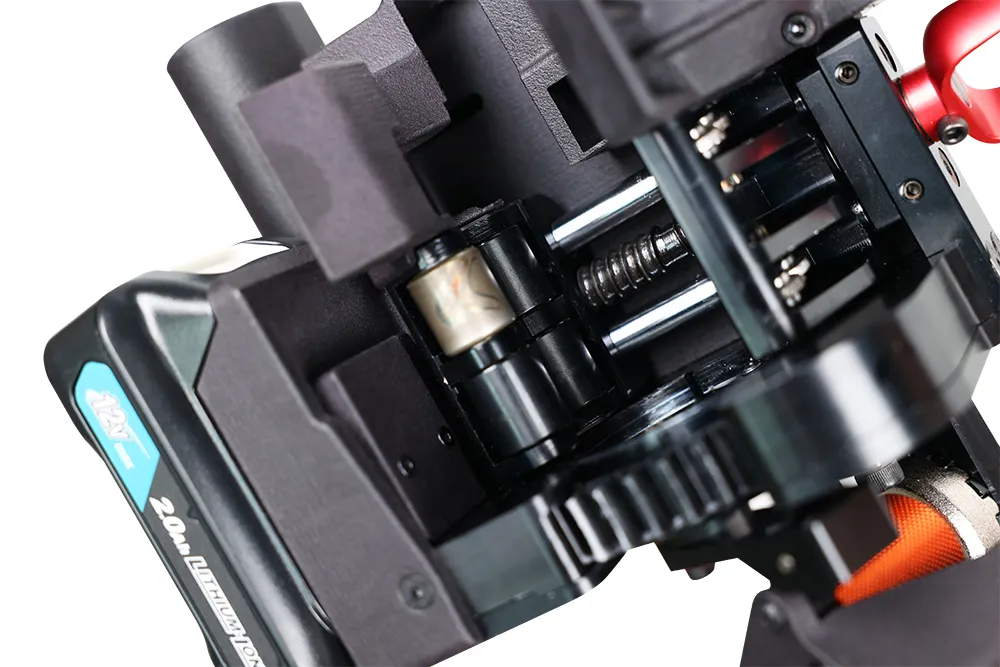

2. Visual blade monitoring: enables real-time observation of the blade's operation.
3. Cable rotation detection and advanced mechanical unlocking system: make the insulation stripping of cables easy, safe and
reliable.
|
Parameters
|
AHSE-ST-3
|
|
Cable Types
|
Al/Cu stranded cable with XLPE jacket(flexible cables not applicable)
|
|
Cable Sizes
|
50-240mm²
|
|
Cable Outer Diameter
|
14-30mm
|
|
Stripping Thickness
|
2-5mm
|
|
Stripping Length and Accuracy
|
Range: 5-30cm; accuracy: ±1cm
|
|
Cable Rotation Detection
|
Cable rotation detection and automatic emergency stop and alarm, to avoid conductor damage.
|
|
Standard accessories
|
Remote control, insulating stick(3 sections, 4 meters totally), dual-purpose hook stick
(2sections, 2.7m totally), a short stick 40cm, two batteries, two chargers
|
