Insulated Remote Control Clamp Tools for Live Line Work
AHSE-PIWC-2 & AHSE-IPGC-2 & AHSE-CP-2
1.Designed for live distribution network maintenance, supporting multiple working methods such as glove, hot stick, and bucket-truck operations
2.Enables efficient installation, fastening, and handling of various clamps with wide compatibility
3.Precision torque control ensures stable and high-quality installation performance
4.Fully insulated structure with self-locking and emergency release functions for enhanced safety
5.Flexible operation with adjustable angles and adaptive locking mechanisms for complex working environments
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Overview
Product Details
1.Model: AHSE-PIWC-2 Live Working Insulated Remote Control Quick-mount Clamp Installer
For live distribution network maintenance (mountain ground-potential, bucket-truck short-pole, glove operations); enables efficient, high-quality live
installation of pre-assembled lead-type quick-mount clamps (e.g., S-type, throat clamps) via hanging ring screws.
Features：
1.Adaptive hanging ring screw lock: wide compatibility,versatile, easy to operate.
2.Omnidirectional clamp lock adjustment.
3.Preset bolt torque: precise installation.
4.Emergency mechanical unlock: resolves tool malfunctions for recovery.
 |
 |
 |
|
Model
|
AHSE-PIWC-2
|
|
Max Torque
|
165 Nm
|
|
Live Work Methods
|
Ground potential, intermediate potential
|
|
Outer Diameter Range for Hanging Ring
|
25-40 mm
|
|
Cable Diameter Range for Hanging Ring
|
5.5-8 mm (without insulation block) 3.5-6 mm (with insulation block)
|
|
Extension Stroke Range
|
10-55 mm
|
|
Extension Speed
|
8 mm/s
|
|
Impact Time Seting Range of Impact Wrench
|
0.5-5.0 s (0.1 second precision adjustable)
|
|
Maximum Use Voltage
|
20 kV
|
|
Number of Conductors Installed per Full Battery
|
Approx. 30 conductors
|
Standard Accessories
|
Remote control
|
1 |
|
Insulating stick
(3 sections, 4 m totally)
|
1 |
|
Batteries
|
2 |
|
Chargers
|
2 |
2.Model: AHSE-IPGC-2 Live Working Insulated Remote Control Parallel Groove Clamp Installer
For live distribution network maintenance, including ground potential operations in mountainous areas, short stick operations using bucket
trucks, and glove operations.
Features：
1.Strong Compatibility:Compatible with commonly used models such asJBL-50-240.
2.Dual-drive Torque Distribution:Features electronic speed control with excellent fastening performance.
3.Electric Automatic Locking/ Release:Simplifies lead wire and clamp operations for ease of use.
|
Model
|
AHSE-IPGC-2
|
|
Maximum Use Voltage
|
20 kV
|
|
Max Torque
|
165 Nm
|
|
Working Torque
|
Adjustable with multiple parameter options
|
|
Automatic Screw Alignment
|
One-key quick double screw alignment
|
|
One-Key Operation
|
Automatic locking/release of clamps
|
|
Automatic fixation/release of lead wires
|
|
|
Synchronous tightening of double screws, automatic torque distribution
|
|
|
Supports single-clamp and double-clamp installations
|
|
|
Adjustable impact time based on clamp bolt specifications
|
|
|
Emergency Unlocking
|
In abnormal situations, manual operation of the lever allows mechanical unlocking of clamps and lead wires
|
Standard Accessories
|
Remote control
|
1 |
|
Insulating stick (3 sections, 4 m totally)
|
1 |
|
Batteries
|
2
|
|
Chargers
|
2
|

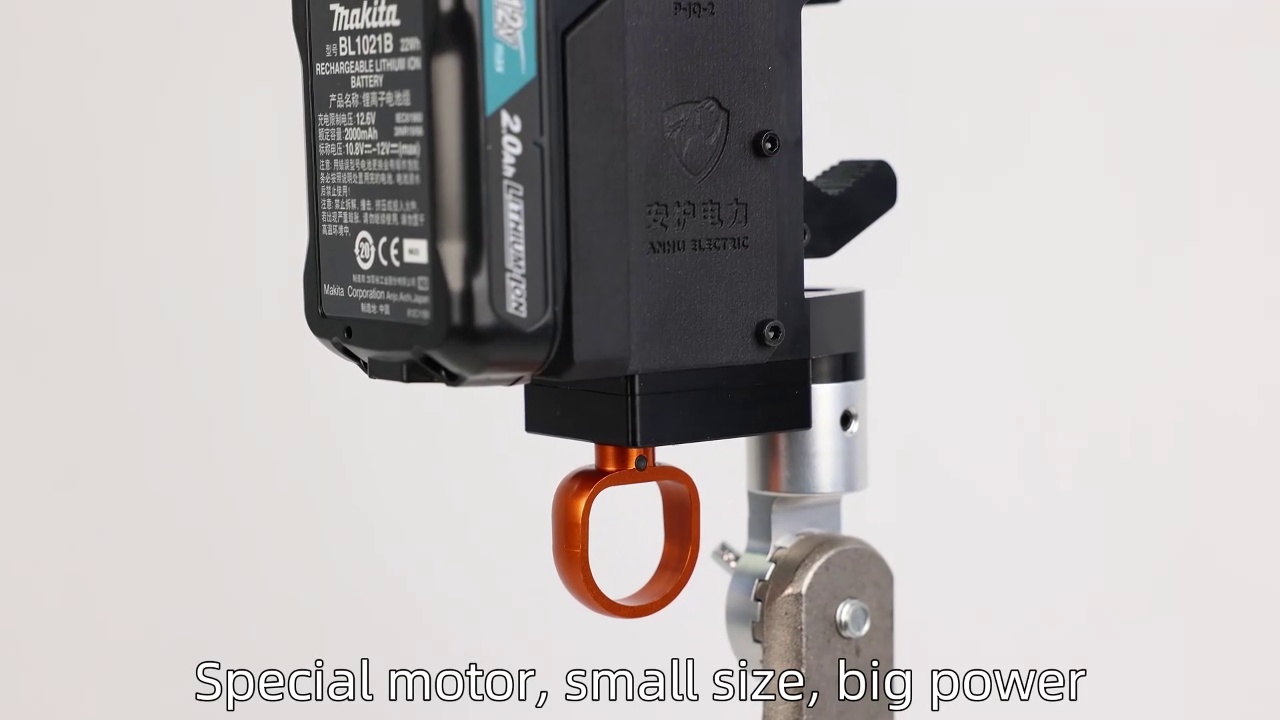

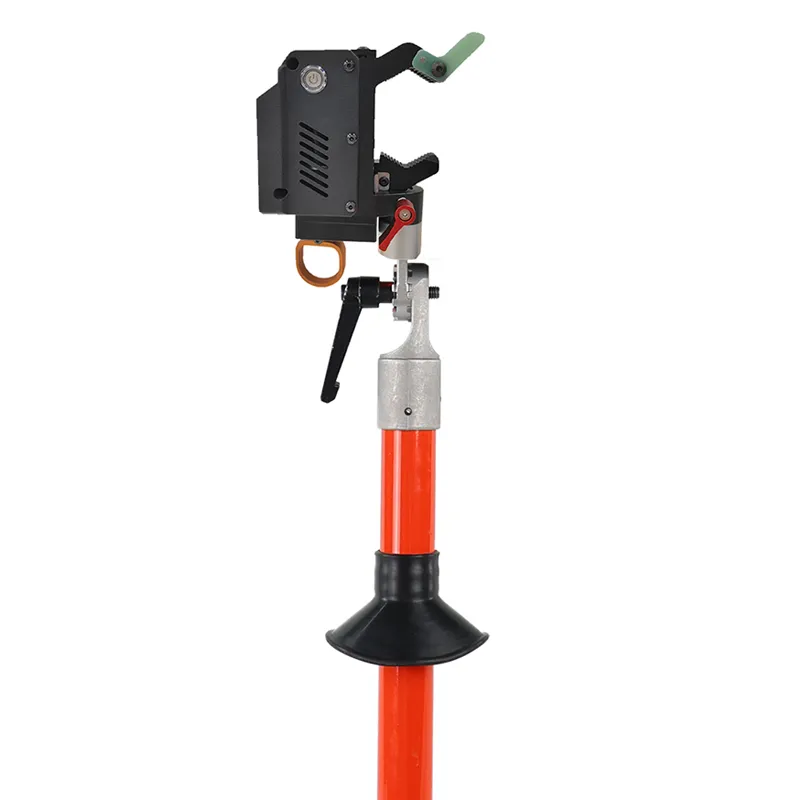

3.Model: AHSE-CP-2 Live Working Insulated Remote Control Clamp
Suitable for live distribution network maintenance (mountain ground-potential, bucket-truck short-stick, glove operations); strips insulation from various insulated overhead cables.
Features：
1.Function:Designed for clamping cables and wires during live working.
2.Fully Insulated Body:Main body made of fully insulated materials.
3.Self-locking Function:Equipped with a built-in mechanical self-locking.
4.Adjustable Axial Angle:The clamp jaw direction can be adjusted arbitrarily through the universal head, which facilitates operation in various complex sites and greatly enhances the applicability of this clamp.
|
Model
|
AHSE-CP-2
|
|
Max Clamping Force
|
＞250 N
|
|
Compatible Cable Diameter
|
8-35 mm
|
|
Live Work Methods
|
Ground potential, intermediate potential
|
|
Adaptive Clamping Speed
|
4.5 mm/s
|
|
Battery Duration
|
≥ 4h
|
|
Applicable Cable Types
|
Various 10 kV insulated cables and bare wires
|
|
Maximum Use Voltage
|
20 kV
|
|
Main Material
|
Aluminum alloy, alloy steel, nylon, etc.
|
|
Surface Treatment
|
Steel shot blasing, aluminum alloy anodizing, etc.
|
|
Weight
|
Bare clamp: 0.5 kg (0.7 kg with battery)
|
Standard Accessories
|
Remote control
|
1 |
|
Insulating stick (3 sections, 4 m totally)
|
1 |
|
Batteries
|
2
|
|
Chargers
|
2
|
