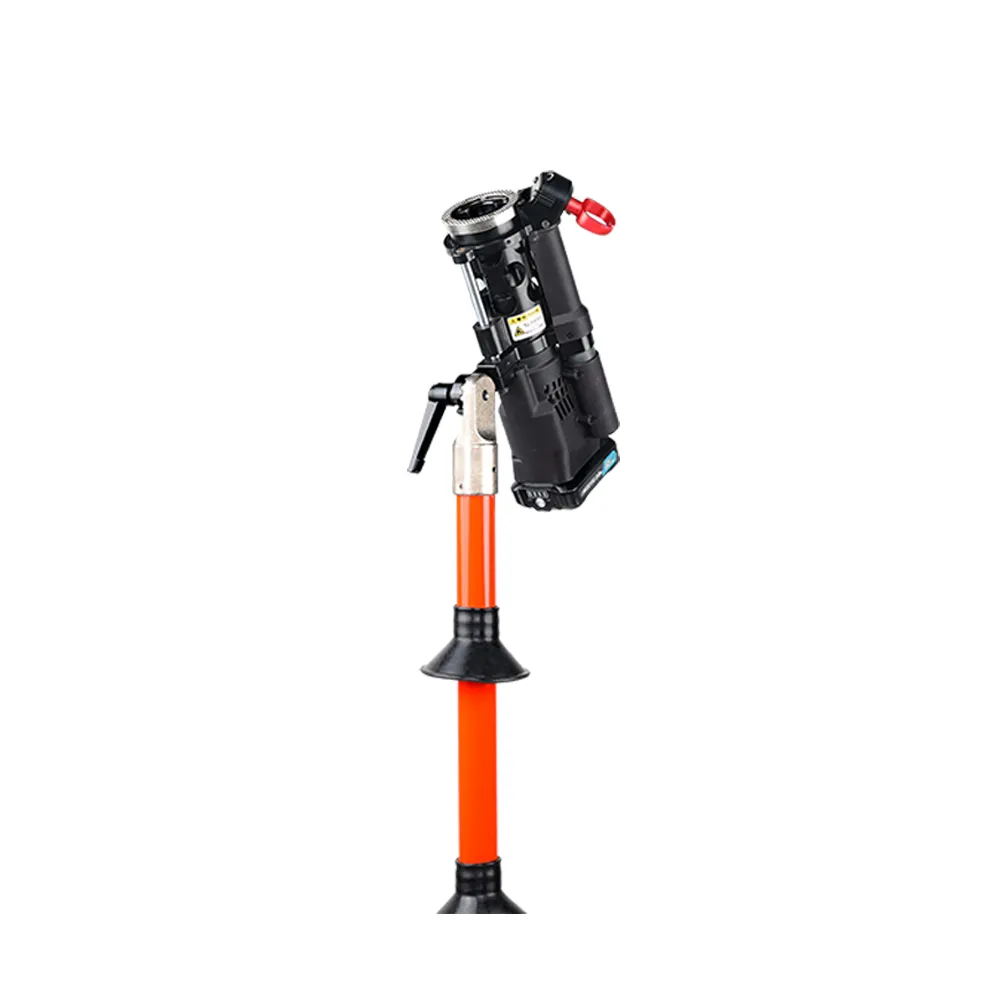

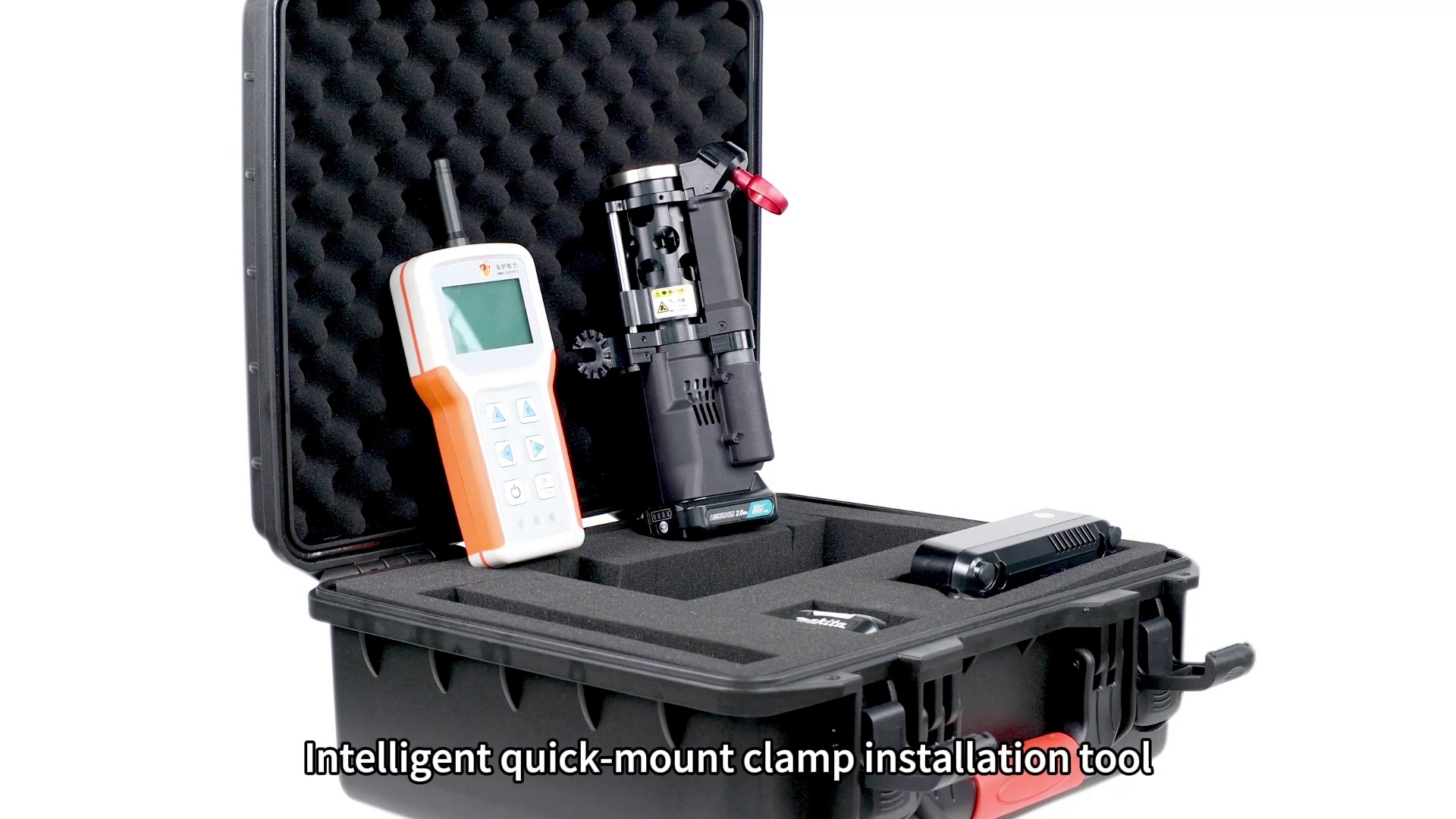

AHSE-PIWC-2 Intelligent Quick-mount Clamp Installation Tool
Applicable for various operation methods in live distribution network maintenance, including ground potential operations
in mountainous areas, short pole operations using bucket trucks, and glove operations. It enables efficient and high-quality installation of pre-assembled lead-type quick-mount clamps with hanging ring screws (e.g., S-type clamps, most throat clamps, etc.) during live line connection operations.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Features :
1. Adaptive hanging ring screw locking: wide compatibility, strong versatility, and simple operation.
2. All direction adjustable clamp locking: supports multi-an-gle adjustment with strong adaptability to various line configurations.
3. Preset bolt tightening torque: the tool is equipped with a preset bolt tightening torque function for precise installation.
4. Emergency mechanical unlocking: to handle extreme tool malfunctions and facilitate recovery.
|
Parameters
|
AHSE-PIWC-2
|
|
Voltage level for live-line work support
|
10 kV and below
|
|
Live Work Methods
|
Ground potential, intermediate potential
|
|
Outer Diameter Range for Hanging Ring
|
25-40mm
|
|
Cable Diameter Range for Hanging Ring
|
5.5-8mm (without insulation block) 3.5-6mm (with insulation block)
|
|
Extension Stroke Range
|
10-55mm
|
|
Extension Speed
|
8mm/s
|
|
Impact Time Seting Range of Impact Wrench
|
0.5-5.0s (0.1-second precision adjustable)
|
|
Number of Conductors Installed per Full Battery
|
Approx. 30 conductors
|
|
Standard Accessories
|
Remote control, insulating stick(3 sections, 4 meters totally), dual-purpose hook
stick(2sections, 3m totally), two battries, two chargers
|
