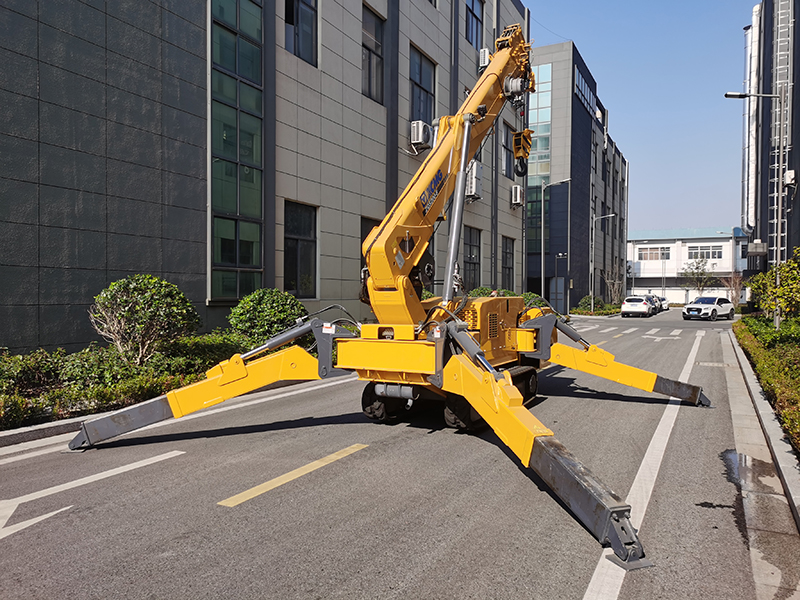

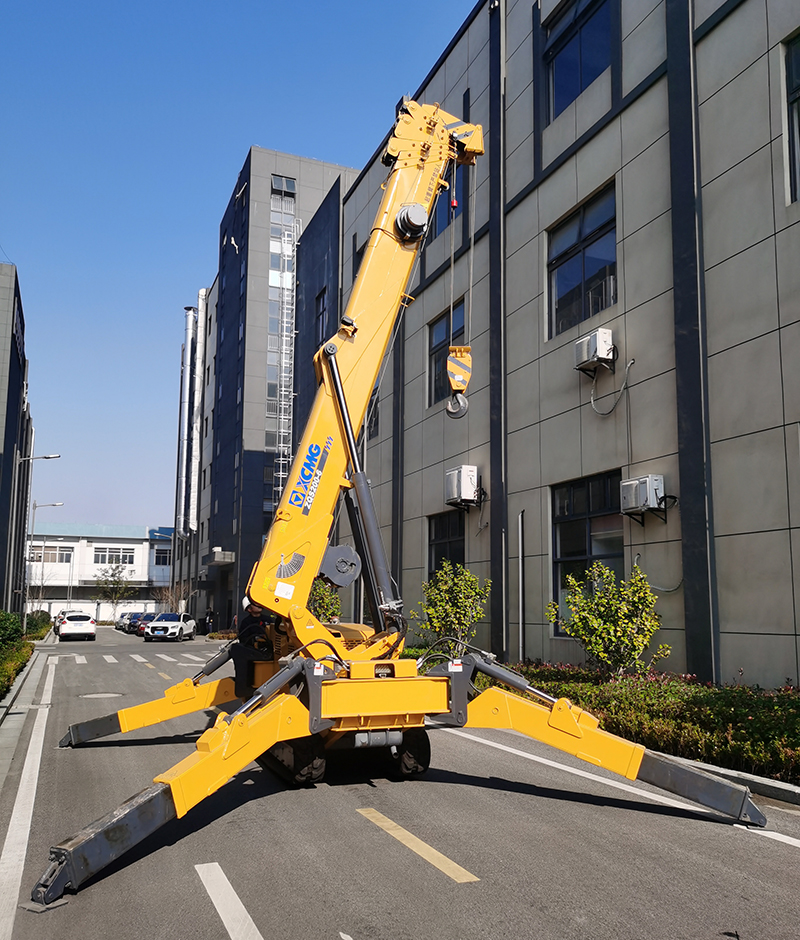

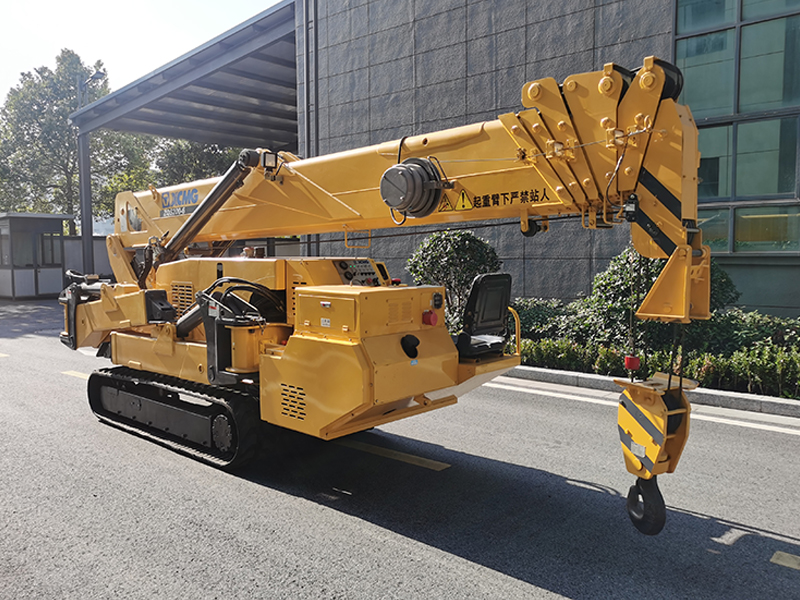

8T Mini Crawler Crane

◢ HXB8.0 features maximum 8t lifting capacity to allow heavy load lifting operation.

Operated either from the onboard operator seat or from a distance using a wireless remote control.

◢ Five-section hydraulic boom to make its maximum lifting height 20.6m. 1360mm wide folded size for maneuvering into restricted

or confined working are and it is compact enough to travel through a standard size double doorway.

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Overview

Features:

◢ Total width 1.36m

◢ 8.0ton max capacity

◢ 5-section hydraulic boom

◢ Diesel powered with electric option

◢ No length increase with electric option

◢ Wireless remote control as standard

◢ Moment limiter(safe load indicator)

◢ Overwinding warning system

◢ Overload warning and tilt alarm

◢ Pressure relief valve and counterbalance valves

Parameters

Crane capacity	Capacity	8.05t×1.8m
Max working radius	Max.	20m
Max lifting height	Approx	21.38m
Winch	Hook up speed	17m/min（6 falls）
Winch	Diameter and length of wire rope	Φ10mm×1.25m
Telescopic system	Telescopic system	5 - section automatic
Telescopic system	Boom length	5.6 - 20.68m
Derrick	Derricking angle	0 - 80°
Slewing	Slewing angle	360° continuous
Outrigger	Form of outrigger	First phase - automatic, second phase - manual
Outrigger	Max. extend range	5170×5807×5423mm
Traction system	Travel	Hydraulic
	Travel speed	0 - 3km/h
	Track	Synthetic rubber
	Gradeability	36%
	Track ground pressure	63.2kPa
Hydraulic tank capacity	120L
Dimension(folded)	5900×1360×2080mm
Engine	Diesel	Weichai: WP3.2, 36.8kW / tank capacity 70L
Motor	Power	15kW
Motor	Voltage	380V
Weight	Unladen	7680kg
Safety device	Moment limiter, outrigger interlock system, over - winding alarm, automatic winding brake, overload warning alarm and lamp, boom angle indicator, balance valves at derricking cylinder and telescopic cylinder, hydraulic locks at outrigger cylinder, hook safety lock pin (spring pin), emergency stop button.
Standard	Moment limiter, wireless remote control, over - winding alarm, overload warning alarm, overload warning lamp, automatic hook stow
Optional	Single hook, dual power electric motor, white tracks, fly jib, working basket, glass lifter, outrigger mats, customized color

Features
