5T Mini Crawler Crane

HXB5.4 features maximum lifting height 16.9m with 5-section hydraulic boom, 5.4t maximum load capacity.
Operated either from the onboard operator seat or from a distance using a wireless remote control. With a 16m working radius, the
long and compact boom helps various lifting situation. It is compact enough to travel through a standard size double doorway.

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Overview

Features:

◢ Total width 1.36m

◢ 5.4ton max capacity

◢ 5-section hydraulic boom

◢ Diesel powered with electric option

◢ No length increase with electric option

◢ Wireless remote control as standard

◢ Moment limiter(safe load indicator)

◢ Overwinding warning system

◢ Overload warning and tilt alarm

Parameters

Crane capacity	Capacity	5.4t×1.86m
Max working radius	Max.	16m
Max lifting height	Approx	16.9m
Max underground lift		21m
Winch	Hook up speed	10m/min (4 falls)
Winch	Diameter and length of wire rope	Φ10mm×80m
Telescopic system	Boom length	4.78 - 16.6m
	Telescoping speed	11.82m/27.6 seconds
	Boom type	5 - section hydraulically box beam, telescoping boom
Derrick	Derricking angle/speed	0 - 80°/25 seconds
Slewing	Slewing angle	360° (continuous) 1.7rpm

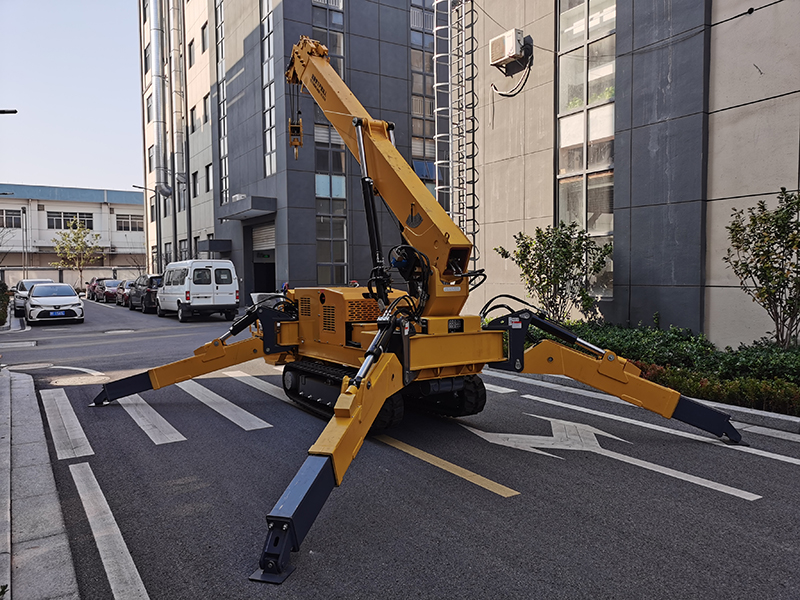

Outrigger	Form of outrigger	Automatic
Outrigger	Max. extend range	5170×5807×5423mm
Traction system	Drive	Hydrostatic, stepless forward and reverse
	Travel speed	0 - 3km/h
	Gradeability	32%
	Track	Synthetic rubber
	Track ground length	2.1m
	Track ground pressure	53kPa
	Track width	300mm
Engine	Diesel	Diesel engine: Weichai / WP3.2 / 36.8kW / tank capacity 50L
Dual power optional	Diesel + electric motor
Motor	Power	7.5kW
Motor	Voltage	380V/50Hz and optional for others
Remote control	Operation	Boom rotation, boom derricking, boom telescopic, hook up and down, emergency stop button
Dimension	Folded	5000(L) × 1360(W) × 1980(H) mm
Weight	Unladen	6700kg
Hydraulic tank capacity	90L
Safety device	Moment limiter, outrigger interlock system, over - winding alarm, automatic winding brake, overload warning alarm and lamp, boom angle indicator, balance valves at derricking cylinder and telescopic cylinder, hydraulic locks at outrigger cylinder, hook safety lock pin (spring pin), emergency stop button
Standard	Moment limiter, wireless remote control, over - winding alarm, overload warning alarm, overload warning lamp
Optional	Single hook, dual power electric motor, white tracks, fly jib, working basket, glass lifter, outrigger mats, customized color
