3T Mini Spider Crawler Crane

HXB3.0 features maximum 3t lifting capacity to allow heavy load lifting operation.
Five-section hydraulic boom to make its maximum lifting height 9.5m. 800mm wide folded size for maneuvering into restricted or
confined working area and capable to pass through standard size single doorway

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Overview

Features：
Total width 800mm
3ton max capacity
9.5m max lifting height
Max working radius 8.45m
Petrolpowered with electric option
Diesel powered with electric optioneNo length increase with electric option
Wireless remote control as standard
Moment limiter(safe load indicator)
Overwinding warning system
Overload warning and tilt alarm

Parameters

Crane capacity	Capacity	3.0t×1.3m
Max working radius	Max .	8.45m
Max lifting height	Approx	9.5m
Winch	Hook up speed	5.5m/min（4 falls）
Winch	Diameter and length of wire rope	∅8mm×50m
Telescopic system	Rope length	2.56 - 8.92m
	Telescoping speed	6.36m/25 seconds
	Boom type	5 - section hydraulically box - beam, telescoping boom
Derrick	Derricking angle/speed	0 - 75°/2.3 seconds
Slewing	Slewing angle	360° (continuous) angle / 0.6rpm
Outrigger	Form of outrigger	First phase - automatic / Second phase - manual
Outrigger	Max. extend range	Distance between two outriggers 4.04m (width) ×3.47m (length)
Traction system	Drive	Hydrostatic, stepless forward and reverse
	Travel speed	0 - 3km/h
	Gradeability	30%
	Track	Synthetic rubber
	Track ground length	1.4m
	Track ground pressure	37.5Kpa
	Track width	200mm
Engine	Choose diesel or gasoline	Diesel engine: Yanmar / 1100NG - METM / 7.4kw / tank capacity 5.4L Gasoline engine: Honda / GX390 / 9kw / Electric start / tank capacity 6L
Dual power optional	Diesel + Electric motor / Gasoline + Electric motor
Motor	Power	3KW
Motor	Voltage	380V/50Hz and optional for others
Remote control	Operation	Boom rotation, boom derricking, boom telescopic, hook up and down, emergency stop button (Optional outriggers winch remote control)
Dimension	Folded	3000(L)×800(W)×1500(H)mm
Weight	Unladen	2400kg
Hydraulic tank capacity	38L
Safety device	- Moment limiter, outrigger interlock system, over - winding alarm, automatic winding brake, overload warning alarm and lamp, boom angle indicator, balance valves at derricking cylinder and telescopic cylinder, hydraulic locks at outrigger cylinder, hook safety lock pin (spring pin), emergency stop button
Standard	Moment limiter, wireless remote control, over - winding alarm, overload warning alarm, overload warning lamp
Optional	Single hook, dual power electric motor, gasoline engine, white tracks, fly jib, working basket, glass lifter, outrigger mats, customized color

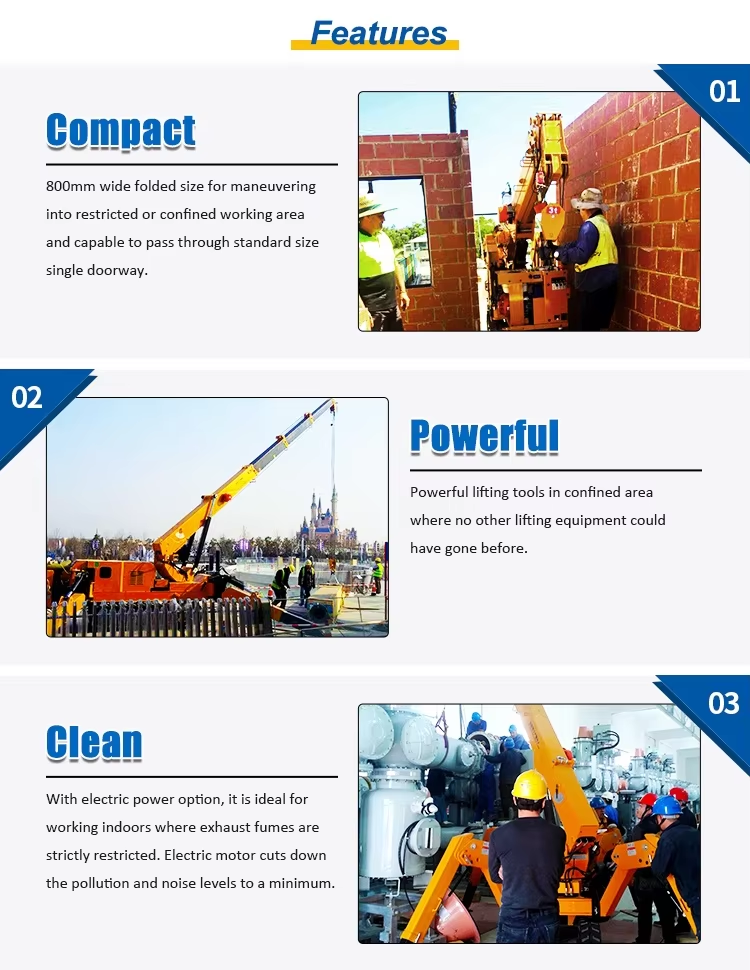

Features

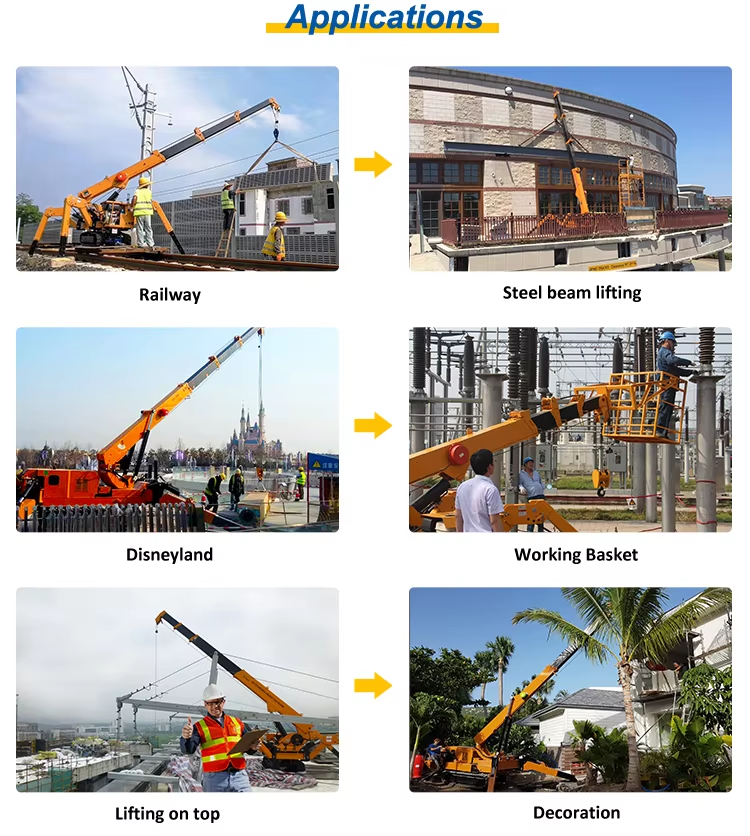

Application
