TCT-200F CT and PT Analyzer
TCT-200F CT and PT Analyzer
TCT-200F CT and PT Analyzer
TCT-200F CT and PT Analyzer

TCT-200F CT and PT Analyzer

1.Fast test(＜1min)

2.Ability to test both CT and PT

3.Portable to carry

4.CT kneepoints up to 60 kV

5.Performs secondary burden tests

6.Meet IEC 61869, IEEE C57.13, GB 61869 standards

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview

Overview

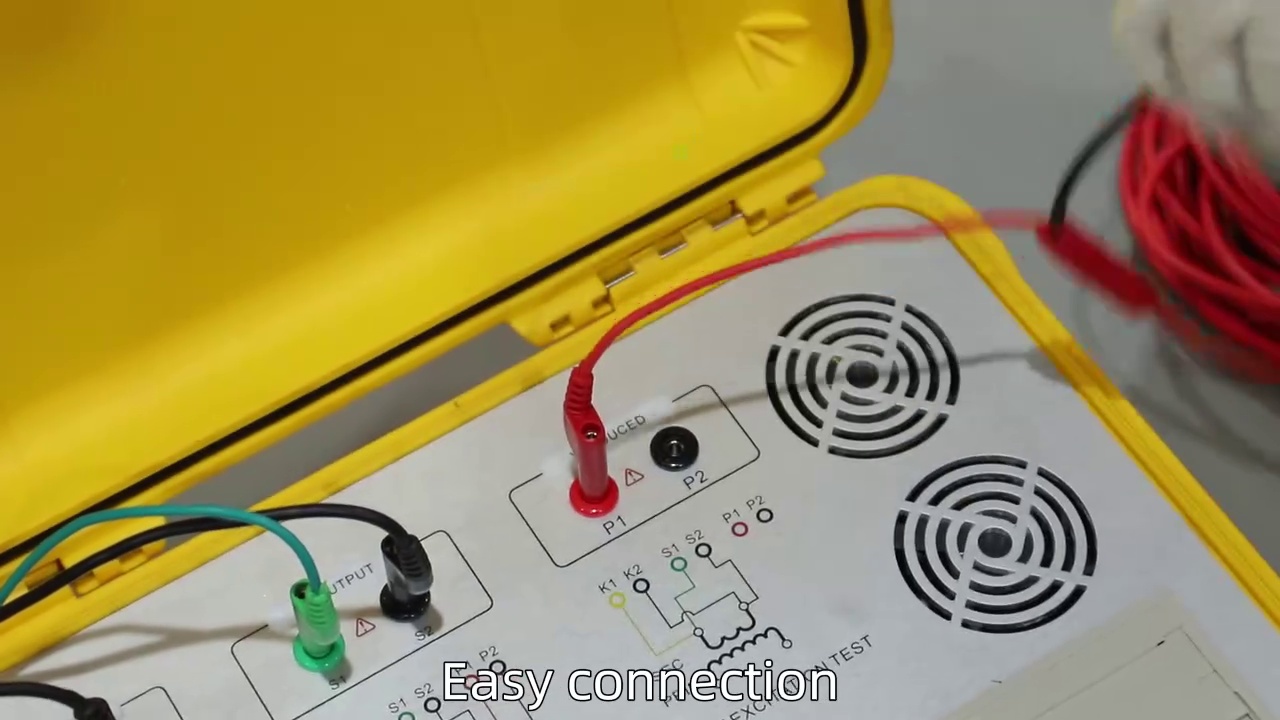

The TCT-200F test set is a lightweight, robust, portable unit capable of testing saturation, ratio, polarity, winding resistance tests on CT and PT

Parameters

Output 0~180Vrms，12Arms，36A（peak value）
Voltage measurement accuracy ±0.1%
CT ratio Range 1~40000
Accuracy ±0.05%
PT ratio Range 1~40000
Accuracy ±0.5%
Phase Accuracy ±2min
Resolution 0.5min
DC resistance Range 0~300Ω
Accuracy 0.2%±2mΩ
Burden Range 0~1000VA
Accuracy 0.2%±0.02VA
Input power 160-240 VAC，50/60 Hz
Environmental conditions Operating temperature: -10℃~50℃
Humidity: ≤90%
Net size 410×340×195mm
Net weight 9.5kg (without measuring cables)

 Features

 Applications

1.Ratio and phase accuracy winding resistance

2.Excitation characteristics (knee points)

3.Composite error (ALF, FS)

4.Burden impedance

5.Transient CT classes and parame ters (TPS, TPX,TPY and TPZ type CTs)

6.Transient dimensioning factor (Ktd)

7.If missing/unknown:CT type, class,ratio, knee point, power factor,nominal burden, operating burden etc

    Parameters

    Parameters

    Output 0~180Vrms，12Arms，36A（peak value）
    Voltage measurement accuracy ±0.1%
    CT ratio Range 1~40000
    Accuracy ±0.05%
    PT ratio Range 1~40000
    Accuracy ±0.5%
    Phase Accuracy ±2min
    Resolution 0.5min
    DC resistance Range 0~300Ω
    Accuracy 0.2%±2mΩ
    Burden Range 0~1000VA
    Accuracy 0.2%±0.02VA
    Input power 160-240 VAC，50/60 Hz
    Environmental conditions Operating temperature: -10℃~50℃
    Humidity: ≤90%
    Net size 410×340×195mm
    Net weight 9.5kg (without measuring cables)
    Features

    Features

    Applications

    Applications

    1.Ratio and phase accuracy winding resistance

    2.Excitation characteristics (knee points)

    3.Composite error (ALF, FS)

    4.Burden impedance

    5.Transient CT classes and parame ters (TPS, TPX,TPY and TPZ type CTs)

    6.Transient dimensioning factor (Ktd)

    7.If missing/unknown:CT type, class,ratio, knee point, power factor,nominal burden, operating burden etc
