Product Overview
Product Details
Section 1：Low-voltage Insulator Cover
This cover is used for insulating and shielding insulators during construction, preventing accidental human contact with live conductors.
1.Model: AHIS-IST-0-1 Low-voltage Single-sided Insulator Cover
|
Model
|
AHIS-IST-0-1
|
|
Dimension
|
181×104×130 mm
|
|
AC Proof Test Voltage
|
5 kV/3 min
|
|
AC Max Use Voltage
|
1 kV
|
|
Material
|
Rubber
|
2.Model: AHIS-IST-0-2 Low-voltage Double-sided Insulator Cover
|
Model
|
AHIS-IST-0-2
|
|
Dimension
|
257x104x145 mm
|
|
AC Proof Test Voltage
|
5 kV/3 min
|
|
AC Max Use Voltage
|
1 kV
|
|
Material
|
Rubber
|
Section 2：Insulator Cover
1.Production process: Integrated injection molding.
2.Application: Insulates live conductors during live distribution network operations.
3.Installation: Use insulating gloves or a gun-style hot stick.
4.Features: Both the conductor shield and the insulator shield can be combined with similar products from leading brands, and the connection system offers universal compatibility.
5.Purpose: Protects workers from accidental contact with live components during line maintenance.
3.Model: AHIS-IST-3-1P
|
Model
|
AHIS-IST-3-1P
|
|
Type
|
With universal adapter
|
|
AC Proof Test Voltage
|
24 kV/1 min
|
|
AC Max Use Voltage
|
26.4 kV
|
|
Material
|
High-density polyethylene
|
|
Dimensions
|
533x216x305 mm
|
|
Weight
|
1.4 kg
|
4.Model: AHIS-IST-4-1P
|
Model
|
AHIS-IST-4-1P
|
|
Type
|
With universal adapter
|
|
AC Proof Test Voltage
|
32 kV/1 min
|
|
AC Max Use Voltage
|
36.6 kV
|
|
Material
|
High-density polyethylene
|
|
Dimensions
|
600x300x450 mm
|
|
Weight
|
1.8 kg
|

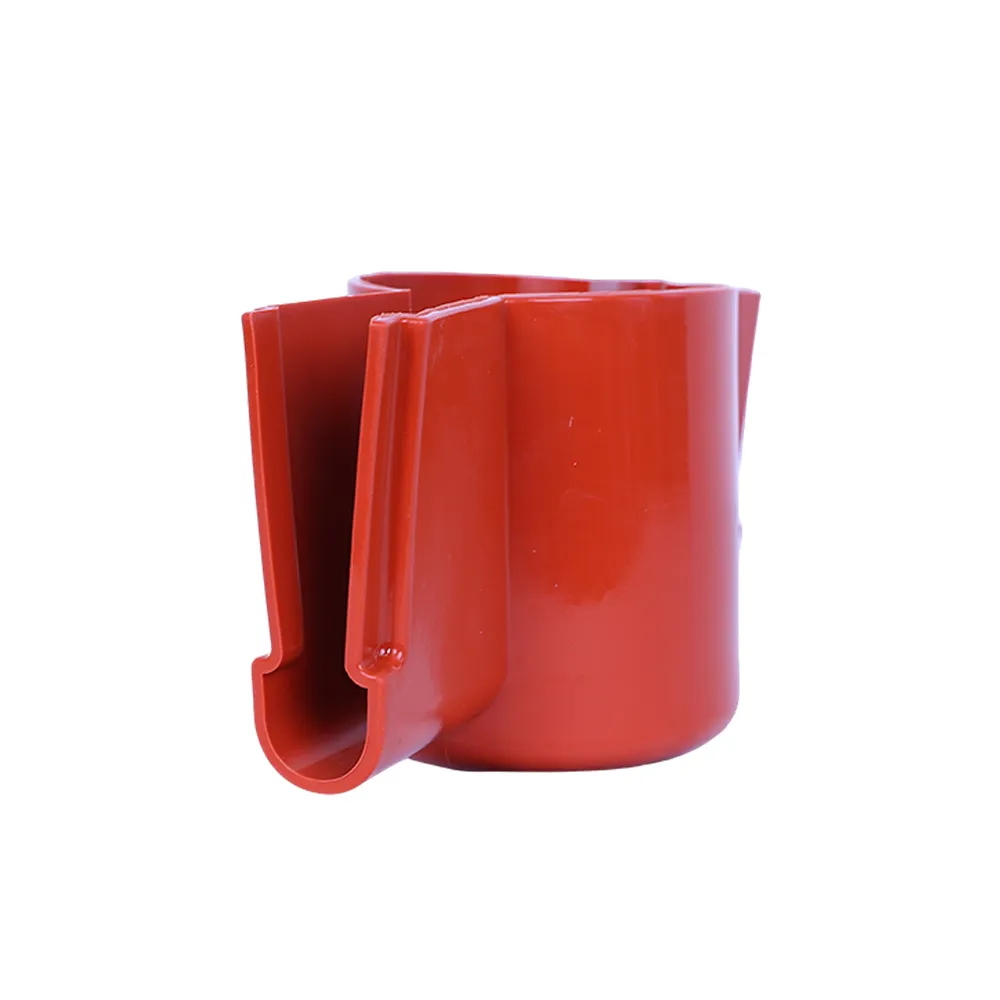

5.Model: AHIS-IST-3-1R UH Needle Type insulator Cover
1.Features: Covers insulators up to ANSI C29.55. Side cuts allow for use on smaller insulators without the need for cross arms.
2.Purpose: Protects workers from accidental contact with live components during line maintenance.
|
Model
|
AHIS-IST-3-1R
|
|
Material
|
Rubber
|
|
Compatible conduit size
|
40 mm
|
|
Compatible insulator grades
|
55-(1/2/3/4/5)
|
|
Inner diameter x height
|
184x300 mm
|
|
Weight
|
4.4 kg
|
|
AC Proof Test Voltage
|
30 kV/3 min
|
|
AC Max Use Voltage
|
26.5 kV
|
Section 3：Line Hardware Covers
6.Model: AHIS-XA-2-1R Cross Arm Cover
1.Purpose: Cover the cross arm of the distribution line.
2.Protects workers from accidental contact with live components during line maintenance.
|
Model
|
AHIS-XA-2-1R
|
|
Material
|
Rubber
|
|
Dimensions
|
368x117x105 mm
|
|
Applicable crossarm
|
102x114 mm
|
|
Weight
|
1.4 kg
|
|
AC Proof Test Voltage
|
20 kV/3 min
|
|
AC Max Use Voltage
|
17 kV
|
7.Model: AHIS-FU-2-1R Drop-out Fuse Cover
1.Features: Soft and flexible, easy to operate, can be installed using an insulated operating rod.
2.Purpose: Protects workers from accidental contact with live components during line maintenance.
|
Model
|
AHIS-FU-2-1R
|
|
Material
|
Rubber
|
|
Dimensions
|
600x376x88 mm
|
|
Weight
|
2.3kg
|
|
AC Proof Test Voltage
|
20 kV/3 min
|
|
AC Max Use Voltage
|
17 kV
|
8.Model: AHIS-SA-2-1R Arrester Cover
1.Features: Slotted design facilitates installation on live arresters using gloves or hot sticks. The circular hole on the top is designed for use with a lever, facilitating live removal of the shield.
2.Purpose: Protects workers from accidental contact with live components during line maintenance.
|
Model
|
AHIS-SA-2-1R
|
|
Material
|
Rubber
|
|
Inner diameter x Height
|
115x380 mm
|
|
Weight
|
1.26kg
|
|
AC Proof Test Voltage
|
20 kV/3 min
|
|
AC Max Use Voltage
|
17 kV
|
9.Model: AHIS-FU-3-1P Fuse Cover
1.Features: Soft and flexible, easy to operate, can be installed using an insulated operating rod.
2.Purpose: Protects workers from accidental contact with live components during line maintenance.
|
Model
|
AHIS-FU-3-1P
|
|
Material
|
Polyethylene
|
|
Dimensions
|
670x400x165 mm
|
|
Weight
|
1.8kg
|
|
AC Proof Test Voltage
|
24 kV/1 min
|
|
AC Max Use Voltage
|
26.4 kV
|
10.Model: AHIS-UP-4 Series Pole Guard
1.Features: The Pole Guard's connection has an overlapping section.
2.Purpose: Prevents accidental contact with live components during pole removal/installation and other line maintenance.
|
Model
|
Diameter
|
Material
|
Height
|
Weight
|
|
AHIS-UP-4-1P
|
22.9 cm
|
ABS plastic
|
30 cm
|
1.8 kg
|
|
AHIS-UP-4-2P
|
22.9 cm
|
ABS plastic
|
60 cm
|
2.7 kg
|
|
AHIS-UP-4-3P
|
22.9 cm
|
ABS plastic
|
120 cm
|
5.0 kg
|
|
AHIS-UP-4-4P
|
22.9 cm
|
ABS plastic
|
180 cm
|
5.9 kg
|
