Products

Flexible & Low-voltage Conductor Covers

  • Soft Cover For Conductor
  • Low-voltage Soft Conductor Cover
  • Low-voltage Hard Conductor Cover
  • Insulating Cover For Jumper Cable
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Overview

 Product Details

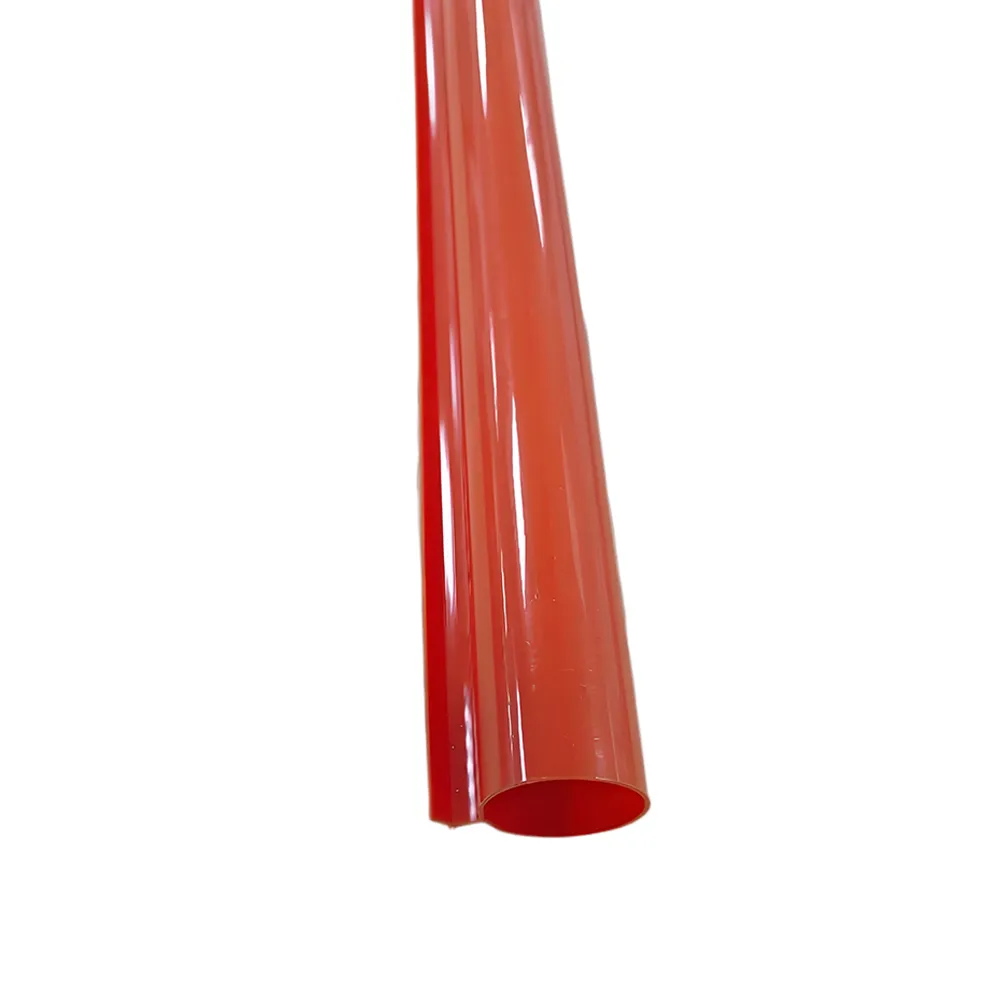

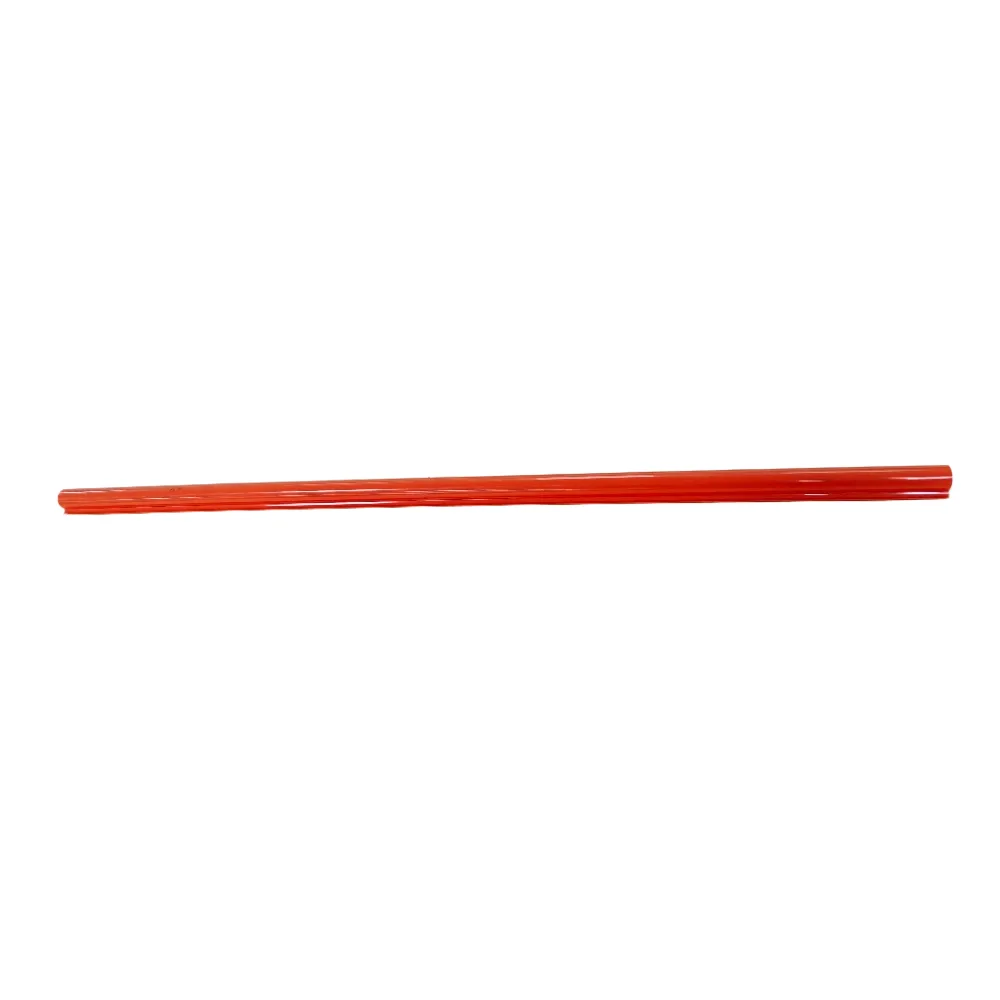

1.Model: AHIS-CDT Series Soft Cover For Conductor

Features:

Soft and flexible, easy to operate.Good softness in a cold climate to prevent ozone and ultravioletdamage.
Protects workers from accidental contact with live components during line maintenance.
 Class 3
AC Proof Test Voltage - 30 kV/3 min
AC Max Use Voltage - 26.5 kV
Model
AHIS-CDT-3-14R
Length
1.37 m
Material
Rubber
Diameter
31.5 mm
Weight
2.7 kg
 Class 2
AC Proof Test Voltage - 20 kV/3 min
AC Max Use Voltage - 17 kV
 Class 3
AC Proof Test Voltage - 30 kV/3 min
AC Max Use Voltage - 26.5 kV
Features:
Each interface with a ridge structure ensures a secure connection.
Model
AHIS-CDT-2-14CR (Class 2)
AHIS-CDT-3-14CR (Class 3)
Length
1.37 m
Material
Rubber
Diameter
31.5 mm
Weight
2.7 kg

2.Model: AHIS-CDT-0 Series Low-voltage Conductor Cover

Features:

This low-voltage conductor cover is easy to install, fits good to the conductor, and offers excellent weather resistance.
It is suitable for various low-voltage lines, adapts to diverse outdoor environments, and effectively ensures operational safety.
AHIS-CDT-0-10 Low-voltage Soft Conductor Cover
Model
AHIS-CDT-0-10
Length
1 m
Inner Diameter
22 mm
AC Proof Test Voltage
5 kV/3 min
AC Max Use Voltage
1 kV
Material
Synthetic rubber
AHIS-CDT-0-15 Low-voltage Hard Conductor Cover
Model
AHIS-CDT-0-15
Length
1.5 m
Inner Diameter
26 mm
AC Proof Test Voltage
5 kV/3 min
AC Max Use Voltage
1 kV
Material
PC

3.Model: AHIS-CDT-2-06J Insulating Cover For Jumper Cable

Features:

This rubber cover is used as protective equipment to shield workers from accidental contact with live wires.
It is primarily used for insulating and shielding down-leads in distribution network lines.
Model
AHIS-CDT-2-06J
Length
0.6 m
Inner Diameter
30 mm
AC Proof Test Voltage
20 kV/3 min
AC Max Use Voltage
17 kV
