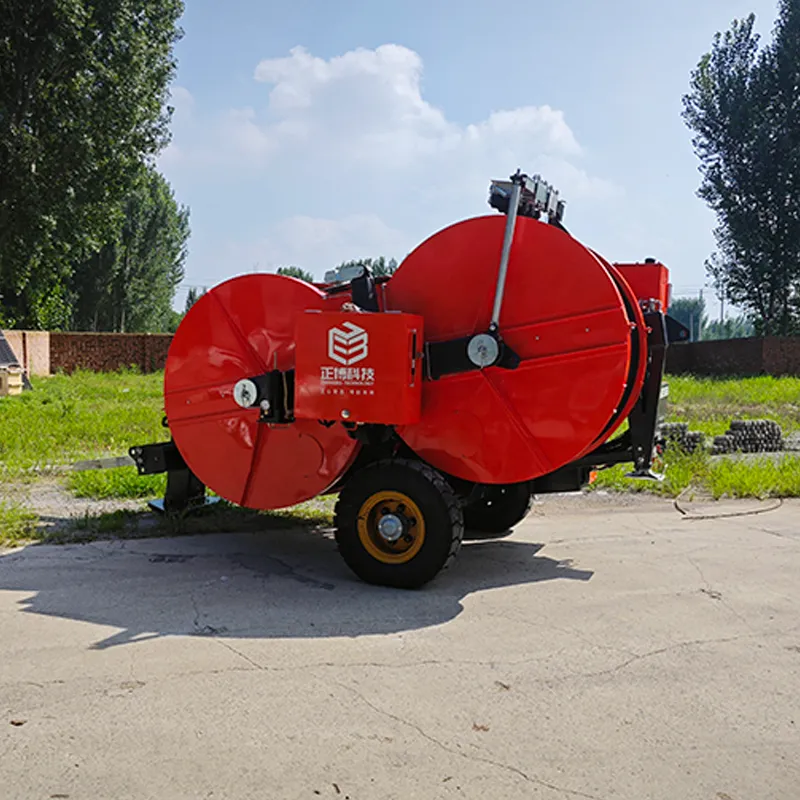

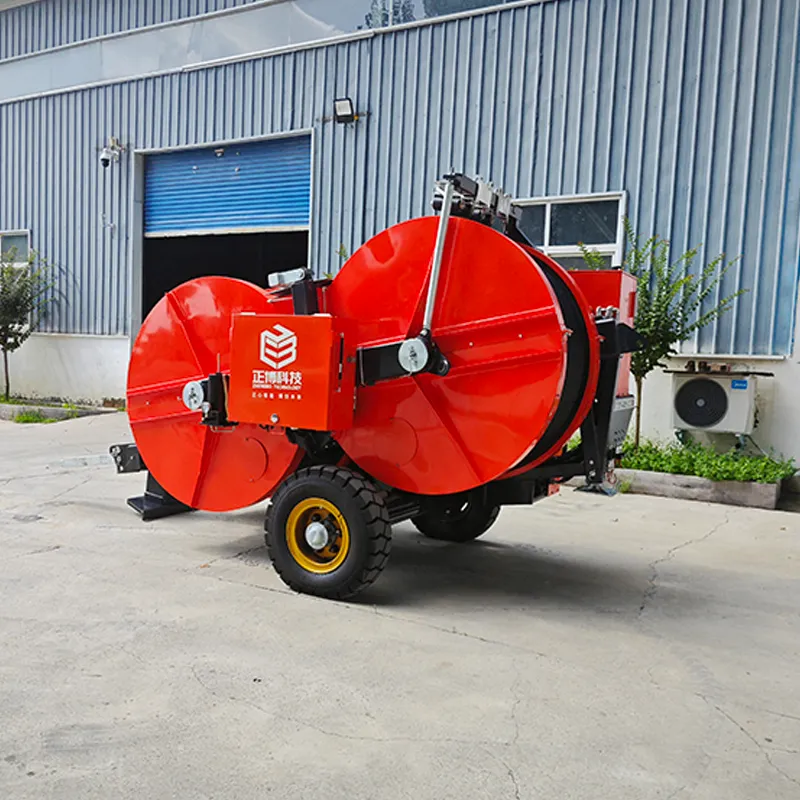

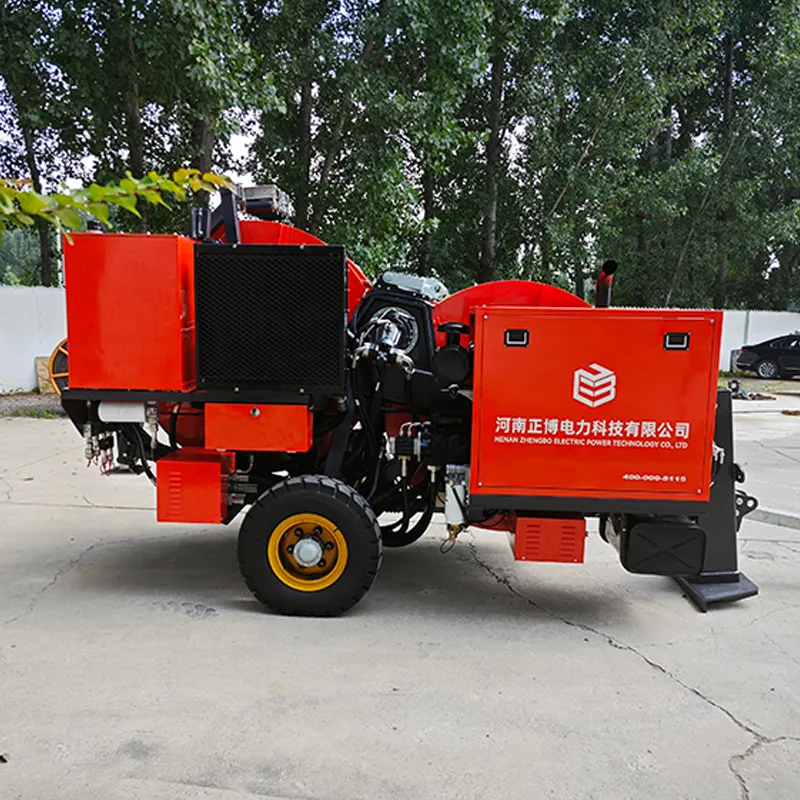

SA-ZY-2X50 Cable Stringing Puller Hydraulic Tensioner
1. Intelligent Control
2. Smart Operation
3. Smart cable
4. Intelligent lubrication
2. Smart Operation
3. Smart cable
4. Intelligent lubrication
5. Working parameter display and setting
6. “Black box” recording function
7. Anti-slip, load start
8. Meet the standards of centralized control and visual tension stringing
6. “Black box” recording function
7. Anti-slip, load start
8. Meet the standards of centralized control and visual tension stringing
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
In transmission and distribution industry, the whole set of construction technology, which uses tensioners, pullers and other main equipment to make the conductor with a certain tension in the air, and uses corresponding methods to tighten the wire, hang the wire and install accessories, is called tension stringing . Generally, traction fields and tension fields are set up at both ends of the line-laying section. The main tools include: tensioner that apply tension to the conductor, Stringing blocks that suspend the conductor in the air, puller that pull the conductor, head boards that connect the conductor and the traction rope, and other auxiliary tools. The equipment that applies tension to the tail end of the conductor is called a tensioner, and the equipment that pulls the guide rope is called a puller .
|
|
Mode
|
SA-ZY-2X50 |
|
Performance
|
Max intermittent tension force
|
2×60kN or 1×120kN
|
|
Max continuous tension force
|
2×50kN or 1×100kN
|
|
|
Corresponding speed
|
2.5km/h
|
|
|
Max continuous pay-off speed
|
5km/h
|
|
|
Corresponding tension force
|
2×25kN
|
|
|
Max counter-pulling force
|
50kN
|
|
|
Max continuous pulling speed
|
4km/h
|
|
|
Structure
|
Tension wheel diameter
|
1500mm
|
|
Applicable max wire diameter
|
40mm
|
|
|
Electrical system
|
24V
|
|
|
Hydraulic power output
|
Can connect to hydraulic wire tail car
|
|
|
Vehicle weight
|
6050kg
|
|
|
Overall dimensions (L*W*H)
|
4510×2200×2600mm
|
|
|
Main Configuration
|
Engine
|
Cummins/Weichai
|
|
Main hydraulic pump
|
Rexroth/linde
|
|
|
Hydraulic motor
|
Rexroth
|
|
|
Reducer
|
RR /Rexroth
|
|
|
Optional
|
Digital control
|
|
|
Centralized control
|
||
|
IoT transmission function
|
||
|
Remote diagnosis syste
m |
||
.webp)
.webp)
.webp)
Parameters
|
|
Model
|
SA-ZY-2X50 |
|
Performance
|
Max intermittent tension force
|
2×60kN or 1×120kN
|
|
Max continuous tension force
|
2×50kN or 1×100kN
|
|
|
Corresponding speed
|
2.5km/h
|
|
|
Max continuous pay-off speed
|
5km/h
|
|
|
Corresponding tension force
|
2×25kN
|
|
|
Max counter-pulling force
|
50kN
|
|
|
Max continuous pulling speed
|
4km/h
|
|
|
Structure
|
Tension wheel diameter
|
1500mm
|
|
Applicable max wire diameter
|
40mm
|
|
|
Electrical system
|
24V
|
|
|
Hydraulic power output
|
Can connect to hydraulic wire tail car
|
|
|
Vehicle weight
|
6050kg
|
|
|
Overall dimensions (L*W*H)
|
4510×2200×2600mm
|
|
|
Main Configuration
|
Engine
|
Cummins/Weichai
|
|
Main hydraulic pump
|
Rexroth/linde
|
|
|
Hydraulic motor
|
Rexroth
|
|
|
Reducer
|
RR /Rexroth
|
|
|
Optional
|
Digital control
|
|
|
Centralized control
|
||
|
IoT transmission function
|
||
|
Remote diagnosis system
|
||
Features
1.Dual-pump dual-motor system.
The engine drives two variable hydraulic pumps through the transfer case. The two variable hydraulic pumps drive two hydraulic motors. The two systems work in parallel to drive the traction wheel to rotate.
2.The traction wheel can rotate forward and reverse
The traction force and traction speed can be controlled steplessly and smoothly, and the traction force can be displayed intuitively.
3.Centralized lubrication system
Which lubricates the traction wheel bearings and open gears through a centralized lubrication pump.
4.Traction force pre-adjustment.
The traction force can be pre-adjusted between 30kN and the maximum value. When the maximum
traction force has been set. the traction force pre-adjustment is not enabled, the traction force will not exceed the maximum set value under any circumstances.
traction force has been set. the traction force pre-adjustment is not enabled, the traction force will not exceed the maximum set value under any circumstances.
5.Rope collection device
The wire rope winding speed matches the traction wheel speed. The wire rope winding speed can be
automatically adjusted to adapt to the change of the drum diameter, and the tail wire rope can maintain the predetermined tension and brake.
automatically adjusted to adapt to the change of the drum diameter, and the tail wire rope can maintain the predetermined tension and brake.
6.Dust-proof device：Added to the hoisting mechanism of the puller to effectively protect the tail frame screw and extend the service life of the screw and slider; a manual device is added to the tail rope arrangement, and this function can still achieve neat cable arrangement for traction ropes of special specifications.
7.Tail rope hydraulic clamping device: When replacing the tail rope reel, there is no need to hold the tail rope by hand. The tail rope hydraulic clamping device is used to make the tail rope replacement safe and reliable. The device is hydraulically controlled and interlocked with the main hydraulic system to prevent misoperation and is safe and reliable.
8.Multiple safety protections, is easy to operate and reliable to use.
