T32 Portable Cable Fault Location System
T32 Portable Cable Fault Location System
T32 Portable Cable Fault Location System
T32 Portable Cable Fault Location System
T32 Portable Cable Fault Location System
T32 Portable Cable Fault Location System

T32 Portable Cable Fault Location System

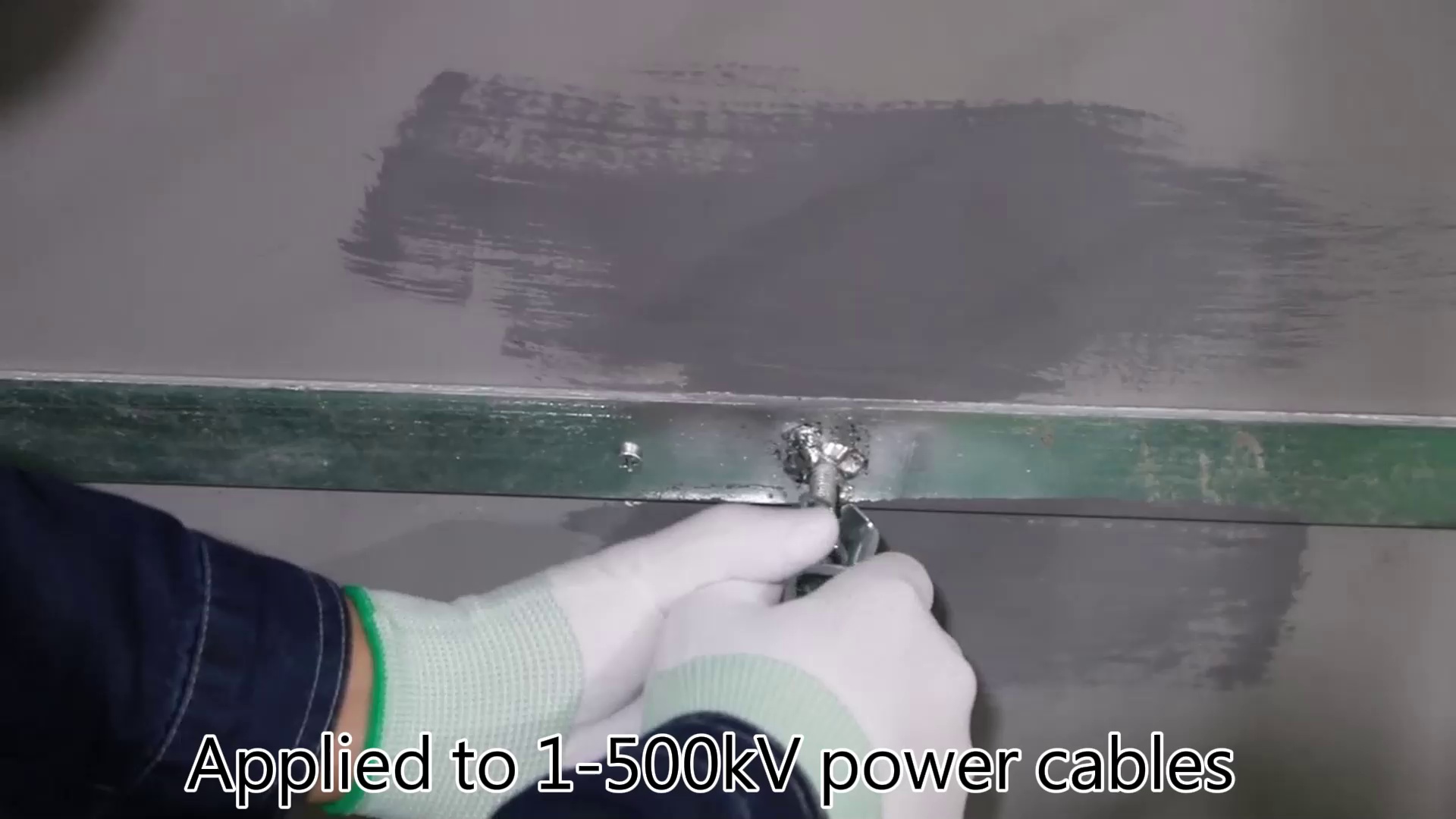

1.Applied to 1-500kV power cables

2.Surging (thumping) 32kV,delivers 2048 J

3.Maximum safety during application

4.Support LV TDR,ICE and ARM prelocation methods

5.Magnetic-acoustic pinpointing

6.Each part can be used independently

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview

Overview

With a split and rugged design, we made T32 to be one of the world's most portable and powerful cable fault locators. We built in kinds of time-domain reflectometer(TDR) methods to pre-locate faults, like LV（low-voltage） TDR , Arc Reflection Method (ARM), Impulse Current Decoupling method (ICE). For multiple types of cable faults.

All parts can be used independently. You can only use our TDR part to test the length of a cable, or can onlyuse Pinpointer to locate a fault while you already have a surge generator.

T32 consists of three parts

  • Fault location surge generator, model LP30/4+
  • Cable fault pre-locator (TDR), model WL50+
  • Cable fault pin-pointer, model PP20

Parameters

Parameters

TECHNICAL DATA
LP30/4+
Output DC HV, LV impulse, HV impulse (single, period), arc stability impulse
Impact voltage 0~32kV continuously adjustable
Max output current 40mA
Discharge energy 2048 J
Impulse period Fixed 5s
Output voltage polarity Negative polarity
Max output power 500W
Safety Temperature detection, automatic loop protection,
double earth system, high voltage key switch
Operating temperature -25°C -50°C
Storage temperature -30°C-60°C
Humidity < 95% no condensation
Power supply AC 220~240V, 50/60Hz, 1kVA
Protection class IP 43
Weight 90kg
Size (L x W x H) 560x620x940mm
PP20
Display 3.5 ", TFT color display, 480 x 320
Backlight LED
Dynamic range Magnetic channel > 99dB; Sound channel > 99dB
Acoustic amplification 99dB, free adjustment
Acoustic magnetic time
difference display		 0.1ms—60ms，synchronous display of historical records
Auditory protection Touch mute sound, sound intensity limit
Positioning accuracy 0.1m
Space sensing function Compass guidance, direction indication, cable position identification
Filtering range Full pass: 100Hz—1500Hz ;Low-pass: 100Hz—400Hz
Band-pass: 400Hz—800Hz ;High-pass: 800Hz—1500Hz
Noise processing Intelligent background noise reduction technology
Interface Acoustic and magnetic pinpoint and audio pinpoint interface; 3.5mm jack
Power Supply DC 7.4V/5200mAh lithium battery
Continuous working time ≥8h
IP Handset IP43, Radar IP64
Packing weight 5.5kg (including plastic case)
Packing size (L x W x H) 420×320×150mm
WL50+
Impulse voltage 50V
Test range 20m-100km @ v/2=80m/μs
Wave speed adjustment 150-300m/us
Impulse width 70ns-15us automatic adjustment
Resolution 0.1m
Time domain accuracy < 50 ppm
Sampling frequency 400MHz
Output impedance 10-50Ω
Working mode LV TDR method; ICE method;
ARM method(secondary impulse method)
Waveform transient comparison Up to 4 waveforms can be compared
Impulse polarity Negative polarity
User interface language English
Data import/export Allowed
Cursor With independent dual cursor control
Screen display 7 ", 800 x 480 LED backlight color display
Screen brightness 800 cd/m² anti-glare capacitor touch screen
Storage ＞10000 test data
Interface Aviation plug, USB2.0
Power consumption 3.5W
Power supply Lithium battery 7.4V, 5200mAh, rechargable
Continuous working time ≥5h
Weight 3.0kg
Size (L x W x H) 270×250×125mm

Features

Features

1.Appearance: portable trolley type, suitable for field work.

2.High integration: integrates discharge capacitor, arc stabilizing unit, controller, booster, rectifer, discharge devicewith simple wiring and convenient operation.

3.Safety: special high-voltage output cable with shielding layer, withstand voltage up to 60kv, and "Emergency HvOFF" switch, which further improves the operation safety.

4.Wide application range: suitable for 0-500kV cable main insulation low resistance earthing, low resistance shortcircuit, high resistance earthing, high resistance short circuit, high resistance leakage, high resistance flashover,intermittent and other high and low resistance cable faults.

5.Output voltage up to 30kV,impact energy up to 1800J.

6.Large capacity output, make pinpoint easier.

7.Sampling frequency:200Hz.

8.High accuracy:0.4m.
