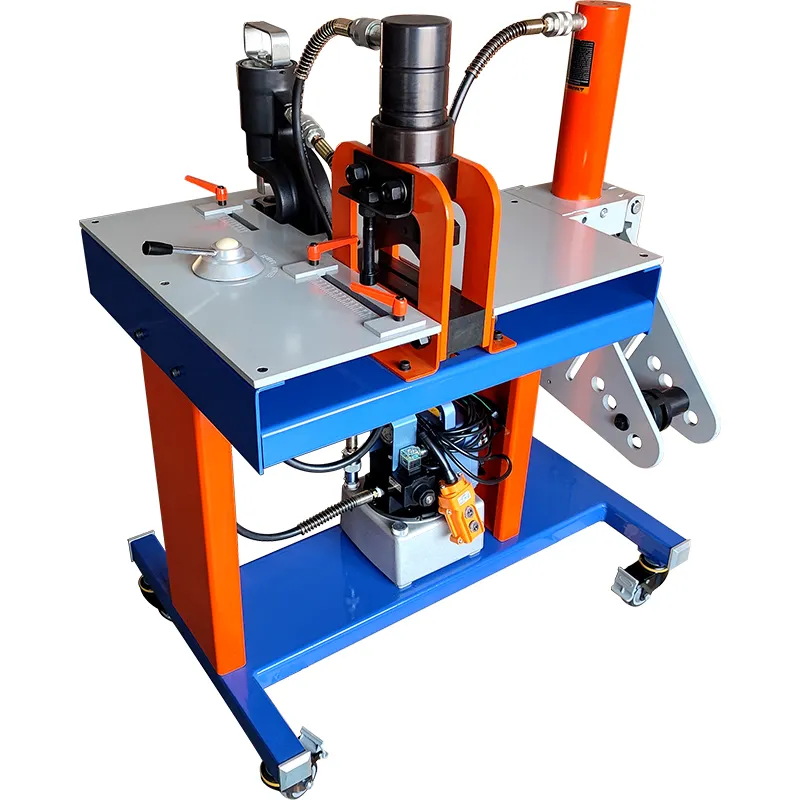

OK-401

OK-401

Bending capacity from 1° to 120°

With positioning scale for punching, cutting and bending

Open working platform enable work piece not oblique after bending

Punch holes with burr. Cutting surface smooth and cutting angle accurately. lt is good for quick and repeat batch procession

Four-way valve control switch accurately quide to the position of punching, cutting and bending

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview

Bending capacity from 1° to 120°

With positioning scale for punching, cutting and bending

Open working platform enable work piece not oblique after bending

Punch holes with burr. Cutting surface smooth and cutting angle accurately. lt is good for quick and repeat batch procession

Four-way valve control switch accurately quide to the position of punching, cutting and bending

Model

OK-401

Function

Cutting, punching, horizontal, bending, vertical bending, pipe bending

Input Power

220V 50Hz

Rated Pressure

700bar

Cutting Force

25t

Punching Force

31t

Bending Force

25t

Cutting Capacity

Cu/Al:150mmx12mm

Horizontal Bending capacity

Cu/Al:125mmx16mm

Vertical Bending Capacity

Cu/Al:125mmx12mm

Pipe Bending capacity

4-13 mm

Punching capacity

/

Standard Punching Dies

 Φ10.5, Φ13.5, Φ17.5, Φ20.5mm

Standard Bending Dies

 Horizontal bending die, Vertical bending die base, 8pcs vertica!bending dies (40-80x4, 40-80x5 40-80x6, 40-80x8, 40-80x10, 100x10, 100-125x10, 120-125x12); 6pcs support blocks(4,5,6,8,10,12) OK-501 have extra pipe bending dies 7pairs(½ ¾ 1 1½ 2 2½ 3)

Work Bench Size

 91x66x116cm

Weigh

 153kg

Optional Accessories

 Φ 8.5,11.5,15.5,18.5mm punching dies (pipe bending dies 1-1/4" is optional)
Parameters

Model

OK-401

Function

Cutting, punching, horizontal, bending, vertical bending, pipe bending

Input Power

220V 50Hz

Rated Pressure

700bar

Cutting Force

25t

Punching Force

31t

Bending Force

25t

Cutting Capacity

Cu/Al:150mmx12mm

Horizontal Bending capacity

Cu/Al:125mmx16mm

Vertical Bending Capacity

Cu/Al:125mmx12mm

Pipe Bending capacity

4-13 mm

Punching capacity

/

Standard Punching Dies

 Φ10.5, Φ13.5, Φ17.5, Φ20.5mm

Standard Bending Dies

 Horizontal bending die, Vertical bending die base, 8pcs vertica!bending dies (40-80x4, 40-80x5 40-80x6, 40-80x8, 40-80x10, 100x10, 100-125x10, 120-125x12); 6pcs support blocks(4,5,6,8,10,12) OK-501 have extra pipe bending dies 7pairs(½ ¾ 1 1½ 2 2½ 3)

Work Bench Size

 91x66x116cm

Weigh

 153kg

Optional Accessories

 Φ 8.5,11.5,15.5,18.5mm punching dies (pipe bending dies 1-1/4" is optional)
Features

Bending capacity from 1° to 120°

With positioning scale for punching, cutting and bending

Open working platform enable work piece not oblique after bending

Punch holes with burr. Cutting surface smooth and cutting angle accurately. lt is good for quick and repeat batch procession

Four-way valve control switch accurately quide to the position of punching, cutting and bending
