BC-200V Busbar Cutting Tool 30t

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview
Model BC-200V
Output Force 30T
Rated Pressure 700bar
Max Cutting Thickness 12mm
Max Cutting Width 200mm
Amount of Oil Required 275ml
Weight 35kg
Dimensions 31*20*42cm
Packing Steel case
Packing Size 38*27*46cm



Features:
1.Quick cutting:Quick cut with smooth cut surface, chipping, cut waste easy to recyle

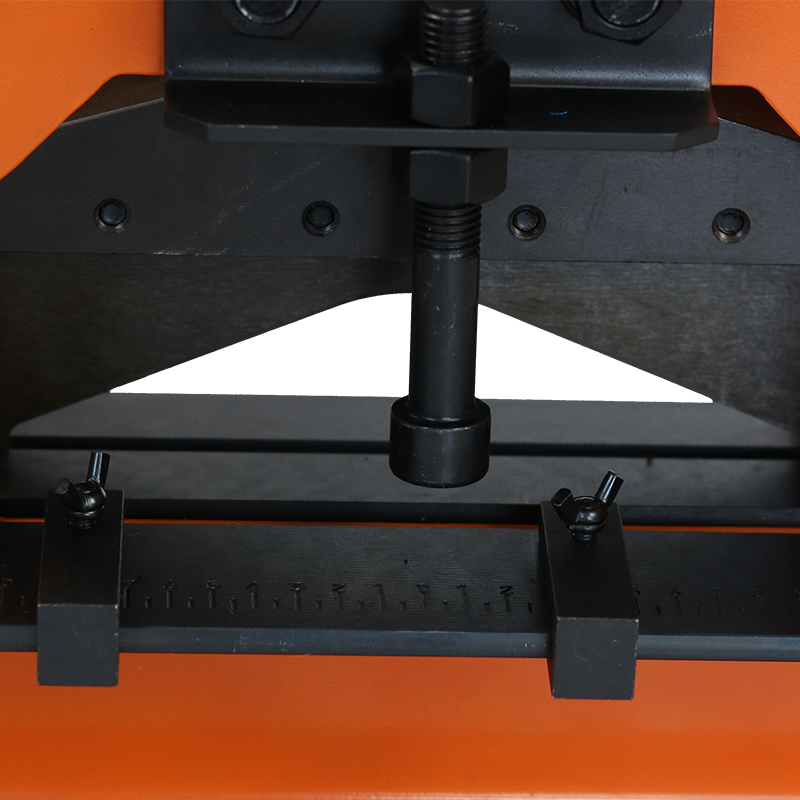

2.V type blade:V-type blade ensure cut surface not depressed, efficient contact area of busbar
3.Scale plate:Scale engraved helps the center adjustment easier
4.Light weight body:Quick coupler for easy disassembly
5.Quick coupler:Powered by single acting hydraulic pump
6.Used to cut Cu and Al busbar



Fashioned with simplicity of use in mind, this has the capacity of cutting copper busbars as much as 200mm by 12mm in space, featuring its powerful 30-ton cutting force and excellent cutting precision. The BC-200V is the ideal machine to the electrical industry which requires exact and accurate cutting results.



This was established using top-quality materials, including a hardened steel blade that is capable of cutting the most challenging materials with ease. The blade is easily replaceable, making maintenance and repairs easy and hassle-free.



It was also beautifully made with safety in mind. The hydraulic system guarantees smooth and controlled cutting with minimal threat of damage. These devices also feature an automatic pressure valve that prevents overloading and protects your investment.



With a compact design a weight of only 120kg, this is uncomplicated to carry around and position in your workshop. In addition, it features an integral foot control, making procedure effortless and convenient for many users.



The BC-200V 30T Hydraulic Copper Busbar Cutting Machine from BETE was made to satisfy the high demands of the current electrical industry. Whether you're working for a large project for accurate cuts or just searching for a simple yet effective machine to deal with your daily cutting requirements, the BC-200V has got you covered.



Parameters
Model BC-200V
Output Force 30T
Rated Pressure 700bar
Max Cutting Thickness 12mm
Max Cutting Width 200mm
Amount of Oil Required 275ml
Weight 35kg
Dimensions 31*20*42cm
Packing Steel case
Packing Size 38*27*46cm
Features
Features:
1.Quick cutting:Quick cut with smooth cut surface, chipping, cut waste easy to recyle
2.V type blade:V-type blade ensure cut surface not depressed, efficient contact area of busbar
3.Scale plate:Scale engraved helps the center adjustment easier
4.Light weight body:Quick coupler for easy disassembly
5.Quick coupler:Powered by single acting hydraulic pump
6.Used to cut Cu and Al busbar



Fashioned with simplicity of use in mind, this has the capacity of cutting copper busbars as much as 200mm by 12mm in space, featuring its powerful 30-ton cutting force and excellent cutting precision. The BC-200V is the ideal machine to the electrical industry which requires exact and accurate cutting results.



This was established using top-quality materials, including a hardened steel blade that is capable of cutting the most challenging materials with ease. The blade is easily replaceable, making maintenance and repairs easy and hassle-free.



It was also beautifully made with safety in mind. The hydraulic system guarantees smooth and controlled cutting with minimal threat of damage. These devices also feature an automatic pressure valve that prevents overloading and protects your investment.



With a compact design a weight of only 120kg, this is uncomplicated to carry around and position in your workshop. In addition, it features an integral foot control, making procedure effortless and convenient for many users.



The BC-200V 30T Hydraulic Copper Busbar Cutting Machine from BETE was made to satisfy the high demands of the current electrical industry. Whether you're working for a large project for accurate cuts or just searching for a simple yet effective machine to deal with your daily cutting requirements, the BC-200V has got you covered.
