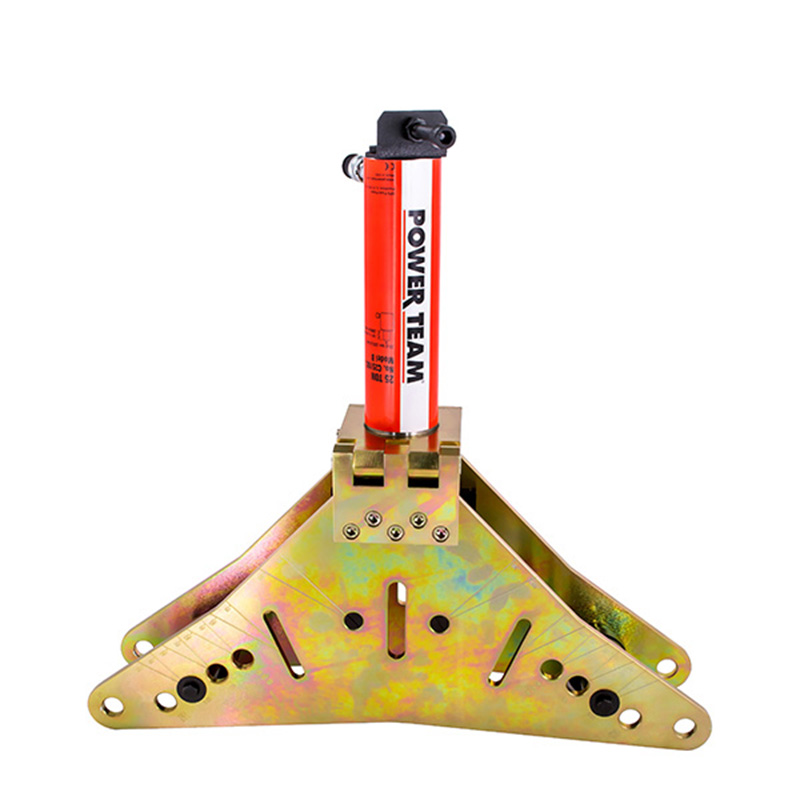

OK-2510-PCL Al alloy multifunctional busbar& pipe bending tool

OK-2510-PCL Al alloy multifunctional busbar& pipe bending tool

Aviation aluminum body with light weight, easy to carry
Powered by single actingelectric hydraulic pump

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview

◢ Aviation aluminum body with light weight, easy to carry
◢ Powered by single acting electric hydraulic pump
◢ 25ton cylinder makes bending powerful, fast and effcient
◢ Clamshell design for easy access
◢ Equipped with quick connectors for easy disassembly
◢ Equipped with angle mark to ensure bending quality
◢ Bend Cu and Al busbar up to 125mm for power plant and substation
◢ One machine with three functions: horizontal bending, vertical bending and pipe bending
◢ Wooden cae for main body, steel case for accessories and pipe bending dies

Model

 OK-2510-PCL
Outout Force 25t
Rated Pressure 700bar
Horizontal Bending Cap. Max 125mmx16mm Cu/Al
Vertical Bending Cap. Max 125mmx12mm Cu/Al
Pipe Bending Cap. 3"
Oil Volume 867ml
Standard Accessories Double offset ring spanner (19"), allen wrench (5mm, 8mm, 10mm), horizontal bending devertical die base, 8pcs vertical bending dies(40-80x4 40-80x5 40-80x6 40-80x8 40-80x10 100x10 120-125x10 120-125x12), 6pcs support blocks (4, 5, 6, 8, 10, 12), oil cylinder screw, 7pcs bending dies (½ ¾ 1 1½ 2 2½ 3); 2pcs leaning dies
Optional Accessories Horizontal bending tripod
Net Weight 39kg

Parameters
Model OK-2510-PCL
Outout Force 25t
Rated Pressure 700bar
Horizontal Bending Cap. Max 125mmx16mm Cu/Al
Vertical Bending Cap. Max 125mmx12mm Cu/Al
Pipe Bending Cap. 3"
Oil Volume 867ml
Standard Accessories Double offset ring spanner (19"), allen wrench (5mm, 8mm, 10mm), horizontal bending devertical die base, 8pcs vertical bending dies(40-80x4 40-80x5 40-80x6 40-80x8 40-80x10 100x10 120-125x10 120-125x12), 6pcs support blocks (4, 5, 6, 8, 10, 12), oil cylinder screw, 7pcs bending dies (½ ¾ 1 1½ 2 2½ 3); 2pcs leaning dies
Optional Accessories Horizontal bending tripod
Net Weight 39kg
Features

◢ Aviation aluminum body with light weight, easy to carry
◢ Powered by single acting electric hydraulic pump
◢ 25ton cylinder makes bending powerful, fast and effcient
◢ Clamshell design for easy access
◢ Equipped with quick connectors for easy disassembly
◢ Equipped with angle mark to ensure bending quality
◢ Bend Cu and Al busbar up to 125mm for power plant and substation
◢ One machine with three functions: horizontal bending, vertical bending and pipe bending
◢ Wooden cae for main body, steel case for accessories and pipe bending dies

Application
