Introduction

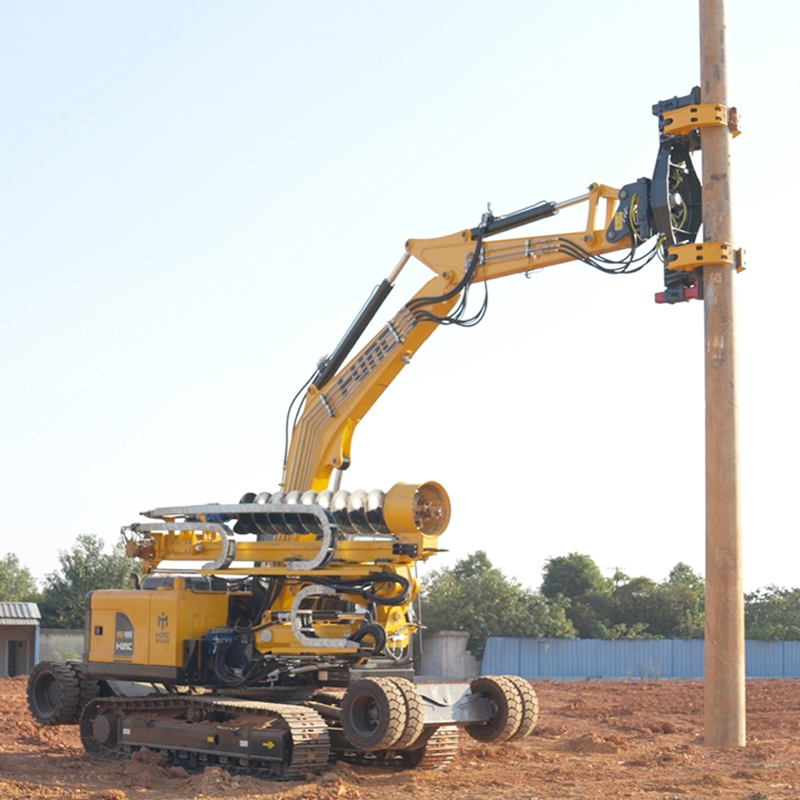

This drilling and pole erecting machine is mainly composed of a special chassis, main arm, auxiliary arm, pole

grabber, hydraulic system, electronic control system, etc. The all-terrain wheel-track integrated chassis can adapt to

field hilly and rice field construction, and can also be transferred autonomously over short distances. It has patented

guide rail spiral drilling technology and intelligent auxiliary control system, which completely solves the safety

hazards of hoisting operations and backfill ramming quality problems in traditional pole erection.

The main arm can dig and erect poles, working accessories can be quickly replaced. Pole erection is a visual

intelligent operation. Pole erection gripper has an intelligent vertical adjustment function and a verticality monitoring

function. Operator can observe the verticality of pole through display screen, making operation simpler and safer.

The auxiliary arm is rail-type high-torque drilling design, which can achieve drilling under different height

differences. The tungsten alloy steel drill teeth have greatly improved cutting ability and wear resistance. Drill arm

has been re-optimized and upgraded to effectively improve the drilling and excavation capabilities. Advanced sensing

technology allows operators to grasp the hole depth and verticality in real time, which fully meets the distribution

network construction process and operation safety requirements.

On paved roads, tires are used for fast transfer, with a driving speed of >10Km/h. On unpaved roads, tracks are

used for off-road driving, with a climbing ability of >70%.

Function:

Excavation, drilling, transporting poles, erecting poles, tamping earth, etc.
