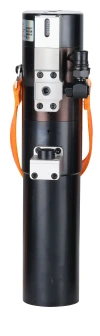

HTE Series Multi-stage Bolt Tensioner For Wind Power
HTE Series Multi-stage Bolt Tensioner For Wind Power
HTE Series Multi-stage Bolt Tensioner For Wind Power

HTE Series Multi-stage Bolt Tensioner For Wind Power

1. With advantages of light, fast, efficient and accurate

2. Small outside diameter with strong force, suitable to use in narrow spaces

3. Spring automatic recovery, with over stroke protection, suitable for frequent use

4. 700-1500 bar working pressure

5. Can work with ultra-high pressure electric stretch pump

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview

1. With advantages of light, fast, efficient and accurate

2. Small outside diameter with strong force, suitable to use in narrow spaces

3. Spring automatic recovery, with over stroke protection, suitable for frequent use

4. 700-1500 bar working pressure

5. Can work with ultra-high pressure electric stretch pump

Model Bolt Size (M) A/F (S) Stretch Force (kN) Cylinder Area (mm²) Stroke (mm) Outside Diameter (mm) Height (mm) Pressure (MPa)
HTE-M30-FD14 30*4 46 656 4373 8 82 200 150
HTE-M36-FD1 36*4 55 741 4945 10 82.5 410 150
HTE-M36-FD2 36*4 55 741 4945 8 82.5 360 150
HTE-M36-FD3 36*4 55 741 5766 10 89.15 260 150
HTE-M36-FD4 36*4 55 741 4945 10 82.5 445 150
HTE-M36-FD6 36*4 55 865 5766 10 92 274 150
HTE-M36-FD10 36*4 55 741 4945 10 82.5 480 150
HTE-M36-FD11 36*4 55 741 4945 8 82.5 480 150
HTE-M36-FD13 36*4 55 662 4906 8 92 210 135
HTE-M36-FD17 36*4 55 741 4945 8 82.5 350 150
HTE-M36-FD19 36*4 55 925 6856 10 98 400 135
HTE-M39-FD9 39*4 55 845 5639 10 91 428 150
HTE-M42-FD7 42*4.5 65 965 6434 10 98 300 150
HTE-M45-FD15 45*4.5 70 1149 8513 10 112 279 135
HTE-M48-FD5 48*4.5 75 1277 8517 10 112 300 150
HTE-M52-FD18 52*5 80 2196 16269 12 122 314 135
HTE-M56-FD21 56*5.5 85 1543 11429 12 131 358 135
HTE-M64-FD16 64*6 95 2196 16269 12 148 350 135
Parameters
Model Bolt Size (M) A/F (S) Stretch Force (kN) Cylinder Area (mm²) Stroke (mm) Outside Diameter (mm) Height (mm) Pressure (MPa)
HTE-M30-FD14 30*4 46 656 4373 8 82 200 150
HTE-M36-FD1 36*4 55 741 4945 10 82.5 410 150
HTE-M36-FD2 36*4 55 741 4945 8 82.5 360 150
HTE-M36-FD3 36*4 55 741 5766 10 89.15 260 150
HTE-M36-FD4 36*4 55 741 4945 10 82.5 445 150
HTE-M36-FD6 36*4 55 865 5766 10 92 274 150
HTE-M36-FD10 36*4 55 741 4945 10 82.5 480 150
HTE-M36-FD11 36*4 55 741 4945 8 82.5 480 150
HTE-M36-FD13 36*4 55 662 4906 8 92 210 135
HTE-M36-FD17 36*4 55 741 4945 8 82.5 350 150
HTE-M36-FD19 36*4 55 925 6856 10 98 400 135
HTE-M39-FD9 39*4 55 845 5639 10 91 428 150
HTE-M42-FD7 42*4.5 65 965 6434 10 98 300 150
HTE-M45-FD15 45*4.5 70 1149 8513 10 112 279 135
HTE-M48-FD5 48*4.5 75 1277 8517 10 112 300 150
HTE-M52-FD18 52*5 80 2196 16269 12 122 314 135
HTE-M56-FD21 56*5.5 85 1543 11429 12 131 358 135
HTE-M64-FD16 64*6 95 2196 16269 12 148 350 135
Features

1. With advantages of light, fast, efficient and accurate

2. Small outside diameter with strong force, suitable to use in narrow spaces

3. Spring automatic recovery, with over stroke protection, suitable for frequent use

4. 700-1500 bar working pressure

5. Can work with ultra-high pressure electric stretch pump

Application
