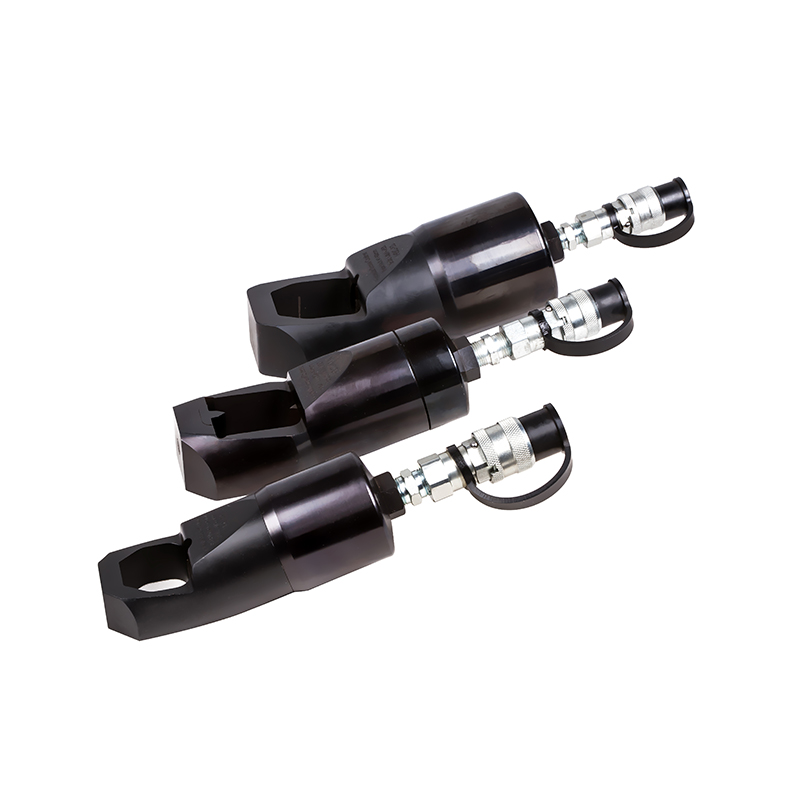

HSC Series Hydraulic Nut Splitter

HSC Series Hydraulic Nut Splitter

Nut splitters are highly effective tools for removing rusted or seized nuts
Angled head design ensures direct access to workpieces

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview

◢ Nut splitters are highly effective tools for removing rusted or seized nuts
◢ Angled head design ensures direct access to workpieces
◢ Single-stroke spring-return cylinder for efficient operation
◢ Applications: Service trucks, pipelines, gasification projects, steelworks, and mining
◢ All models feature reinforced one-piece blade holders integrated with heavy-duty cylinders
◢ Split nuts effortlessly: Insert blade from one side, rotate tool ½ turn, and complete the split for easy removal
◢ Compact design with quick-connect fittings for portability and simple disassembly

Model HSC-1319 HSC-1924 HSC-2432 HSC-3241 HSC-3241A HSC-4150
Nut Range M6-M12 M12-M16 M16-M22 M22-M27 M22-M27 M27-M33
Hex Nut Range 10-19mm 19-24mm 24-32mm 32-41mm 32-41mm 41-50mm
Output Force 5t 9t 9t 15t 15t 25t
Net Weight 1.7kg 1.7kg 2.5kg 3.4kg 3.8kg 4.5kg
Gross Weight 2.4kg 2.3kg 3.3kg 5.9kg 6.2kg 7.7kg
Dimensions 24×5×5cm 26×5×8cm 28×6×8cm 32×9×8cm 32×8×8cm 35×9×9cm
Packing Size 41×13×18cm 41×13×18cm 41×13×18cm 41x13x18cm 41x13x18cm 41x13x18cm

Important Notes:
1. Designed for standard material nuts only
2. Not suitable for stainless steel nuts
3. Avoid cutting into spring washers to prevent blade damage
4. Maximum nut grade capacity: 8.8

Parameters
Model HSC-1319 HSC-1924 HSC-2432 HSC-3241 HSC-3241A HSC-4150
Nut Range M6-M12 M12-M16 M16-M22 M22-M27 M22-M27 M27-M33
Hex Nut Range 10-19mm 19-24mm 24-32mm 32-41mm 32-41mm 41-50mm
Output Force 5t 9t 9t 15t 15t 25t
Net Weight 1.7kg 1.7kg 2.5kg 3.4kg 3.8kg 4.5kg
Gross Weight 2.4kg 2.3kg 3.3kg 5.9kg 6.2kg 7.7kg
Dimensions 24×5×5cm 26×5×8cm 28×6×8cm 32×9×8cm 32×8×8cm 35×9×9cm
Packing Size 41×13×18cm 41×13×18cm 41×13×18cm 41x13x18cm 41x13x18cm 41x13x18cm

Important Notes:
1. Designed for standard material nuts only
2. Not suitable for stainless steel nuts
3. Avoid cutting into spring washers to prevent blade damage
4. Maximum nut grade capacity: 8.8

Features

◢ Nut splitters are highly effective tools for removing rusted or seized nuts
◢ Angled head design ensures direct access to workpieces
◢ Single-stroke spring-return cylinder for efficient operation
◢ Applications: Service trucks, pipelines, gasification projects, steelworks, and mining
◢ All models feature reinforced one-piece blade holders integrated with heavy-duty cylinders
◢ Split nuts effortlessly: Insert blade from one side, rotate tool ½ turn, and complete the split for easy removal
◢ Compact design with quick-connect fittings for portability and simple disassembly
