ES9080 IP65 Non-contact High Voltage Detector
The Non-contact High Voltage Detector is safe and reliable with
contactless design, which is used to check whether there is AC high
voltage and low voltage. The instrument has the functions of sound
prompt, light prompt, self-check, compatible with most telescopic
hot stick, etc. The whole detector is beautiful, high-end, wide range,
easy to use, convenient to carry, high-precision, reliable, stable
performance, strong anti-interference ability
The Non-contact High Voltage Detector has IP65 protection grade
and shockproof structure, which is suitable for the harsh working
environment.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Introduce:
The Non-contact High Voltage Detector is safe and reliable with
contactless design, which is used to check whether there is AC high
voltage and low voltage. The instrument has the functions of sound
prompt, light prompt, self-check, compatible with most telescopic
hot stick, etc. The whole detector is beautiful, high-end, wide range,
easy to use, convenient to carry, high-precision, reliable, stable
performance, strong anti-interference ability
The Non-contact High Voltage Detector has IP65 protection grade
and shockproof structure, which is suitable for the harsh working
environment. It is suitable for the non-contact detection of live
voltage, detection of cable fault, inspection and detection of live
high-voltage cable, tracking of field wires, detection of residual
voltage or induced voltage and other detection needs

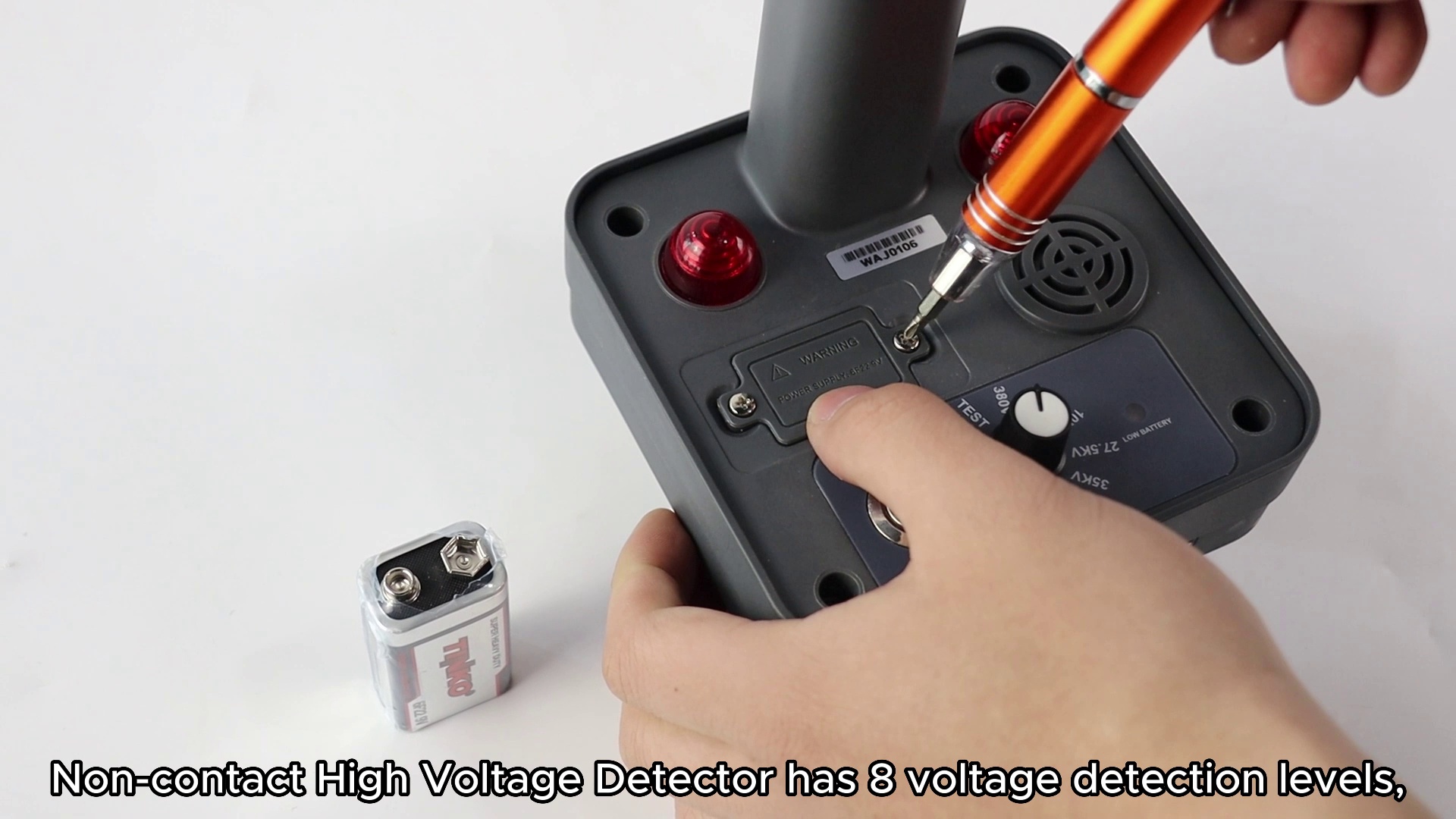

The Non-contact High Voltage Detector has 8 voltage detection
levels, the rated test voltage range is 380V-550kV
|
Function
|
Voltage detection, cable tracking
|
|
Standard conditions
|
23℃±5℃, 75%rh below
|
|
Test voltage (V)
|
380V；6KV；10KV；27.5KV；35KV；110KV；220KV；500KV
|
|
Telescopic hot stick
|
4m , 3 sections (Optional & can be customized)
|
|
Power supply
|
DC 9V (6F22 battery)
|
|
Dimensions
|
115mm (L)×115mm(W)×169mm(H)
|
|
Protection class
|
IP65
|
|
Warning function
|
Sound and light will be emitted when the detection voltage exceeds the set voltage
|
|
Weight
|
390g(battery included)
|
|
Operating condition
|
－10℃～+50℃＜85%RH
|
|
Storage condition
|
－15℃～+55℃＜90%RH
|
|
Meet safety standards
|
EN 61326-1 CISPR 11
EN 61000-4-2 EN 61000-4-3 EN 61000-4-8 |
