EAV Audible Visible Voltage Detector

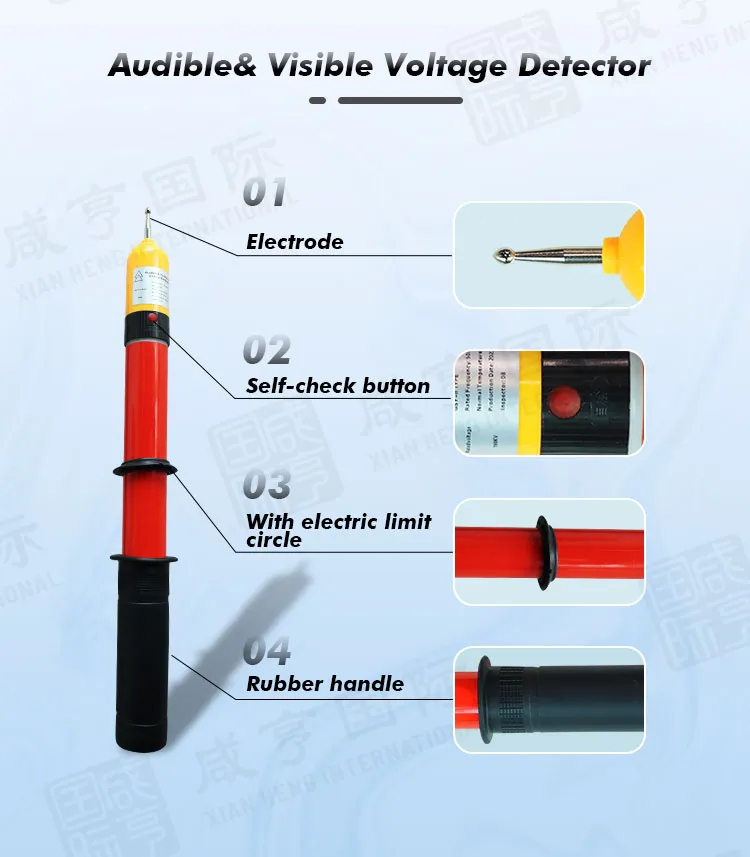

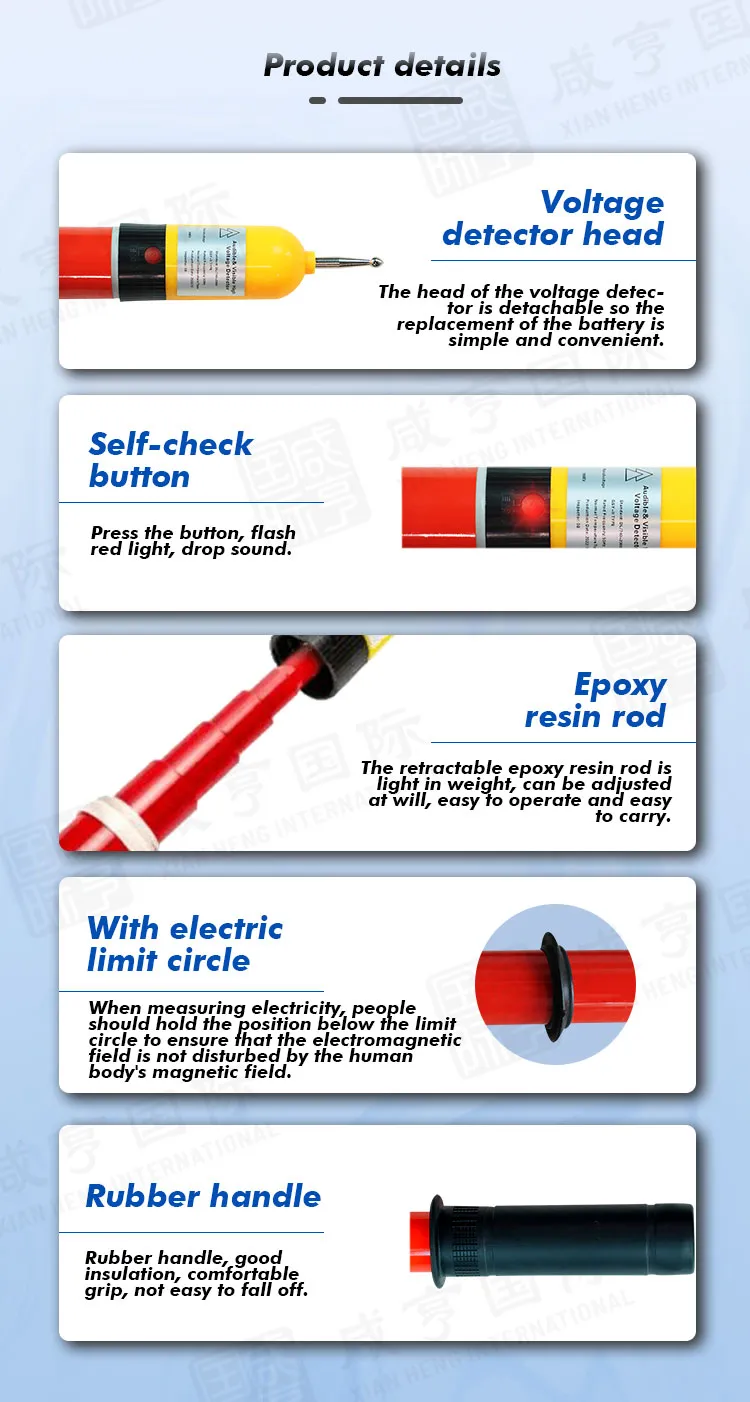

1. The head of the electroscope is detachable so the replacement of the battery is simple and convenient.
2. Made of insulating material, reliable and safer, with long service life.
3. The retractable epoxy resin rod is light in weight, can be adjusted at will, easy to operate and easy to carry.
4. With electric limit circle, when measuring electricity, people should hold the position below the limit circle to ensure that the electromag-
netic field is not disturbed by the human body's magnetic field.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview

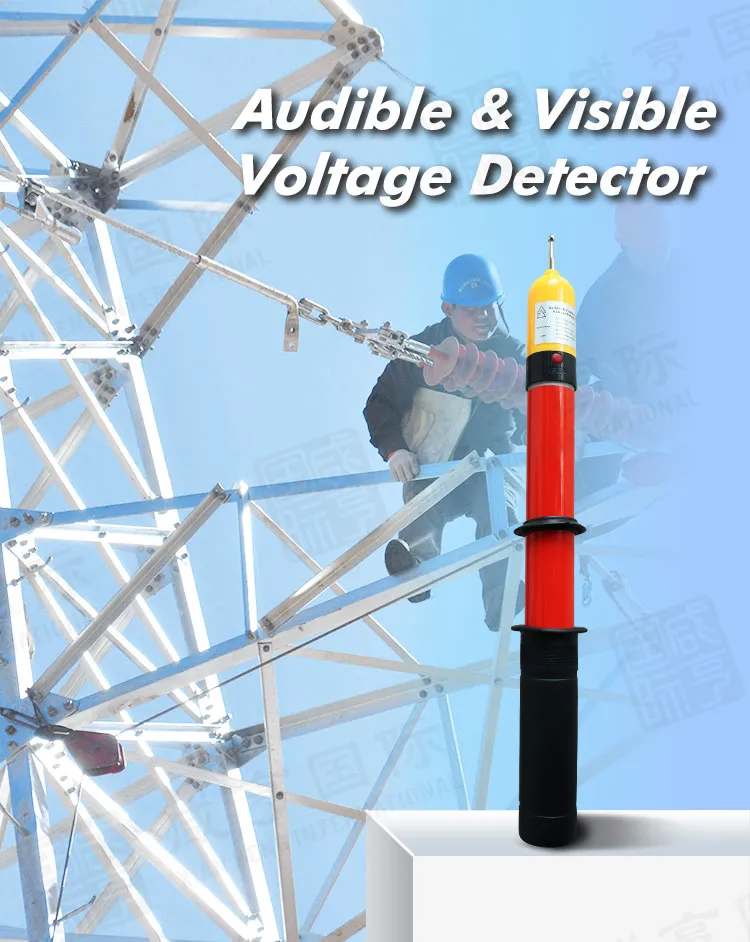

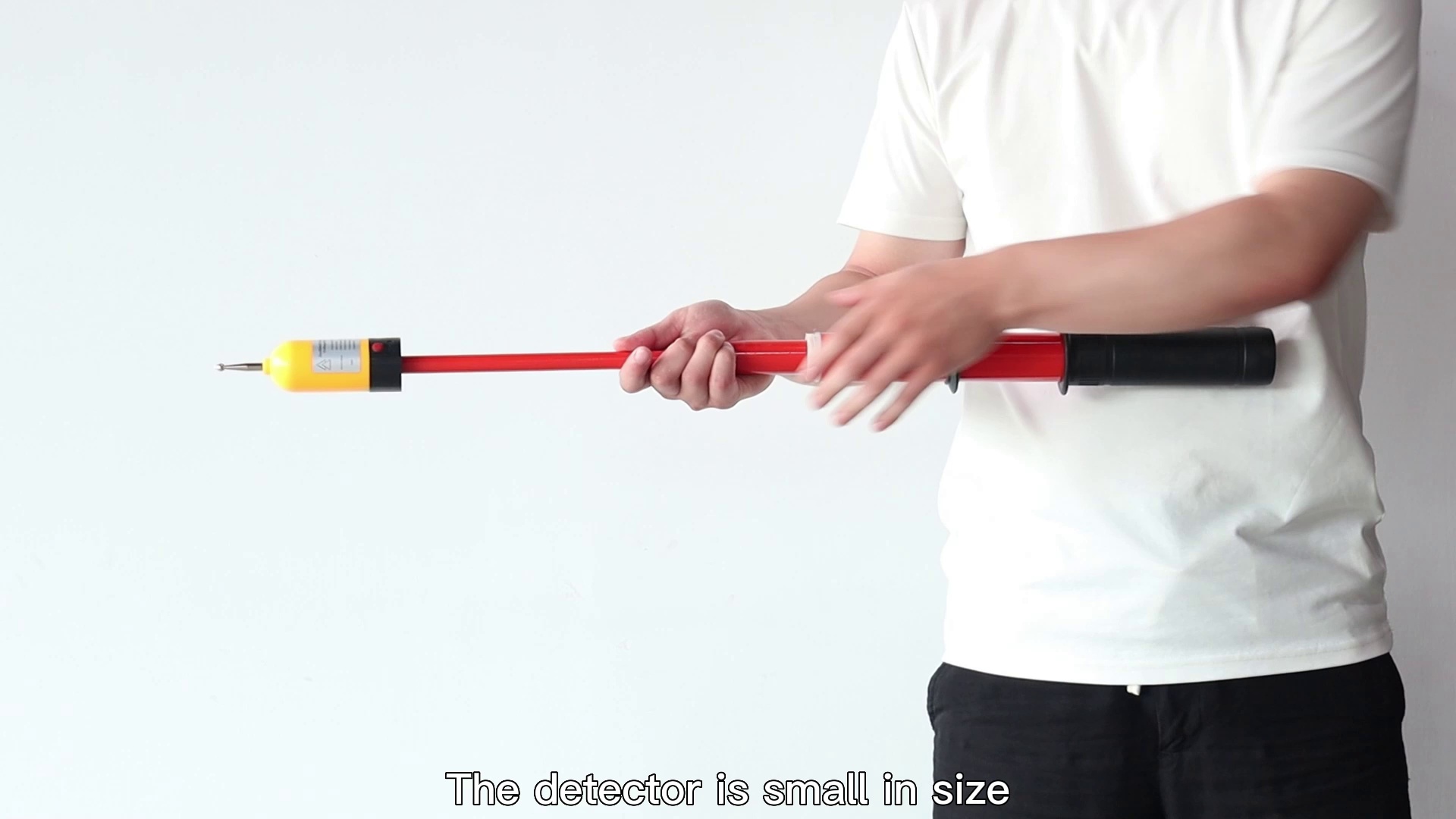

This detector is made of epoxy resin, with high insulation, high sensitivity and accurate detection. It has loud audible sounds and clearly visible LEDs. Can detect and sense the presence of high voltage existence. The detector is small in size, light in weight and with telescopic type, which is also easy to carry.
|
Model
|
Voltage
(KV)
|
Extended
(mm)
|
Rectracted
(mm)
|
Effective Insulation Length(mm)
|
|
EAV-0.4
|
0.4KV
|
900
|
400
|
700
|
|
EAV-10
|
3-10KV
|
1000
|
400
|
700
|
|
EAV-20
|
20KV
|
1500
|
483
|
900
|
|
EAV-27.5
|
27.5KV
|
6000
|
1450
|
4200
|
|
EAV-35
|
35KV
|
1500
|
500
|
1100
|
|
EAV-66
|
66KV
|
2000
|
600
|
1440
|
|
EAV-110
|
110KV
|
2000
|
600
|
1440
|
|
EAV-150
|
150KV
|
3060
|
800
|
1600
|
|
EAV-220
|
220KV
|
3000
|
800
|
2440
|
|
EAV-330
|
330KV
|
6000
|
1450
|
5200
|
|
EAV-500
|
500KV
|
7200
|
1750
|
6000
|
