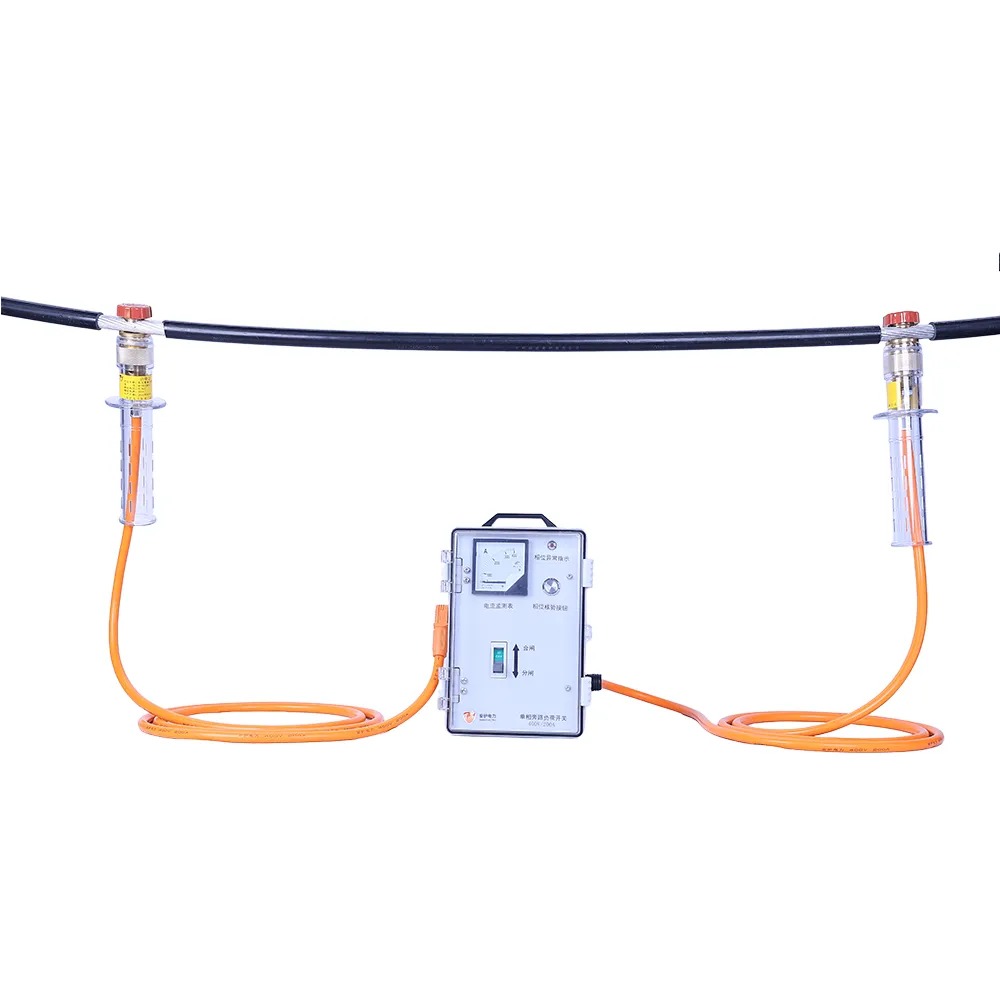

AHSW-AES Low-voltage Single-phase Bypass Switch
Used for single-phase bypass current diversion during live operations, such as replacement and maintenance of single-phase circuits (e.g.,
replacing low-voltage heating wire clamps). It is particularly suitable for clamp replacement in pole-mounted operations.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Features :
1. One end features a quick-insert interface, and the other end is equipped with a bypass clamp, ensuring convenient and fast connection.
2. The quick-connect device offers excellent electrical conductivity and mechanical stability.
3. The switch is a fuse-type isolation switch, providing safety, stability, and ease of operation, with simple installation and removal of the
fuse element.
4. Compact design with lightweight construction.
Operation Instructions :
1. Ensure that the maximum operating current of the low-voltage bypass cable is less than the rated current of the low-voltage bypass
switch.
2. Identify the input and output sides of the low-voltage bypass switch. Before connecting the cable quick connectors, make sure that the
main circuit breaker and the phase-check switch are in the open and off positions, respectively.
3. After connecting the cables, turn on the phase-check switch and observe whether the phase anomaly indicator light is on. If the light is
on, carefully verify the cable phase connections; if the light is not on, turn off the phase-check switch, and you may directly close the main
circuit breaker.
4. Once the bypass switch is closed, maintenance can be performed on the original line.
5. After the line is repaired, the bypass switch can be opened, and the quick-connect cables can be removed.
| Parameters | AHSW-AES-0.4/200 |
| Rated Voltage | 0.4kV |
| Rated Current | 200A |
| Rated Impulse Withstand Voltage | 8kV |
| Rated Short-time Withstand Current | 4kA/0.5s |
| Rated Breaking Capacity of Fuse Link | 50kA |
| Ambient Temperature | -25 ~ +55℃ |
| Dimensions | 350×255×110mm |
