VDE Insulated Cutting Tools
VDE Insulated Cutting Tools
VDE Insulated Cutting Tools
VDE Insulated Cutting Tools
VDE Insulated Cutting Tools
VDE Insulated Cutting Tools
VDE Insulated Cutting Tools
VDE Insulated Cutting Tools
VDE Insulated Cutting Tools
VDE Insulated Cutting Tools
VDE Insulated Cutting Tools

VDE Insulated Cutting Tools

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Overview

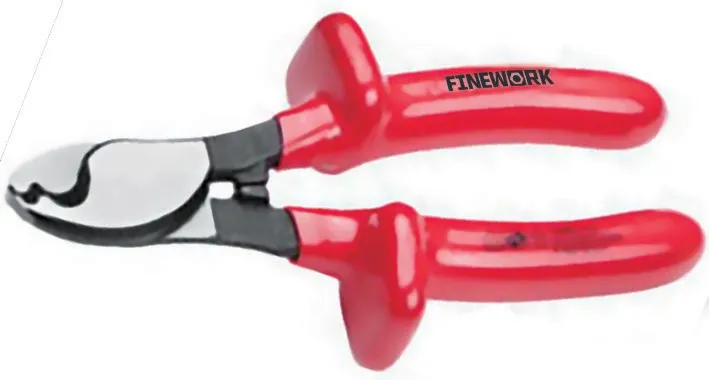

Model 1 : Insulated Cable Cutting Pliers

  • Forged with Cr-V, heat treatment of the whole body, Sharp and durable.
  • Arc blade generates inward cohesion while cutting, wire core is not easy to loose.
  • Suitable for cutting Cu and Al cable, not to cut steel cable.
  • Dipping insulation handle, ergonomic design, comfortable operation.
  • Pass European VDE, GS certificates, conform with IEC60900, withstand voltage 1000V.
Model
Size
(mm²)
Length (mm)
91LB502
6"
22
 150

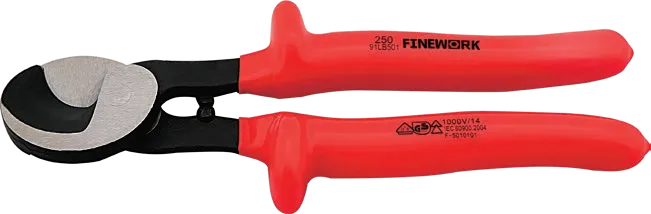

Model 2 : Insulated Cable Cutter

  • Forged with Cr-V, heat treatment of the whole body, Sharp and durable.
  • Arc blade generates inward cohesion while cutting, wire core is not easy to loose.
  • Suitable for cutting Cu and Al cable, not to cut steel cable.
  • Dipping insulation handle, ergonomic design, comfortable operation.
  • Pass European VDE, GS certificates, conform with IEC60900, withstand voltage 1000V.
Model
Size
(mm²)
Length (mm)
91LB501
 10" 80 250

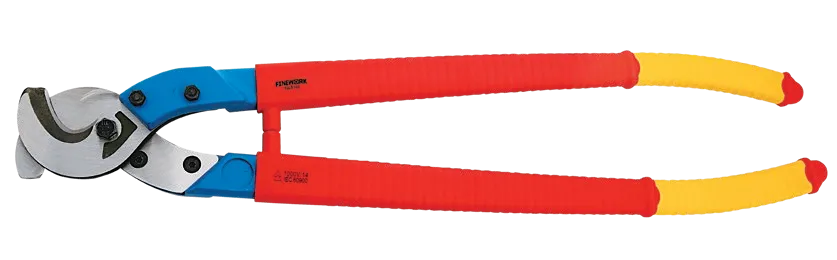

Model 3 : Insulated Cable Cutter

  • Forged with Cr-V, heat treatment of the whole body, Sharp and durable.
  • Arc blade generates inward cohesion while cutting, wire core is not easy to loose.
  • Suitable for cutting Cu and Al cable, not to cut steel cable.
  • Insulated injection grip, ergonomic design, comfortable operation.
  • Comply with IEC60900 standard, withstand voltage 1000V.
Model
(mm²)
Length (mm)
95LB504
250
610
95LB505
 500 820

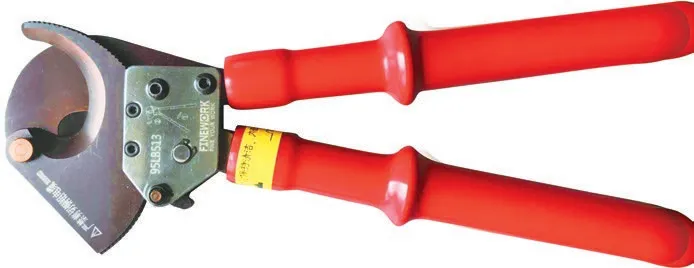

Model 4 : Insulated Cable Cutter

  • Suitable for cutting steel stranded wire and ACSR cable aluminum stranded wire
  • Telescopic handle, ratchet push, cutting more labor-saving
  • The blade is heat treated as a whole, with high strength, and the cutting edge can be sharpened
  • Small size, light weight, large cutting range, easy to carry.
  • Comply with IEC60900 standard, withstand voltage 1000V.
Model
Capacity (mm²)
Length (mm)
95LB513
ACSR below 720mm²,
steel strand below 150mm²
350 (Extension up to 520mm)
95LB530
ACSR below 630mm²,
steel strand below 100mm²
420 (Extension up to 580mm)

Model 5 : Insulated Cable Cutter

  • Forged with Cr-V, heat treatment of the whole body, Sharp and durable.
  • Arc blade generates inward cohesion while cutting, wire core is not easy to loose.
  • Suitable for cutting Cu and Al cable, not to cut steel cable.
  • Insulated injection grip, ergonomic design, comfortable operation.
  • Pass European VDE, GS certificates, conform with IEC60900, withstand voltage 1000V.
Model
(mm²)
Length (mm)
95LB508
32mm (240mm²)
250mm
95LB509
52mm (380mm²)
380mm

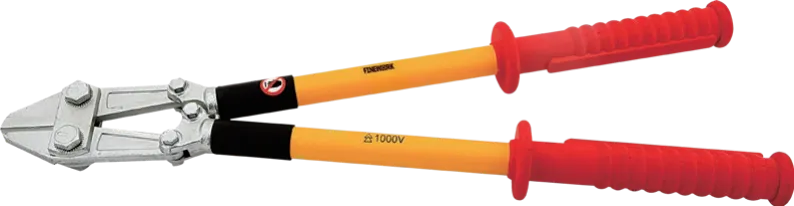

 Model 6 : Insulated Bolt Cutter

  • Forged with Cr-V, heat treatment and high-frequency quenching, high intensity.
  • The handle is made of epoxy resin fiber tube + TPR sleeve.
  • Comply with IEC60900 standard, withstand voltage 1000V.
  • Can be used to cut steel bars below 6mm and copper core or aluminum core cables below 20mm.
Model
Cut wire diameter
Length (mm)
Steel bar
Cu/Al Core
95LB601
＜6mm
＜20mm
600

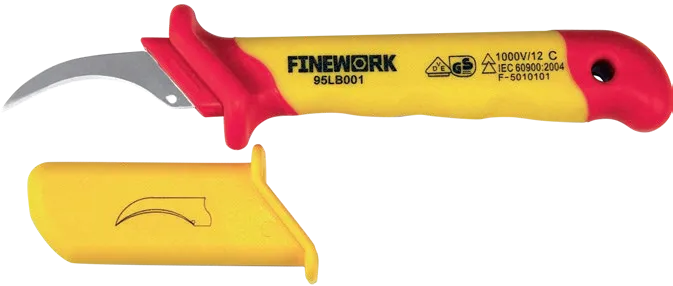

  Model 7 : Insulated Dismantling Knife (Long Hook)

  • The blade is made of stainless steel.
  • Sickle blade, suitable for fan-shaped cable.
  • The handle is ergonomically designed and feels comfortable.
  • Pass European VDE, GS certificates, conform with IEC60900,withstand voltage 1000V.
Model
Size (mm)
D (mm)
L (mm)
95LB001
50*80
 50 180

Model 8 : Fully Insulated Electrician's Knife

  • The blade is made of ceramic, sharp and durable, and guaranteed to be insulated.
  • Insulated injection-molded TPE material, one-piece molding, strong and stable.
  • Comply with IEC60900 standard, withstand voltage 1000V.
Model
Size (mm)
D (mm)
L (mm)
95LB004
50x200
50
 200

Model 9 : Insulated Dismantling Knife

  • The blade is made of stainless steel.
  • Sickle blade, suitable for fan-shaped cable.
  • The handle is ergonomically designed and feels comfortable.
  • Pass European VDE, GS certificates, conform with IEC60900,withstand voltage 1000V.
Model
Size (mm)
D (mm)
L (mm)
95LB002
38*155
38
 155

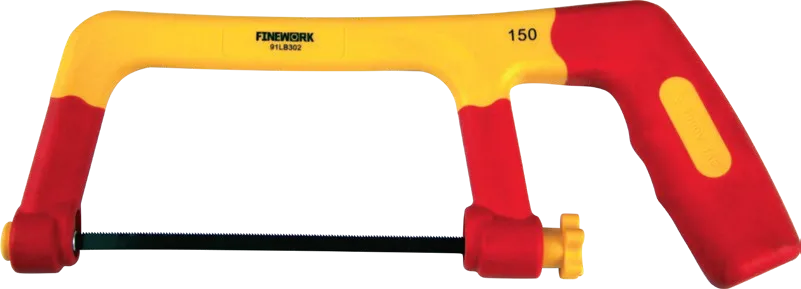

 Model 10 : Insulated Saw

  • Zinc alloy hacksaw frame, 65Mn saw blade, high cutting strength and durability.
  • Ergonomic design, comfortable gripping.
  • Comply with IEC60900 standard, withstand voltage 1000V.
Model
Blade (mm)
Length (mm)
95LB302
 150 300

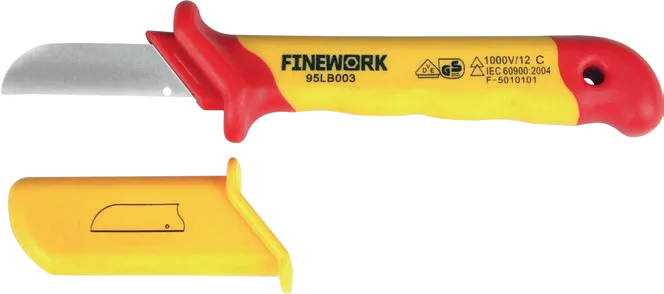

 Model 11 : Insulated Cable Knife (Straight)

  • Straight blade made of medical stainless steel.
  • Handle is ergonomically designed and comfortable.
  • Pass European VDE, GS certificates, conform with IEC60900,withstand voltage 1000V.
Model
Size (mm)
D (mm)
L (mm)
95LB003
50*180
50
 180
 Model 12 : Insulated Saw
  • Zinc alloy hacksaw frame, 65Mn saw blade, high cutting strength and durability.
  • Ergonomic design, comfortable gripping.
  • Comply with IEC60900 standard, withstand voltage 1000V.
Model
Blade (mm)
Length (mm)
95LB303
 300 400
