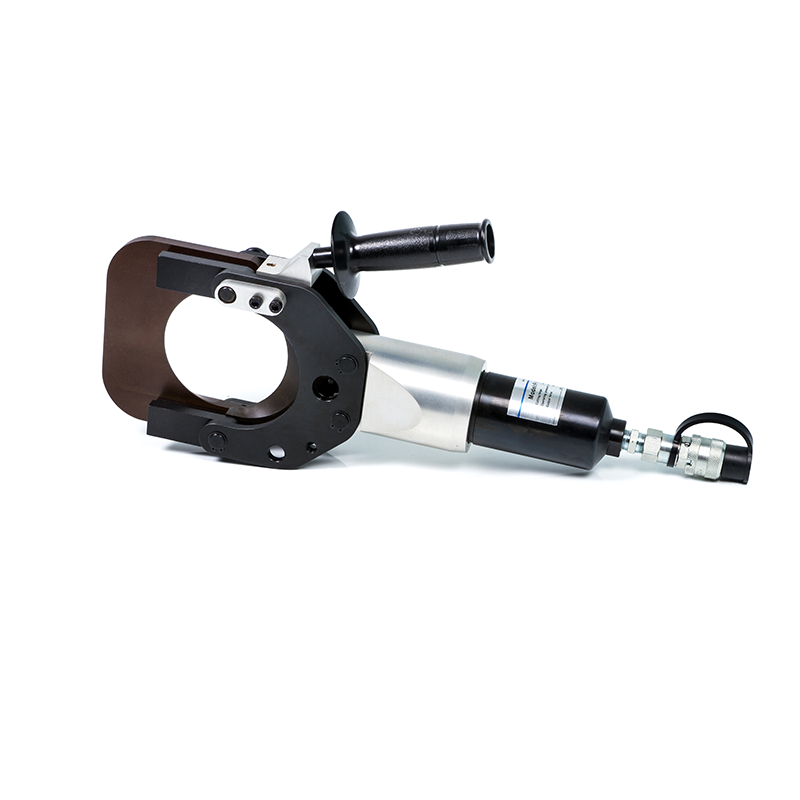

PC-105 Hydraulic Cutting Head

◢ For cutting copper and aluminum cables with light armored cable
◢ Flip-open head easy access to the fitting
◢ Powered by single acting hydraulic pump
◢ The exact cutting capacity depends on the type of cable

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview

◢ For cutting copper and aluminum cables with light armored cable
◢ Flip-open head easy access to the fitting
◢ Powered by single acting hydraulic pump
◢ The exact cutting capacity depends on the type of cable

Model PC-105
Cutting Force 12t
Rated Pressure 700bar
Cutting Capacity Max Φ105mm Cu/Al, max(10kV) 3x400mm² light armored cable
Packing Plastic case + carton case
Net Weight 8.6kg
Gross Weight 12.2kg
Dimensions 54x25x9cm
Packing Size 73x36x13cm

Parameters
Model PC-105
Cutting Force 12t
Rated Pressure 700bar
Cutting Capacity Max Φ105mm Cu/Al, max(10kV) 3x400mm² light armored cable
Packing Plastic case + carton case
Net Weight 8.6kg
Gross Weight 12.2kg
Dimensions 54x25x9cm
Packing Size 73x36x13cm
Features

◢ For cutting copper and aluminum cables with light armored cable
◢ Flip-open head easy access to the fitting
◢ Powered by single acting hydraulic pump
◢ The exact cutting capacity depends on the type of cable

Application
