Load Break & Jumper Bypass Tools
Designed for safe and efficient live-line bypass and load transfer operations, this series includes load break tools, jumper clamps, and complete jumper sets. It ensures continuous power supply during maintenance while enhancing operator safety and operational efficiency.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Overview
Product Details
1.Model: AHSW-AES-15/300 Load Break & Pick-up Tool
The Load break & Pick-up tool is a jumper clamp that functions like a portable switch.It is designed to operate on overhead distribution lines in conjunction with a mechanical jumper.

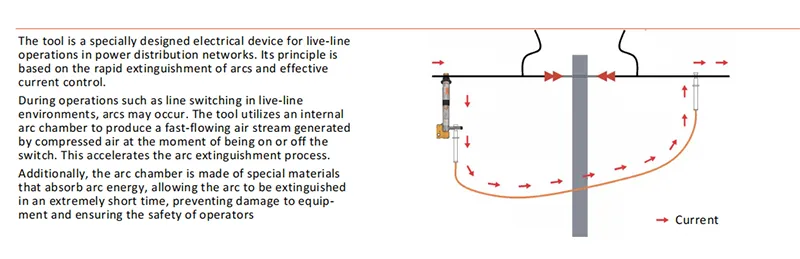

During operations such as line switching in live-line environments, arcs may occur. The tool utilizes an internal arc chamber to produce a fast-flowing air stream generated by compressed air at the moment of being on or off the switch. This accelerates the arc extinguishment process.
Additionally, the arc chamber is made of special materials that absorb arc energy, allowing the arc to be extinguished in an extremely short time, preventing damage to equipment and ensuring the safety of operators.

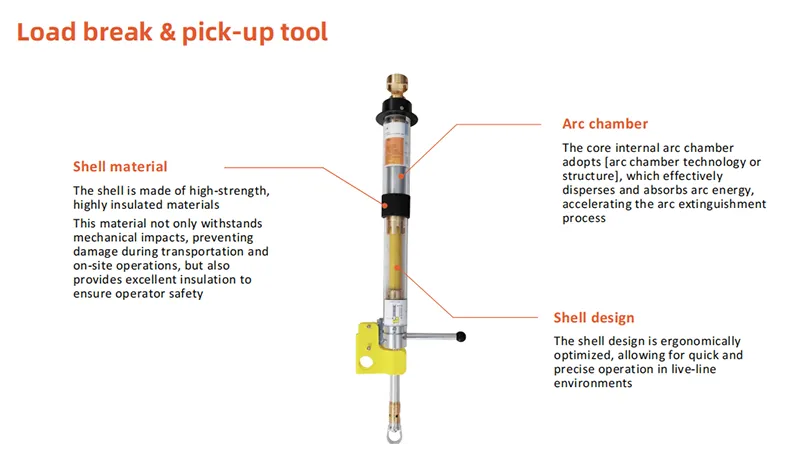

Features：
1.Shell Material:The shell is made of high-strength, highly insulatedmaterials.
2.Arc Chamber:The core internal arc chamber adopts [arc chamber technology or structure], which effectively disperses and absorbs arc energy, accelerating the arc extinguishment process.
3.Yellow Safety Lock:Helps prevent the tool from an unintended load break or pick-up operation.
Functions:
- Load break
- Load pick-up
- Continuous current duty
In order to keep personnel at a safe distance, the Load break & Pick-up tool is operated with an insulated fiberglass hot stick.
|
Model
|
AHSW-AES-15/300
|
|
Net Weight
|
3.6 kg
|
|
Dimension of Switch On
|
700x255x120 mm
|
|
Dimension of Switch Off
|
850x255x120 mm
|
|
Ac Proof Test Voltage
|
48 kV/1 min
|
|
Rated Current
|
300 A
|
|
Rated Frequency
|
50 Hz
|
|
Main Circuit Resistance
|
≤ 2000 µΩ
|
|
Power Frequency Withstand Voltage Between Contacts
|
48 kV/1 min
|
|
Preventive Test Voltage
|
42 kV/1 min
|
|
Lifespan
|
1000+ cycles
|
2.Model: AHPT-TXJT-10-1 Clear Jumper Clamp
Used to bypass work areas during equipment maintenance; Also for upgrading lines and performing temporary or emergency repairs.
Hard, high-strength clear handles with wide protective flanges.
Metal parts made of copper alloy for enhanced oxidation resistance. Sold in pairs.
|
Model
|
AHPT-TXJT-10-1
|
|
Clamping Range
|
≤240 mm²
|
|
Jumper Compatibility Range
|
50, 70, 95, 120, 150, 185 mm²
|
|
Conductor Material
|
Copper alloy
|
|
Handle Material
|
High-density polyethylene
|
|
Weight
|
0.95 kg
|
3.Model: AHCA-YY-15/300-3 Jumper Set with Clear Clamps
Used for bypassing work areas when equipment is under repair, upgrading lines, and making temporary or emergency repairs.
The jumper clamp is made of clear insulation material, which facilitates the observation of the connection between the cable and the clamp, avoiding cable detachment during operation.
|
Model
|
AHCA-YY-15/300-3
|
|
Length
|
3 m or customized length
|
|
Cable Size
|
70 mm²
|
|
Max Current Load Capacity
|
300 A
|
|
Max Operating Voltage
|
15 kV
|
4.Model: AHCA-GYGY-15/300-3 Hot Stick Jumper Set
The jumper line features monkey-head clamps at both ends, operable with a matching shot gun-style operating stick, eliminating the need for human contact with live wires.
|
Model
|
AHCA-GYGY-15/300-3
|
|
Length
|
3 m or customized length
|
|
Cable Size
|
70 mm2
|
|
Current Load Capacity
|
300 A
|
|
Max Operating Voltage
|
15 kV
|
