High Voltage Insulated Rescue Hook
High Voltage Insulated Rescue Hook
High Voltage Insulated Rescue Hook
High Voltage Insulated Rescue Hook
High Voltage Insulated Rescue Hook

High Voltage Insulated Rescue Hook

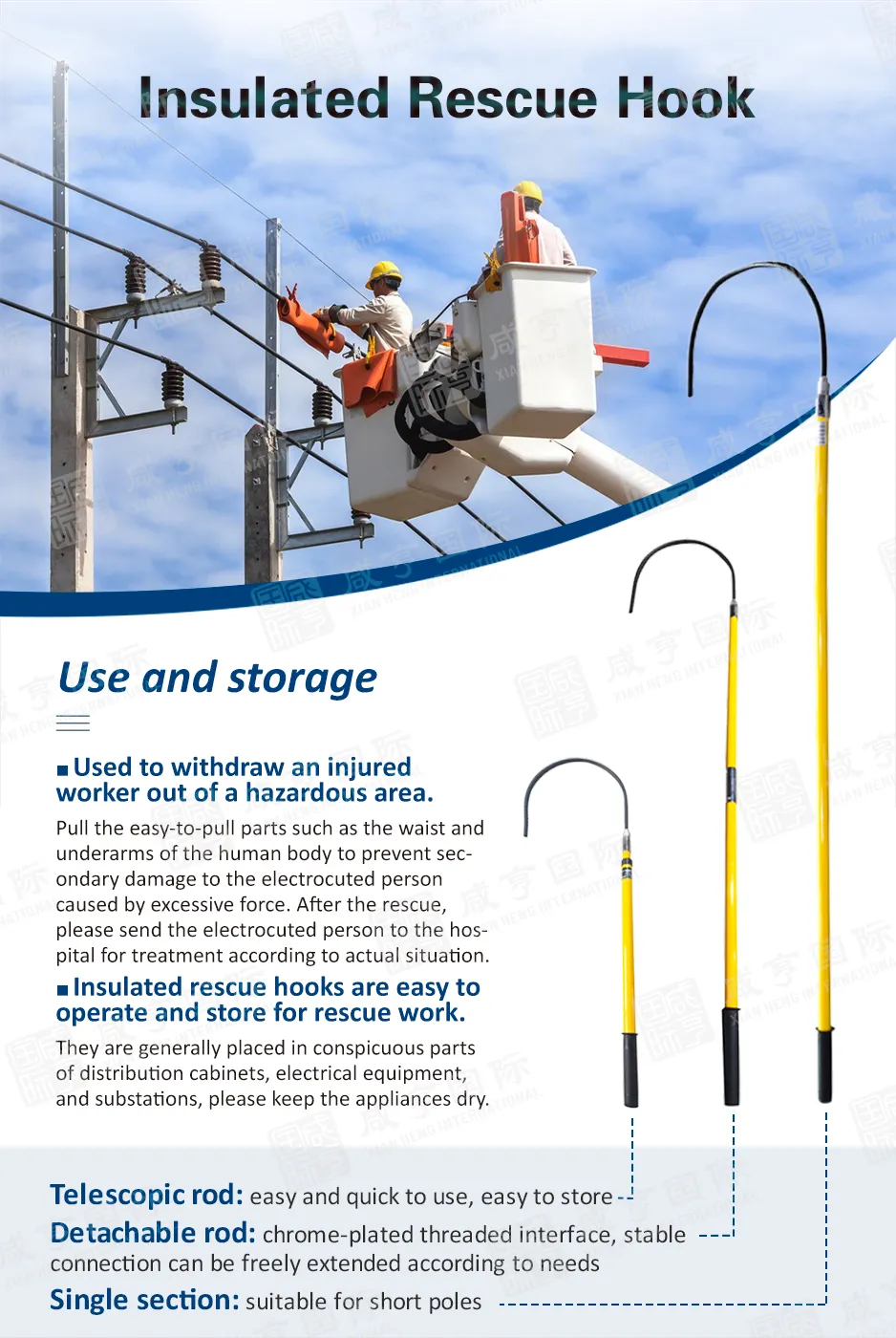

  1. Used to withdraw an injured worker out of a hazardous area. Pull the easy-to-pull parts such as the waist and underarms of the human body to prevent secondary damage to the electrocuted person caused

by excessive force. After the rescue, please send the electrocuted person to the hospital for treatment according to actual situation

  1. Insulated rescue hooks are easy to operate and store for rescue work. They are generally placed in conspicuous parts of distribution cabinets, electrical equipment, and substations，please keep the appliances dry.
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview

Application:

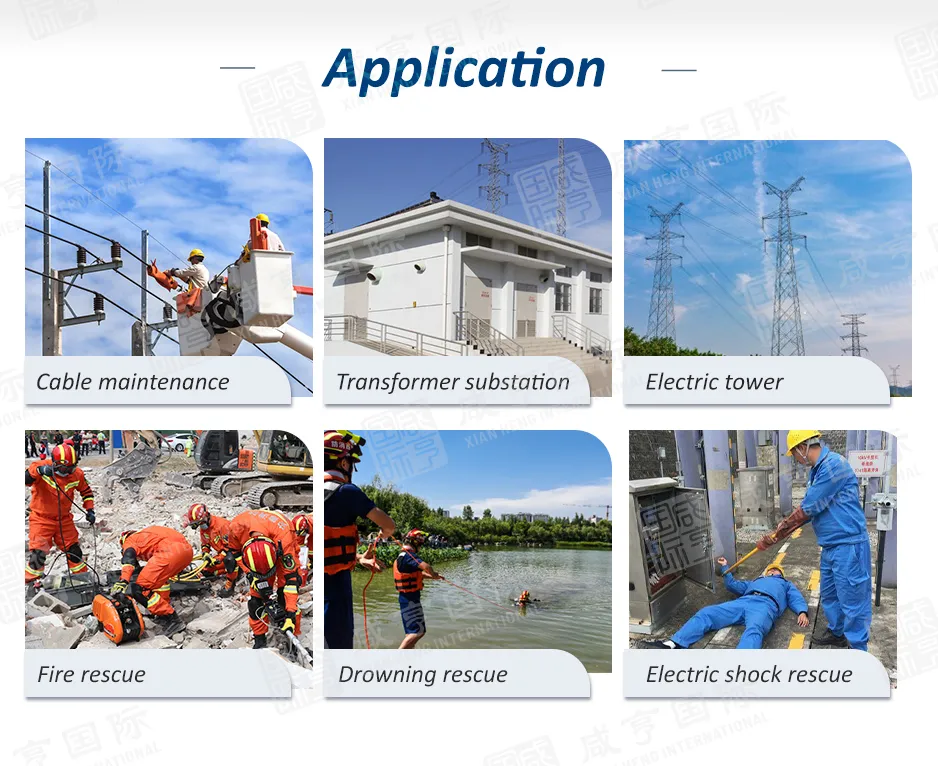

Fire rescue, electric tower, drowning rescue, cable maintenance, electric shock rescue, transformer substation, communication construction.

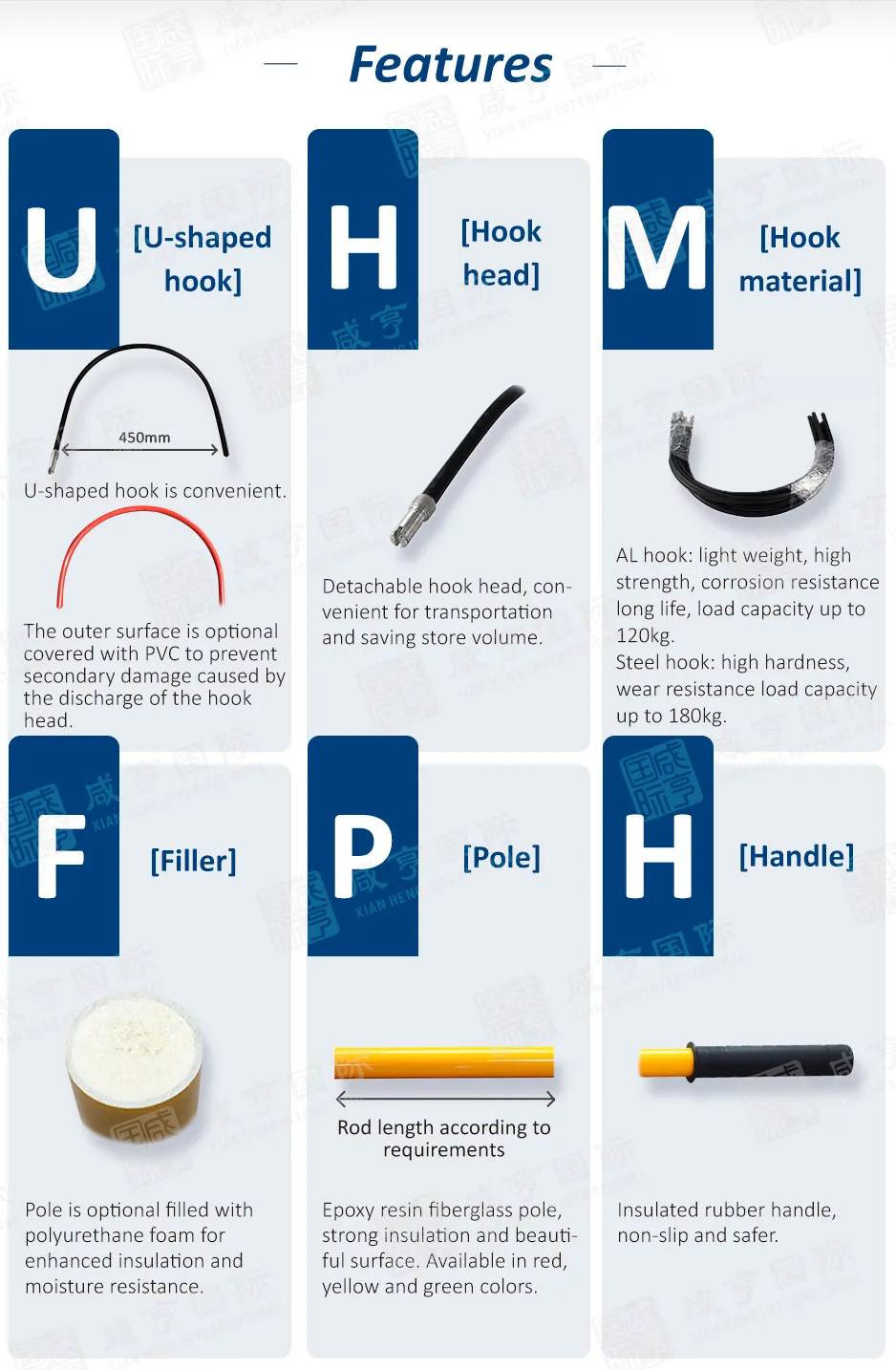

Features:

1. AL hook: light weight, high strength, corrosion resistance, long life

2. Steel hook: high hardness, wear resistance

3. U-shaped hook is convenient. The outer heat sink protection to prevent secondary damage caused by the discharge of the hook head

4. Detachable hook head, convenient for transportation and saving store volume

5. Epoxy resin fiberglass pole, strong insulation and beautiful surface. Available in red, yellow and green colors

6. Stick is filled with polyurethane foam for enhanced insulation and moisture resistance

7. Insulated rubber handle, non-slip and safer

Parameters IRH-1 IRH-1.5   IRH-1.8 IRHD-1.8 IRHD-2 IRHD-2.5  IRHD-5 IRHT-1.8  IRHT-2 IRHT-3 IRHT-5
Rod Length 1m 1.5m 1.8m 1.8m 2m 2.5m 5m 1.8m 2m 3m 5m
Voltage 10kV 35KV 45kV 45kV 66kV 110kV 220KV 45kV 66kV 110kV 220kV
Rod Dia. 36mm 36mm 36mm 36mm 36mm 36mm 36mm 32mm 32mm 32mm 32mm
Sections 1  1  1  2  2  2  3  2  2  2  4
Type Single section,
suitable for short poles		   Detachable rod,chrome-plated threaded
  interface,stable connection can be freely
       extended according to needs		 Telescopic rod,easy and quick to
use,easy to store

General   Parameters Recommended voltage VS length
Hook Opening      450mm Stick Length:1-1.5m         Voltage:10kV
AL Hook Dia.      16mm Stick Length:1.5-2m         Voltage:35kV
AL Hook Load Cap.      120kg Stick Length:2-2.5m         Voltage:110KV
Steel Hook Dia.      14mm Stick Length:2.5-5m         Voltage:220KV
Steel Hook Load Cap.      180kg
