HCI Cable Identifier

HCI Cable Identifier

1.Clear, safe and quick cable identification on all types of de-energised cables

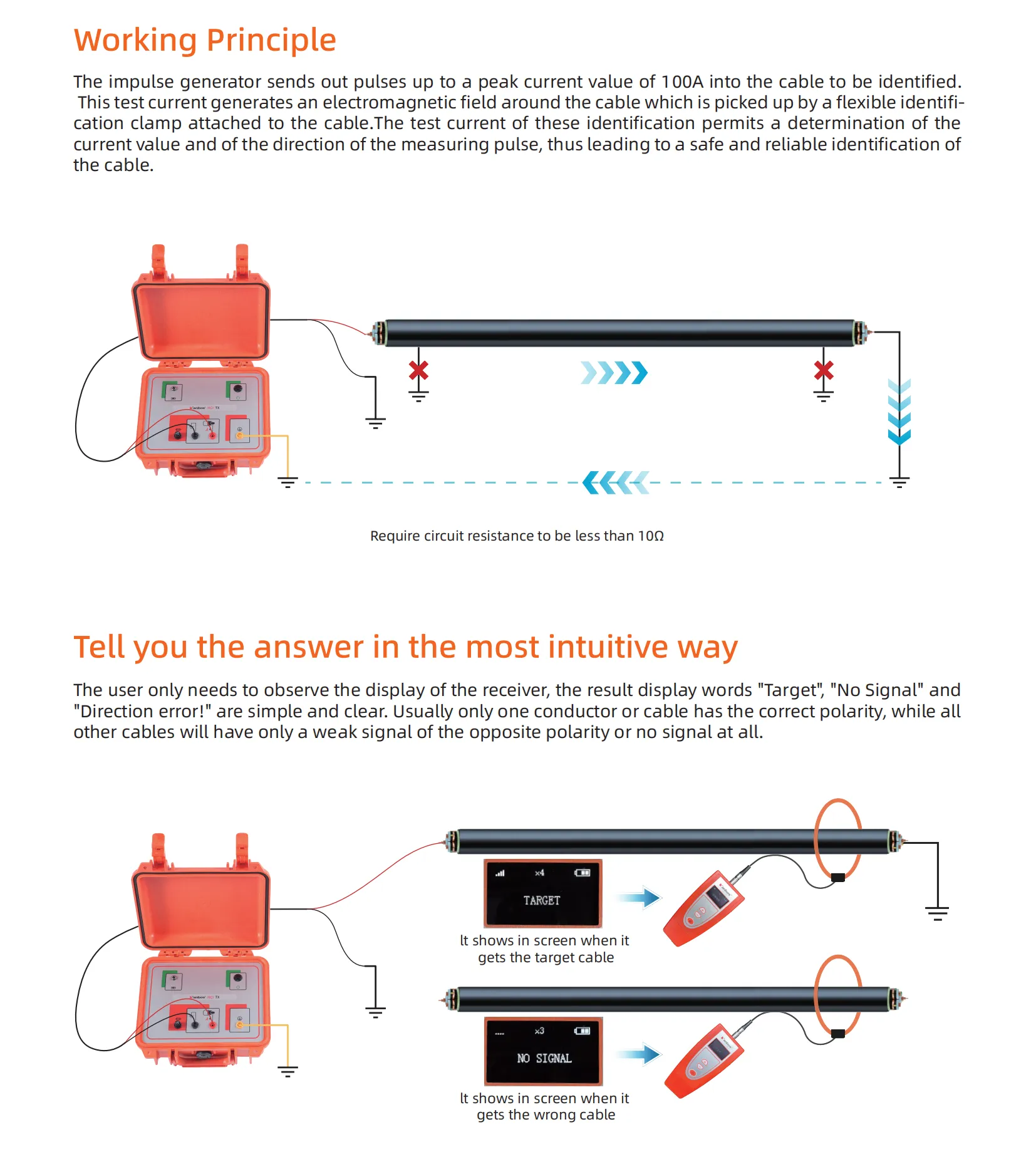

2.Cable identification Automatic recording and analysis of transmitting pulses:

– Amplitude

– Interval (time)

– Pulse direction (polarity)

3.High pulse current up to 100 A

4.Signal uncoupling by means of a flexcoupler for large cable diameters of up to 195mm

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview

Overview

Suitable for power outage cable identification. Accurate identification of one target cable from a bundle of cables is a technical problem often encountered by power cable engineers and cable workers. The purpose of cable identification is to avoid serious accidents caused by miscutting live cables. Cable identification requires professionals to start from both ends of the cable and ensure the accuracy of the double numbering of cable equipment. No matter how reliable the memory of field staff is, it cannot replace the recognition of professional instruments.

HCI is simple to operate, intelligent recognition, accuracy of 100%, can help field personnel accurately and quickly identify the target cable in complex environment accessories.

Parameters

Transmitter
Display
LED signal strength indicator (red/yellow/green)
LED battery status indicator (red/yellow/green)
One-button operation
ON/OFF
Pulse Voltage
100V, DC
Pulse current
0-100A
Pulse frequency
30 times/min
Pulse width
60ms
Power supply
AC 100-240V, 50 Hz or built-in 12V lithium battery
On-site use time
Over 6 hours, continuous use
Charge time
6 hours
Weight
1.5kg (no battery); 3kg ( with battery)
Size
325 x 248 x 125 (mm)
Receiver (LED optional)
Display
LCD screen indicates the target cable (target cable)
LCD screen indicates non-target cable (no signal)
Clamp
Flexible clamp, φ19mm
Gain
10gears (-3dB to +24 dB)
Power supply
4 x AAA
On-site use time
＞50hours
Weight
400g (with clamp and battery)
Size
165 x 80 x 30 (mm)

Features

1.Appearance: integrated American PELICAN case, simple wiring, light and portable, weight is only 13kg, easy to move on-site.
2.Operation: simple wiring, can be used with other high-voltage equipment.
3.No high voltage exposure, safe and reliable.
4.Most advanced "multiple pulse method" technology and pulse balance technology in the world. Highlight the reflected waveform of the fault point. Easier identification of test waveform. More accurate distance measurement.
5.Safety: High-voltage protection measures can realize the electrical isolation between the measuring circuit and the high-voltage impulse power supply, ensuring the safety of the rangefinder in the impulse voltage environment, without damage or crash.

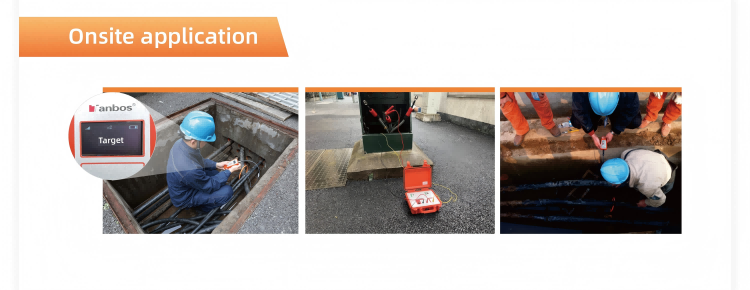

Application

Parameters

TECHNICAL DATA

Transmitter

Pulse voltage

55V，DC

Pulse current

0—100A

Pulse sequence

30 pulses/min

Pulse width

60ms

Power supply

AC 100-240V, 50/60Hz or built-in 12V lithium battery

Weight

3KG(including battery)

Size

325*248*125mm

Receiver

Clamp

Ø190mm flexible clamp

Gain

10 gears (-3dB to +24dB)

Power supply

Two # 5 dry batteries

Weight

400g (including clamp and battery)

Size

165mm × 80mm × 30mm

Features
1.Appearance: integrated American PELICAN case, simple wiring, light and portable, weight is only 13kg, easy to move on-site.
2.Operation: simple wiring, can be used with other high-voltage equipment.
3.No high voltage exposure, safe and reliable.
4.Most advanced "multiple pulse method" technology and pulse balance technology in the world. Highlight the reflected waveform of the fault point. Easier identification of test waveform. More accurate distance measurement.
5.Safety: High-voltage protection measures can realize the electrical isolation between the measuring circuit and the high-voltage impulse power supply, ensuring the safety of the rangefinder in the impulse voltage environment, without damage or crash.

Application
