FL-135 10-35kV cable preparation set

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview



Feature:

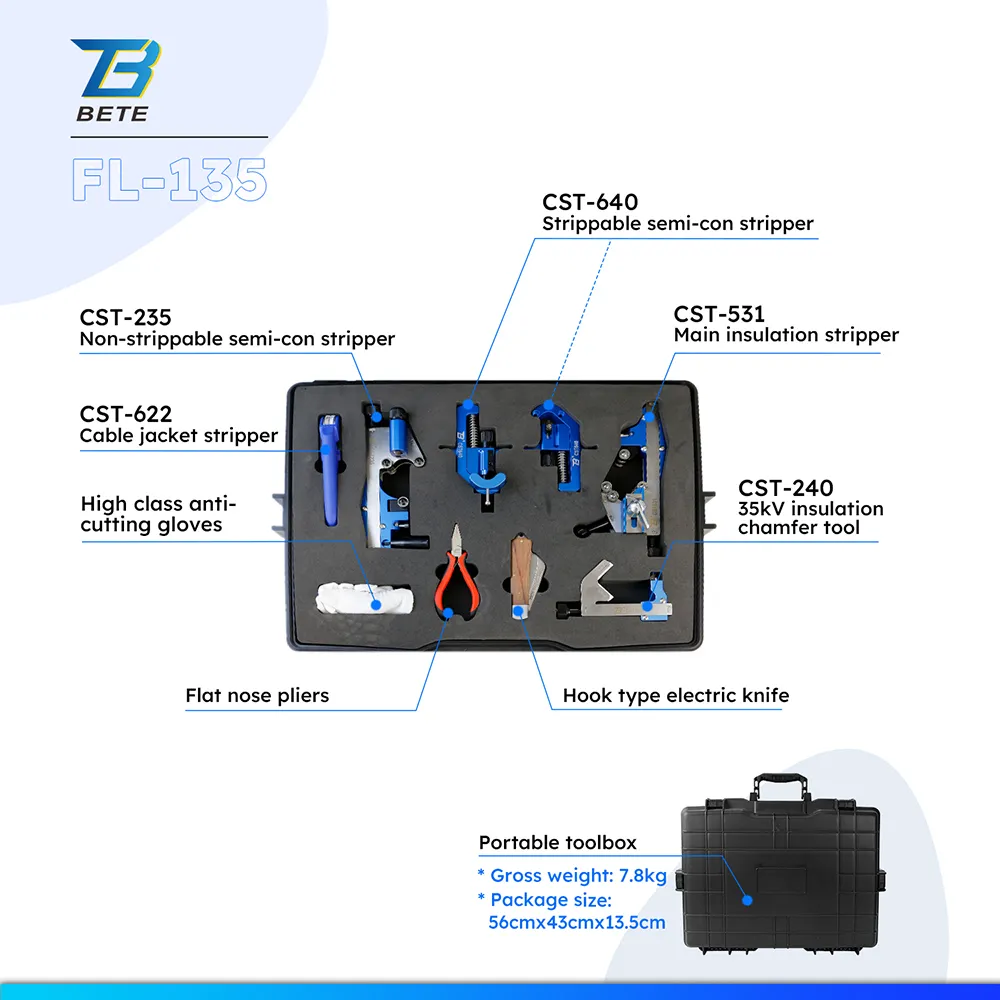

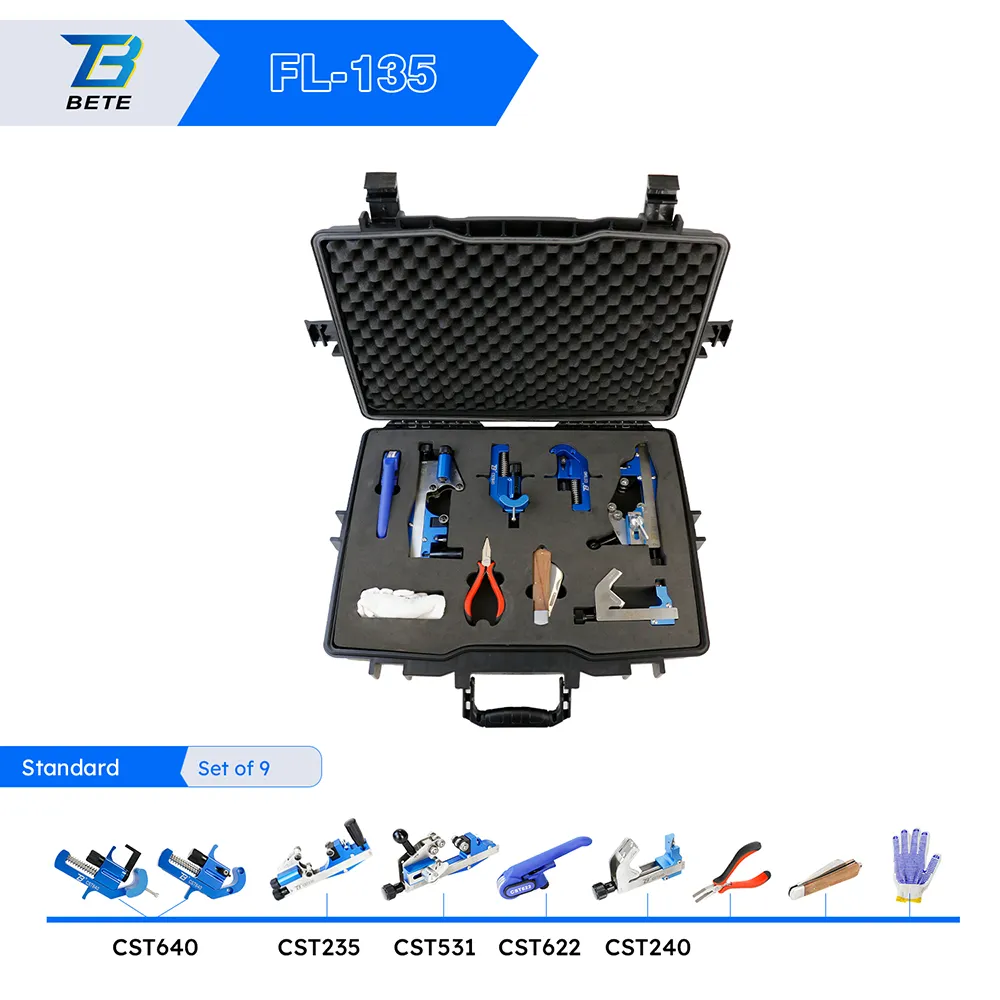

1. Portable toolbox

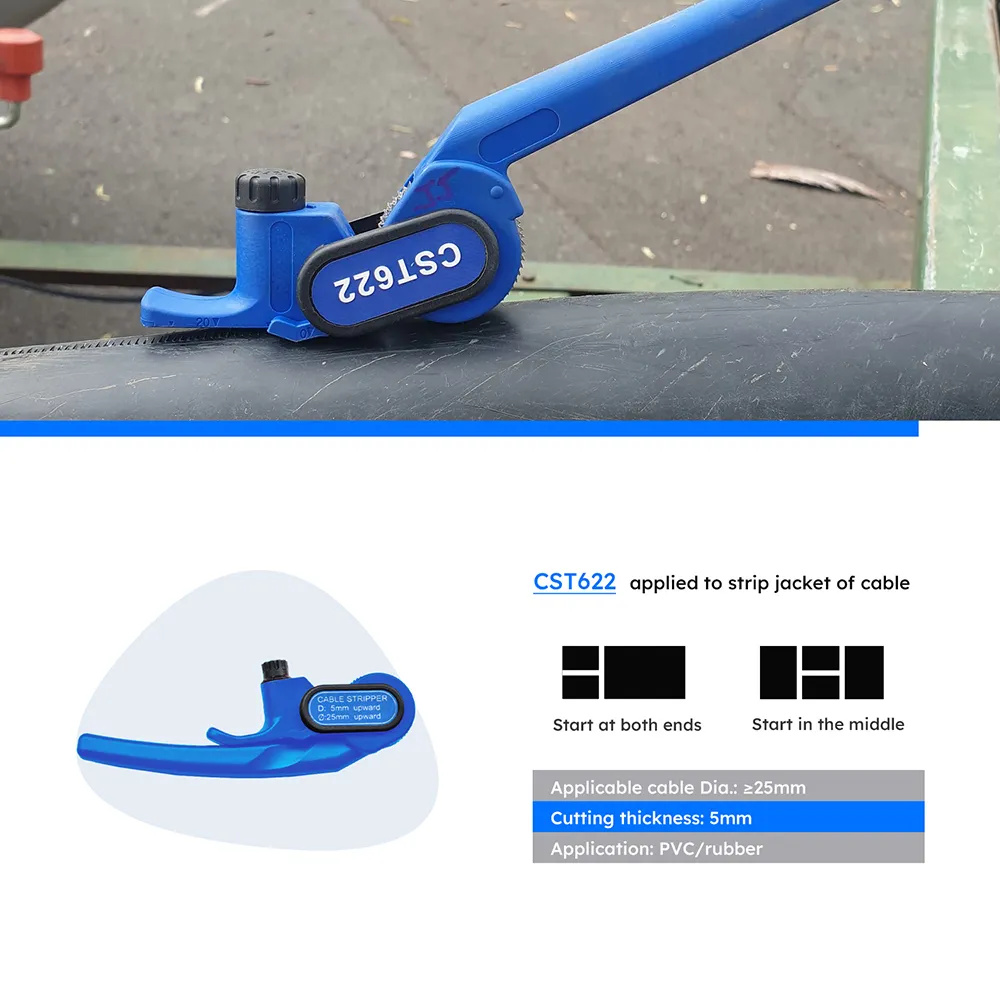

2. Jacket stripper, suitable for cable diameter: ≥25 mm, cutting thickness: 5mm
3. Strippable semi-con stripper, suitable for cable diameter: 16-41mm
4. Flat nose pliers for strippable semi-con
5. Non-strippable semi-con stripper, suitable for cable diameter: ≤220mm,
cutting depth: 0-1.5mm

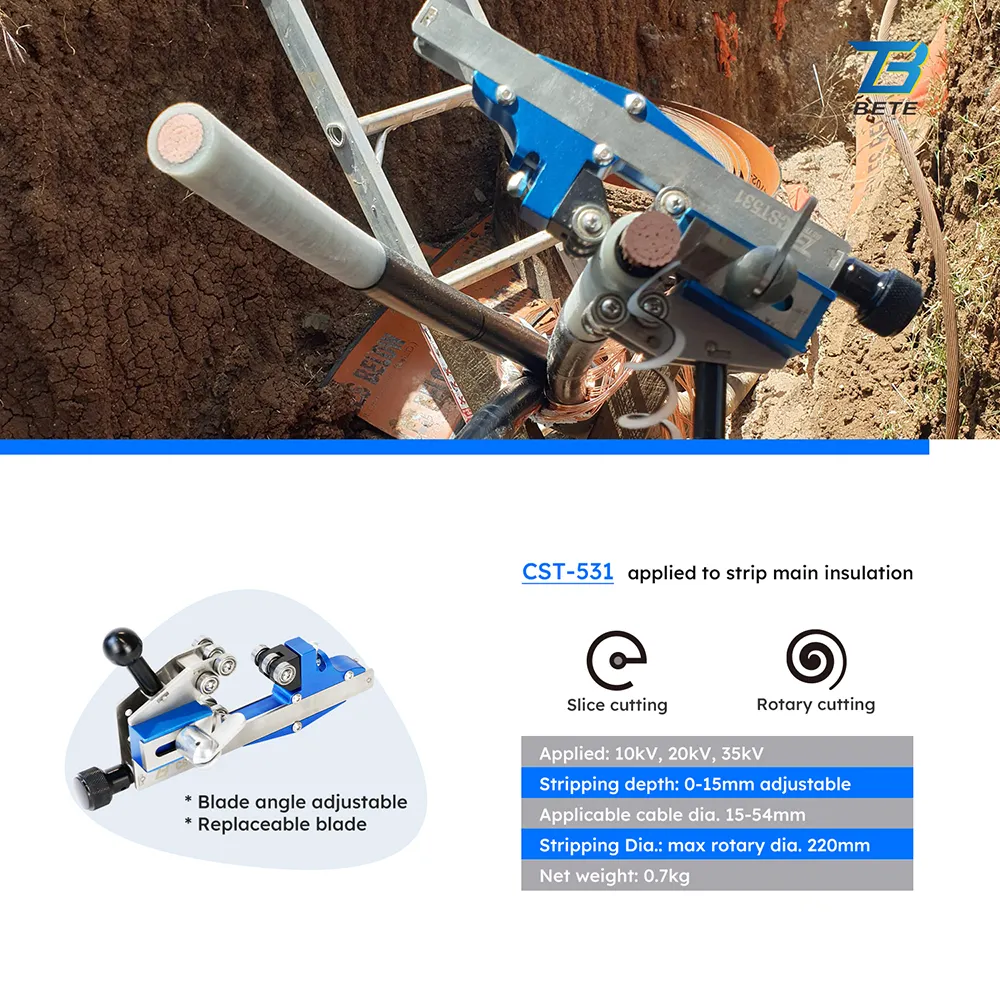

6. Main insulation stripper, suitable for cable diameter: ≤220mm
7. Insulation chamfer tool, rotation size: max 200mm
8. Hook type electric knife, material: steel 420, total length: 195mm, blade length: 60mm
9. High class anti-cutting gloves

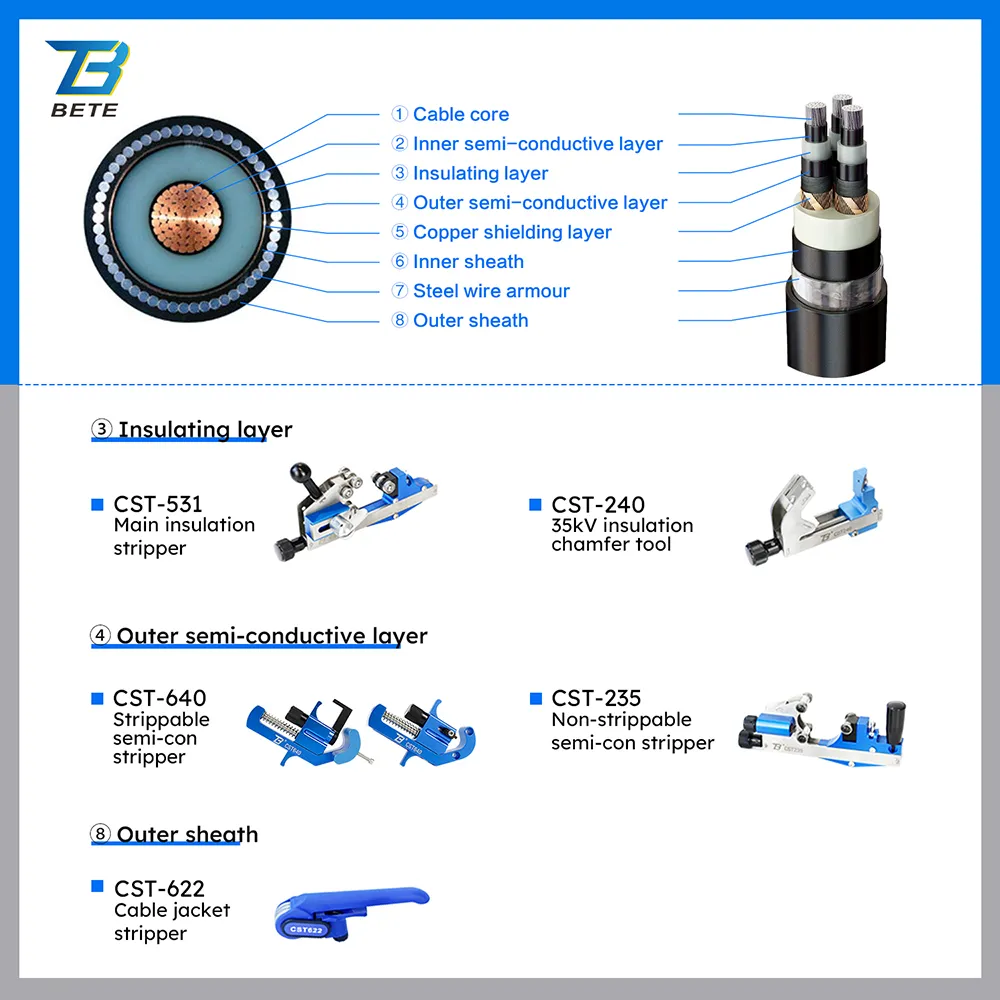

The FL series cable processing solution is a tool set designed to meet the requirements of improving work efficiency and ensuring work safety. It is most suitable for different construction occasions such as power transmission, live, distribution and maintenance operations. The entire design is integrated into a portable tool box. All tools are designed and produced according to the specifications and performance of the cable, providing a series of construction solutions such as cable sheath stripping, semi-conductive layer stripping, insulation stripping and insulation chamfering. The FL series cable processing solution is characterized by high flexibility, small size and strong functions, high productivity and work efficiency, easy and beautiful finished products, and no pollution or noise pollution to the working environment. This manual will help you complete the cable construction operation, making cumbersome steps into easy work and avoiding cable construction accidents.

Features
1. Portable toolbox
2. Jacket stripper, suitable for cable diameter: ≥25 mm, cutting thickness: 5mm
3. Strippable semi-con stripper, suitable for cable diameter: 16-41mm
4. Flat nose pliers for strippable semi-con
5. Non-strippable semi-con stripper, suitable for cable diameter: ≤220mm,
cutting depth: 0-1.5mm
6. Main insulation stripper, suitable for cable diameter: ≤220mm
7. Insulation chamfer tool, rotation size: max 200mm
8. Hook type electric knife, material: steel 420, total length: 195mm, blade length: 60mm
9. High class anti-cutting gloves



The FL series cable processing solution is a tool set designed to meet the requirements of improving work efficiency and ensuring work safety. It is most suitable for different construction occasions such as power transmission, live, distribution and maintenance operations. The entire design is integrated into a portable tool box. All tools are designed and produced according to the specifications and performance of the cable, providing a series of construction solutions such as cable sheath stripping, semi-conductive layer stripping, insulation stripping and insulation chamfering. The FL series cable processing solution is characterized by high flexibility, small size and strong functions, high productivity and work efficiency, easy and beautiful finished products, and no pollution or noise pollution to the working environment. This manual will help you complete the cable construction operation, making cumbersome steps into easy work and avoiding cable construction accidents.
