EVA Insulating Sleeves, Jackets & Trousers for Electrical Work
AHIP-SL / SLC / JK / PT Series
1.Reliable protection against electric shock in live working environments
2.Full-body coverage including shoulders, arms, torso, and legs
3.High-performance EVA material ensures strong insulation and flexibility
4.Lightweight and ergonomic design for improved comfort and mobility
5.Durable and suitable for repeated use in demanding electrical applications
Overview
 |
Insulation Class & Voltage Rating | ||
|
Class
|
AC Max Use Voltage
|
AC Proof Test Voltage
|
|
| 0 |
1 kV
|
5 kV/3 min
|
|
| 1 |
7.5 kV
|
10 kV/3 min
|
|
| 2 |
17 kV
|
20 kV/3 min
|
|
| 3 |
26.5 kV
|
30 kV/3 min
|
|
| 4 |
36 kV
|
40 kV/3 min
|
|
|
Note: There should be no breakdown, flashover or obvious heating during the power frequency withstand voltage test
|
|||
Different insulation classes correspond to different voltage levels. Users should select the appropriate class based on working conditions.
|
Size
|
S
|
M
|
L
|
XL
|
|
Height (cm)
|
165-175
|
170-180
|
175-185
|
185+
|
|
Weight (kg)
|
60
|
60-80
|
80-90
|
90-100
|
Please select the appropriate size to ensure both safety and comfort during operation.
Product Details

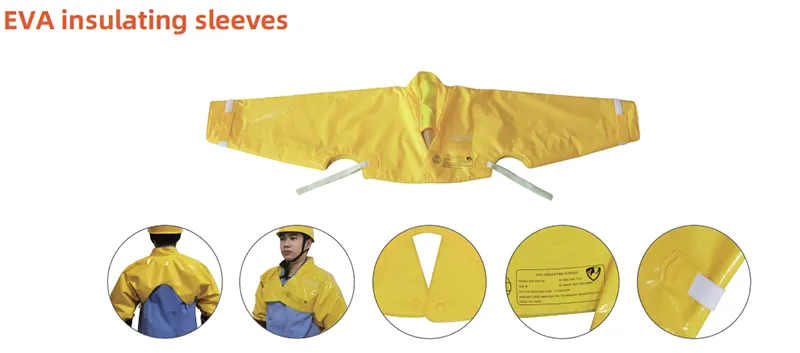

1.Model: AHIP-SL Series EVA Insulating Sleeves
 |
|
 |
 |
 |
 |
|
Features：
|
|
| Parameter | |||
|
Model
|
Size
|
Class Category
|
Voltage
|
|
AHIP-SL-2-S
|
S
|
Class 2
|
AC Proof Test Voltage : - 20 kV/3 min
AC Max Use Voltage :- 17 kV
|
|
AHIP-SL-2-M
|
M | ||
|
AHIP-SL-2-L
|
L | ||
|
AHIP-SL-2-XL
|
XL | ||
|
AHIP-SL-3-S
|
S
|
Class 3
|
AC Proof Test Voltage :- 30 kV/3 min
AC Max Use Voltage :- 26.5 kV
|
|
AHIP-SL-3-M
|
M | ||
|
AHIP-SL-3-L
|
L | ||
|
AHIP-SL-3-XL
|
XL | ||
2.Model: AHIP-SLC series EVA Insulating Collarless Sleeves
 |
|
 |
 |
|
Features：
|
|
| Parameter | |||
|
Model
|
Size
|
Class Category
|
Voltage
|
|
AHIP-SLC-2-S
|
S
|
Class 2
|
AC Proof Test Voltage :- 20 kV/3 min
AC Max Use Voltage :- 17 kV
|
|
AHIP-SLC-2-M
|
M | ||
|
AHIP-SLC-2-L
|
L | ||
|
AHIP-SLC-2-XL
|
XL | ||
|
AHIP-SLC-3-S
|
S
|
Class 3
|
AC Proof Test Voltage :- 30 kV/3 min
AC Max Use Voltage :- 26.5 kV
|
|
AHIP-SLC-3-M
|
M | ||
|
AHIP-SLC-3-L
|
L | ||
|
AHIP-SLC-3-XL
|
XL | ||
3.Model: AHIP-JK series EVA High Voltage Insulating Jacket
 |
|
 |
 |
|
Features：
|
|
| Parameter | |||
|
Model
|
Size
|
Class Category
|
Voltage
|
|
AHIP-JK-2-S
|
S
|
Class 2
|
AC Proof Test Voltage :- 20 kV/3 min
AC Max Use Voltage :- 17 kV
|
|
AHIP-JK-2-M
|
M | ||
|
AHIP-JK-2-L
|
L | ||
|
AHIP-JK-2-XL
|
XL | ||
|
AHIP-JK-3-S
|
S
|
Class 3
|
AC Proof Test Voltage :- 30 kV/3 min
AC Max Use Voltage :- 26.5 kV
|
|
AHIP-JK-3-M
|
M | ||
|
AHIP-JK-3-L
|
L | ||
|
AHIP-JK-3-XL
|
XL | ||
4.Model: AHIP-JK series EVA Low Voltage Insulating Jacket
 |
|
|
Features：
|
| Parameter | |||
|
Model
|
Size
|
Class Category
|
Voltage
|
|
AHIP-JK-0-S
|
S
|
Class 0
|
AC Proof Test Voltage :- 5 kV/3 min
AC Max Use Voltage :- 1 kV
|
|
AHIP-JK-0-M
|
M | ||
|
AHIP-JK-0-L
|
L | ||
|
AHIP-JK-0-XL
|
XL | ||
5.Model: AHIP-PT series EVA High Voltage Insulating Trousers
 |
|
 |
.webp) |
|
Features：
|
|
| Parameter | |||
|
Model
|
Size
|
Class Category
|
Voltage
|
|
AHIP-PT-2-S
|
S
|
Class 2
|
AC Proof Test Voltage :- 20 kV/3 min
AC Max Use Voltage :- 17 kV
|
|
AHIP-PT-2-M
|
M | ||
|
AHIP-PT-2-L
|
L | ||
|
AHIP-PT-2-XL
|
XL | ||
|
AHIP-PT-3-S
|
S
|
Class 3
|
AC Proof Test Voltage :- 30 kV/3 min
AC Max Use Voltage :- 26.5 kV
|
|
AHIP-PT-3-M
|
M | ||
|
AHIP-PT-3-L
|
L | ||
|
AHIP-PT-3-XL
|
XL | ||
6.Model: AHIP-PT series EVA Low Voltage Insulating Trousers
 |
|
|
Features：
|
| Parameter | |||
|
Model
|
Size
|
Class Category
|
Voltage
|
|
AHIP-PT-0-S
|
S
|
Class 0
|
AC Proof Test Voltage :- 5 kV/3 min
AC Max Use Voltage :- 1 kV
|
|
AHIP-PT-0-M
|
M | ||
|
AHIP-PT-0-L
|
L | ||
|
AHIP-PT-0-XL
|
XL | ||
